| Model | FD30 | |
| Capacity | kg | 3000 |
| Load center | mm | 500 |
| Lift height | mm | 3000 |
| Fork size(LxWxH) | mm | 1070*125*45 |
| Mast tilt angle(F/R) | Deg | 6°/12° |
| Length to face of fork | mm | 2730 |
| Overall width | mm | 1225 |
| Mast lowered height | mm | 2045 |
| Mast extended height | mm | 4150 |
| Overhead guard height | mm | 2090 |
| Turning radius | mm | 2440 |
| Min. right angle aisle width | mm | 2490 |
| Front overhang | mm | 475 |
| Ground clearance | mm | 135 |
| Wheelbase | mm | 1700 |
| Travel (no load) | km/h | 19 |
| Lifting (full load) | mm/s | 440 |
| Gradeability(laden) | % | 20 |
| Service weight | kg | 4300 |
| Front tire | 28x9-15-12PR | |
| Rear tire | 6.50-10-10PR | |
| Battery (voltage/capacity) | v/ah | (12V/80Ah) |
| Engine model | C490BPG-236 | |
| Engine rated output/r.p.m | kw | 40/2650 |
| Engine rated torque/r.p.m. | n.m | 160/1800-2000 |
| Engine No.of Cylinder | 4 | |
| Bore x stroke | mm | 90x105 |
| Displacement | cc | 2670 |
| Fuel tank capacity | L | 60 |

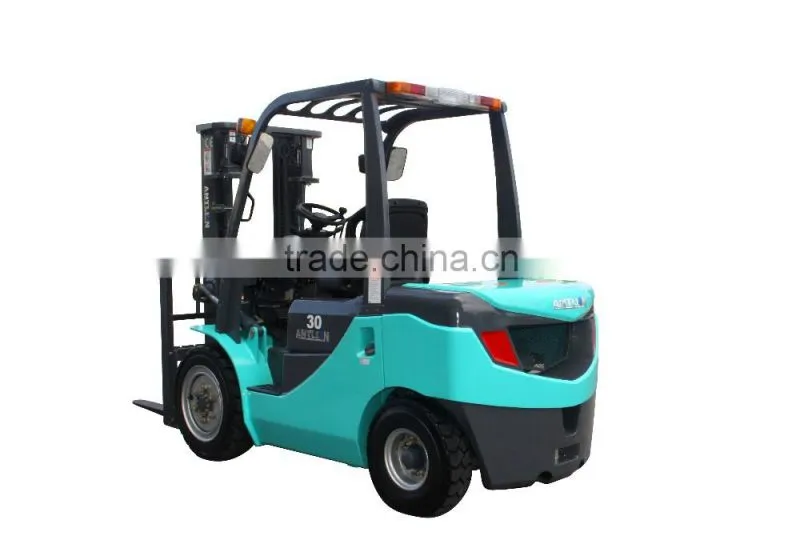

Small ton internal combustion forklift
Character:
- 1. Strong power system
- 2. Wide-view mast
- 3. Unique overhead guard design
- 4. Low non-slip pedal
- 5. Adjustable safety seat
- 6. Solid-state LCD digital meter
- 7. Eco-friendly design
- 8. Adjustable steering wheel
- 9. By a combination of advanced designs and technologies, goodsense forklifts with excellent quality and performance have become the designated essential equipment for domestic airports transportation and material handling.
one year warranty
Structure workshop
Precious cutting of various thickness of steels are ensured by applying one set of cutting machine, two sets of high-tech CNC plasma cutting machines and one set on NC flame cutting machine.
Assembly workshop
Several Welding Robots and O2C protection ensure and guarantee the welding requirements of structure components.
Respectively set up small ton, large ton and battery lift truck assemble lines ensure an yearly productivity of 20 units of a full range of forklift trucks.
Painting shop
High-performance ball blasting line ensures that all structural parts are perfectly processed before painting to obtain excellent adhesion of the paint and sheet-metal.
Three stoving vanish painting lines ensure an outstanding painting quality for the plants and the complete truck.
1. Do we provide after-sales service?
Yes, we provide.
2. How can you get after-sales service?
We can send our technicians to your country or we can contact in the internet about the problem of machine, then our technicians will tell you or your technician how to solve the problem.
