Specifications
1.PLC controller;2.CE , ISO 9001,FTA.CO certificate;
3. engineers available overseas;
4.High speed 180m/min;
5.since 1984;
Factory Supplier Dry laminating Machine Price
Main feature and performance
Factory Supplier Dry laminating Machine Price is used for PET, Nylon, CPP, CPE, Aluminum foil, paper and such roll base materials dry-type laminating process. The whole machine adopts Mitsubishi PLC control and man-machine interface operation.
1. Dip-coating width: 400-1000mm;
2. Dip-coating method: directly Anilox roll laminating;
3. Electric oven open method: Oven lid with air impulsion, make material-loading convenient.
4. Automatically counting meters when winding.
5. Pneumatic roller for unwinding and rewinding: 3” (diameter: 73mm);
6. .Power: 130kw
7. Overall size (L×W×H): 1300×2100×3500(mm);
8. Total weight: 12000kg.

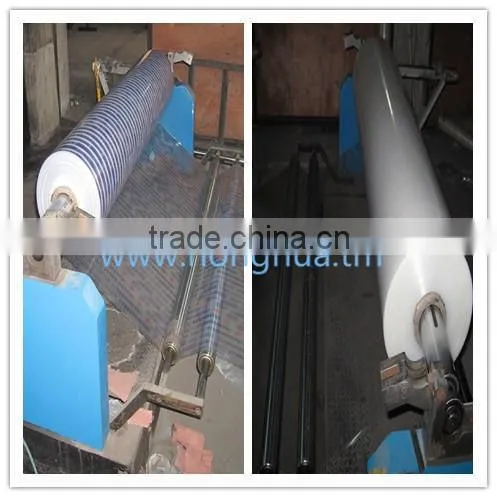

Part 1: Unwinding system
Max diameter of First unwinding |
φ1000mm |
Max diameter of Second unwinding |
φ600mm |
tension |
Controlled by inverter motor |
Roller change |
Manual |
Pneumatic roller for unwinding |
3” (diameter: φ73mm) |
Rectifying device(EPC)length |
±100mm |
Part 2: Coating glue system
Dip-coating width |
400-1000mm |
Dip-coating method |
directly Anilox roll laminating |
Machines’ design speed |
0-150m/min |
Line speed in the real production |
0-120m/min |
Part 3: Dry system
1.Electric oven, secondly use hot air, save energy, use independent piecewise constant temperature drying system, together with electric temperature Measuring device, control the temperature automatically, air in and out device can be adjusted ,high strength and totally be dried.
2.Electric oven open method: Oven lid with air impulsion, make material-loading convenient.
3. In the oven guiding roller with active control, the transmission of rollers adopts synchronous belt to link each other, use vector inverter control system, same step with main motor.
Part 4: Combine system
Winding type |
central type |
Max diameter |
1200mm |
tension |
Controlled by inverter motor |
Roller change |
Manual |
rectifying device(EPC)length |
±100mm |
Pneumatic roller for rewinding |
Pneumatic roller for rewinding |
Part 5: Sample pictures

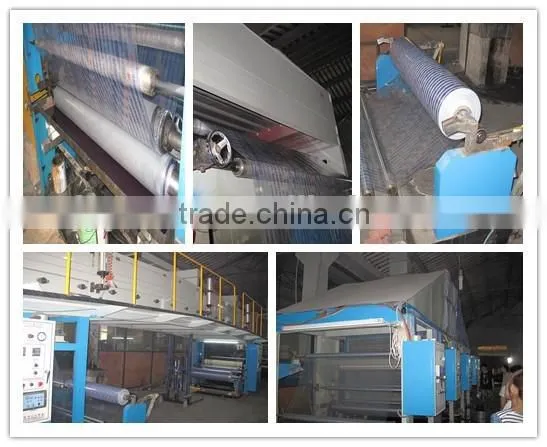

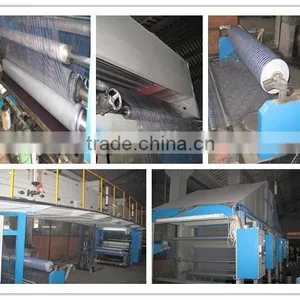

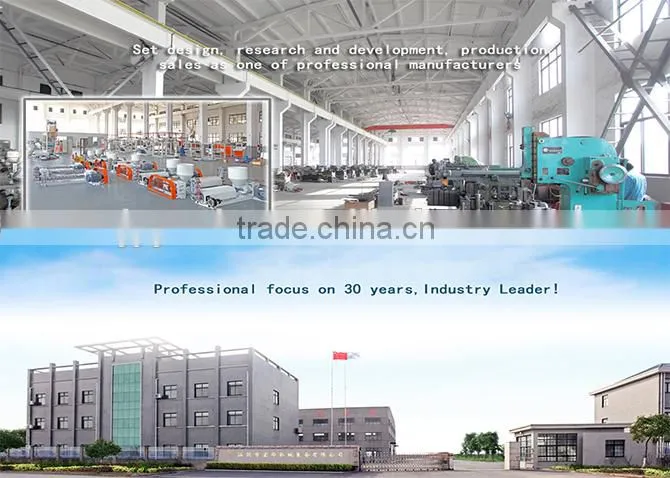

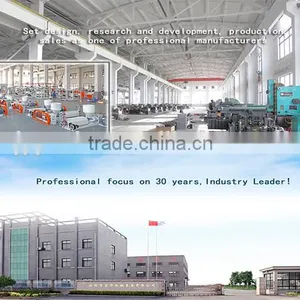

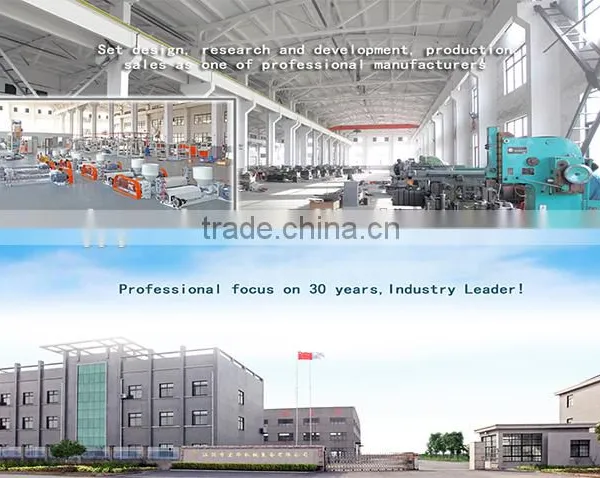

Part 6: Factory pictures
Part 7: With customers
Part 8: Certificates
Jiangyin City Yuzhe International Trading CO.,LTD
Jiangyin City Yuzhe International Trading CO., LTD., has 30 years of industrial experience. We are the leader of in the production of soft plastic package such as coating machine ,blowing and printing machine and act. we have independent import and export corporation and the factory entitled research , design and production .
Best service! Best quality! Best price!
