Specifications
1,Optimum design2,high efficiency
3,customizable design by customer drawings or requirement
Inoco filtration equipment always pay much attention to development in high technology to maintain the world-class quality. And we are the first one operation Project Management in filtration solutions in China. All our project managers are authorized by PMI with PMP certification.
Fast reply service,We established fast reply service center ,the final aim of our company is customer satisfactions.

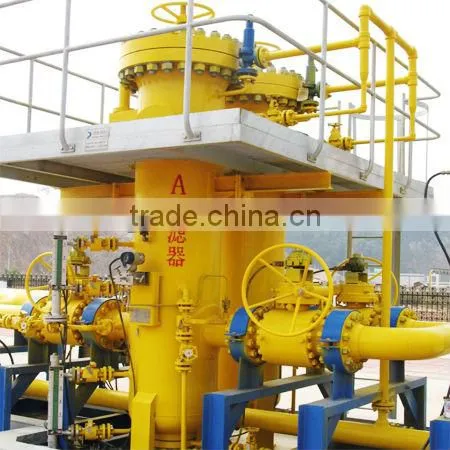

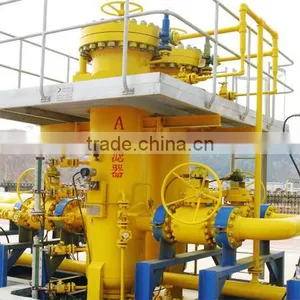

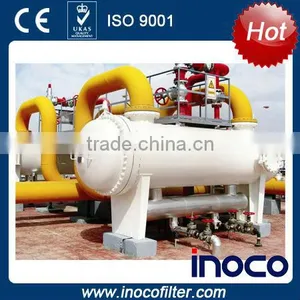

Dry gas filter housings can be used for filtering solid particles from gas. A plurality of cartridges are arranged inside and mounted in a horizontal or vertical container which is horizontally or vertically mounted in the device.
A quick-opening blind plate or blind flange which can be rapidly opened and closed is arranged at one end of the device to save cartridge replacing time.
Effective and accurate removal of solid impurities from gas, such as natural gas, to protect downstream equipments.
Unique sealing design to ensure sealing performance and rigidity of cartridges
Accurate pressure drop calculation to effectively reduce energy loss
Meticulous detailed design to improve convenience of operation and maintenance
High efficiency, accuracy and processing capacity<0}

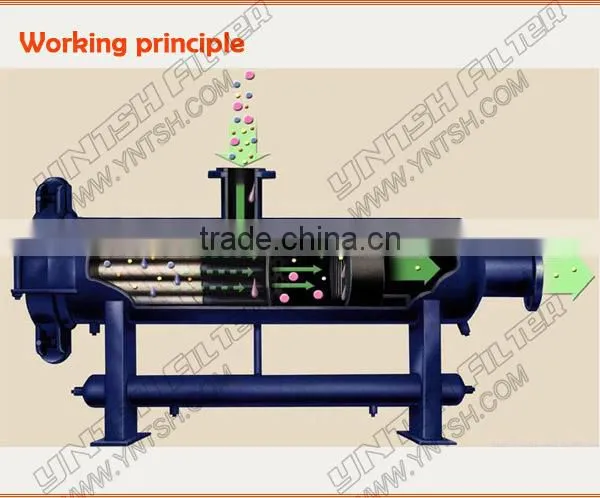

When gas flows into container, big and heavy solid particles drop into container and gas passes through cartridges inside the container. The small solid particles contained in gas are filtered by precision cartridge and then purified gas flows out of filter through outlet.
Dry gas filter can effectively protect instruments, valves, adjusting valves and other important
devices.
Technical parameters
Production standard: GB150 or ASME VIII-1
Container material: carbon steel, stainless steel
Cartridge material: ultramicro glass fibre, polyester, polypropylene, nylon, etc.
Filtering accuracy: 0.3, 0.5, 1.5, 10μm
Filtration efficiency: 98~99% for solid
Mounting mode: horizontal or vertical
Dry gas filters are widely used in petrochemical industries. It works on the exhaust stream to remove all solid impurities so as to protect critical instruments like valves and measuring instruments.
