Place of Origin Jiangsu, China
Brand Name Inoco
Model Number INOCO air filter housing
After-sales Service Provided Engineers available to service machinery overseas

1,INOCO-SGA-A series Compressed air filter air filter housing

Description >>
1 Extension current route to slow pressure drop

2 High grade aluminium-silicon and carbon-steel cartridge

3 Painted surface with epoxy resin for wear resistance and corrosion resistance

4 Screw threads structure at inlet and outlet for easy installation with air flow indication on the cartridge

5 Compact design for flexible troubleshooting

6 Exact pressure indicator to secure element replacement

7 Level indicator to monitor critical level for down stream pollution prevention

8 Reliable automatic drain

Assembly part >>

Linked direct differential pressure indicator

Aluminium die casting cap

Decompression hole

High efficient filter element

Aluminium silicon cartridger

Level indicator

Manual spherical ball valve

Automatic drain

INOCO air filter housing with CE certificate

1-2, Compressed air filter Product show

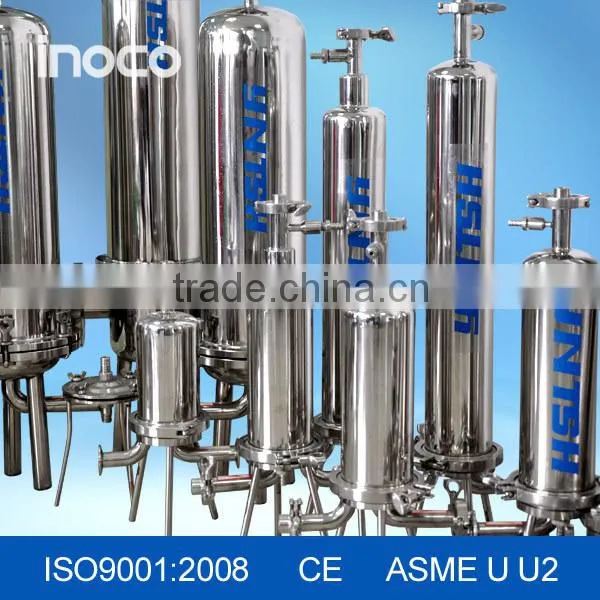

2,INOCO cartridge water filter

Description >>

INOCO has years experience of development and technology in membrane process, with the most advanced technology and production equipment, Inoco provides global customers all kinds of highly efficient, high quality of microporous membrane filter system.

Cartridge filters are effective in the removal of moderate amounts of particles from liquids in the size range of 50 to 0.035microns. When filtering large amounts of solids at high flow rates, other treatment methods such as self-cleaning multimedia filters may be required aspre-filters, followed by cartridge filtration, if needed.

The most popular micron sizes are the 5-micron general-purpose filter cartridge, and 0.2 submicron“Absolute” pleated filter cartridge for final filtration on high purity water systems.

2-1,INOCO cartridge water filter Specification



INOCO air filter housing with CE certificate





Rated capacity
(m3/min)		 Elements info Inlet/outlet Outer size (mm)
QTY L D(mm) Connection D W H H1 H2
1 1 5" DN25 Flange or clamp φ102 222 370   250
2 10" 510 370
4 20" DN40 760 610
6 3 10" DN50 Flange φ184 344 780 286 400
10 20" DN65 1050 296 640
15 5 φ234 414 1170 376 653
DN80
20 1210 391
DN100
30 7 φ274 454 1260 663
40 9 φ306 506 1330 415 685
DN125
60 12 φ356 556 1350 424 698
15
80 φ406 606 1410 710
19 DN150 1440 434
100 444
120 29 φ506 726 1560 468 735

3,INOCO-SGA-D series  high pressure gas filter

Description >>
The working pressure range of SGA-D series high pressure filter is 25-400 bar, and it is the most security and reliability record range. Compared with other products in filter industry, HS series high pressure filter provides considerable technical and economic advantages for high pressure operation system.

Material >>

Top shell: CS(optional 16 MnR III), SS(316 III)
Bottom shell: CS(optional 16 MnR III), SS(316 III)
Sealing: fluorine rubber
Connection: flange, thread, butt welding

Filter element >>

Polyester filter element, glass fiber filter element
Washable Stainless steel filter element
Filtration precision: 0.003 micron to 10 micron

3-1, high pressure gas filter  Specification



Filter model Max flow rate
m3/min @7bar		 Max working pressure barg Installation specification mm
A B C D E F G H
SGD-D-30 30 64 165 85 R1/4" 145 130 90 50 4 x M8
D-60 60 64 165 85 R3/8" 145 130 90 50 4 x M8
D-120 120 64 205 105 R1/2" 185 190 110 50 4 x M8
D-180 180 64 230 105 R3/4" 205 190 110 50 4 x M8
D-270 270 64 235 119 R1" 210 190 130 70 4 x M10
D-360 360 64 290 119 R1 1/4" 255 250 130 70 4 x M10
D-480 480 64 315 150 R1 1/2" 280 250 160 80 4 x M10
D-720 720 64 405 186 R2" 365 340 200 110 4 x M10

Filter model Max flow rate
m3/min @7bar		 Max working pressure barg Installation specification mm
A B C D E F G H
SGD-D-30 30 64 165 85 R1/4" 145 130 90 50 4 x M8
D-60 60 64 165 85 R3/8" 145 130 90 50 4 x M8
D-120 120 64 205 105 R1/2" 185 190 110 50 4 x M8
D-180 180 64 230 105 R3/4" 205 190 110 50 4 x M8
D-270 270 64 235 119 R1" 210 190 130 70 4 x M10
D-360 360 64 290 119 R1 1/4" 255 250 130 70 4 x M10
D-480 480 64 315 150 R1 1/2" 280 250 160 80 4 x M10
D-720 720 64 405 186 R2" 365 340 200 110 4 x M10

3-2, high pressure gas filter Product show

4, Inoco company capacity

Inoco provide a wide range of filter and filter system for oil production, processing; mining processing, liquefaction, transportation in natural gas industry around the world,used to remove pollutants in liquid or gas. With 18000 companies service experience in worldwide, leading filter laboratory, strong manufacturing capacity, we can provide you with excellent reliability and high performance products.
Inoco all gas filtration and separation products are available with ASME "U" seal "U2", we can also accept BureauVeritas, TUV third-party certification.

5, Related products

1. GAS FILTER
2. DRY GAS FILTER
3. GAS-LIQUID COALESCER FILTERS
4. WIRE MESH SEPARATOR
5. VANE SEPARATOR
6. CYCLONE SEPARATOR
7. COKE OVEN GAS FILTER
8. GAS CARTRIDGE FILTER
9. LARGE FLOW CARTRIDGE FILTER
10. COMPRESSED AIR FILTER

11. HIGH PRESSURE FILTER

12. CARTRIDGE DUST COLLECTOR

13. AERATION CONE

14. CERAMIC MEMBRANE DUST REMOVAL FILTER

15. ULTRA PURE GAS FILTRATION SEPARATION

16. GAS MEMBRANE SEPARATION DEVICE



For more details pls contact Inoco sales team.
