INOCO High Pressure Air Filter (Gas Filtration)

INOCO High Pressure Air Filter (Gas Filtration) thumbnail-1
INOCO High Pressure Air Filter (Gas Filtration) thumbnail-2
INOCO High Pressure Air Filter (Gas Filtration) thumbnail-3

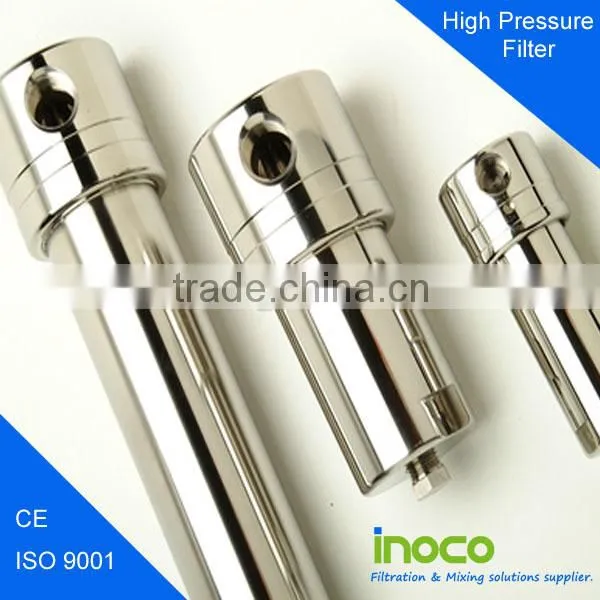

INOCO High Pressure Air Filter (Gas Filtration) photo-1

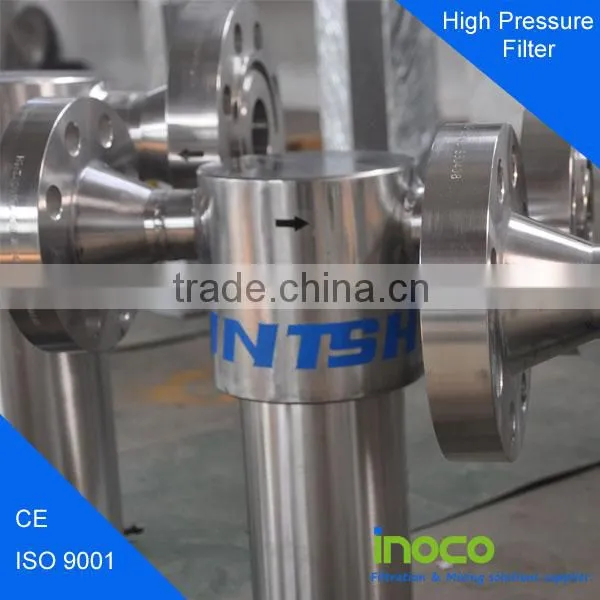

INOCO High Pressure Air Filter (Gas Filtration) photo-2

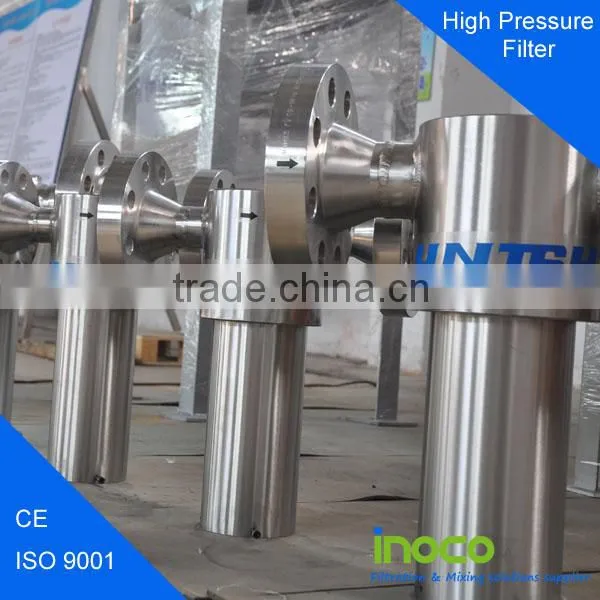

INOCO High Pressure Air Filter (Gas Filtration) photo-3
US$ 1 - 2 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
INOCO
Model Number:
high pressure filter
Contact Supplier Request Quote Chat Now
Wuxi Inoco Filtration Equipment Corp., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name INOCO
Model Number high pressure filter
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1,name: high pressure filter
2.Materials:Carbon steelSUS304SUS316SUS316L;
3.Pressure stages:2-40Mpa;
4.Connection:NPT

1,INOCO-SGA-D series high pressure air filter

Description >> The working pressure range of SGA-D series high pressure filter is 25-400 bar, and it is the most security and reliability record range. Compared with other products in filter industry, HS series high pressure filter provides considerable technical and economic advantages for high pressure operation system.

Material >>

Top shell: CS(optional 16 MnR III), SS(316 III) Bottom shell: CS(optional 16 MnR III), SS(316 III) Sealing: fluorine rubber Connection: flange, thread, butt welding

Filter element >>

Polyester filter element, glass fiber filter element Washable Stainless steel filter element Filtration precision: 0.003 micron to 10 micron



2, high pressure gas filter Specification



Filter model Max flow rate m3/min @7bar Max working pressure barg Installation specification mm
A B C D E F G H
SGD-D-30 30 64 165 85 R1/4" 145 130 90 50 4 x M8
D-60 60 64 165 85 R3/8" 145 130 90 50 4 x M8
D-120 120 64 205 105 R1/2" 185 190 110 50 4 x M8
D-180 180 64 230 105 R3/4" 205 190 110 50 4 x M8
D-270 270 64 235 119 R1" 210 190 130 70 4 x M10
D-360 360 64 290 119 R1 1/4" 255 250 130 70 4 x M10
D-480 480 64 315 150 R1 1/2" 280 250 160 80 4 x M10
D-720 720 64 405 186 R2" 365 340 200 110 4 x M10

Filter model Max flow rate m3/min @7bar Max working pressure barg Installation specification mm
A B C D E F G H
SGD-D-30 30 64 165 85 R1/4" 145 130 90 50 4 x M8
D-60 60 64 165 85 R3/8" 145 130 90 50 4 x M8
D-120 120 64 205 105 R1/2" 185 190 110 50 4 x M8
D-180 180 64 230 105 R3/4" 205 190 110 50 4 x M8
D-270 270 64 235 119 R1" 210 190 130 70 4 x M10
D-360 360 64 290 119 R1 1/4" 255 250 130 70 4 x M10
D-480 480 64 315 150 R1 1/2" 280 250 160 80 4 x M10
D-720 720 64 405 186 R2" 365 340 200 110 4 x M10

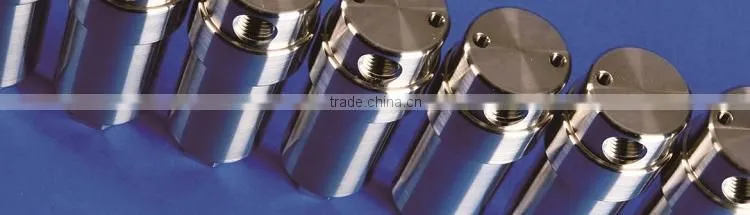

3, high pressure gas filter Product show







4, Inoco company capacity

Inoco provide a wide range of filter and filter system for oil production, processing; mining processing, liquefaction, transportation in natural gas industry around the world,used to remove pollutants in liquid or gas. With 18000 companies service experience in worldwide, leading filter laboratory, strong manufacturing capacity, we can provide you with excellent reliability and high performance products. Inoco all gas filtration and separation products are available with ASME "U" seal "U2", we can also accept BureauVeritas, TUV third-party certification.



5, Related products

1. GAS FILTER

2. DRY GAS FILTER

3. GAS-LIQUID COALESCER FILTERS

4. WIRE MESH SEPARATOR

5. VANE SEPARATOR

6. CYCLONE SEPARATOR

7. COKE OVEN GAS FILTER

8. GAS CARTRIDGE FILTER

9. LARGE FLOW CARTRIDGE FILTER

10. COMPRESSED AIR FILTER

11. HIGH PRESSURE FILTER

12. CARTRIDGE DUST COLLECTOR

13. AERATION CONE

14. CERAMIC MEMBRANE DUST REMOVAL FILTER

15. ULTRA PURE GAS FILTRATION SEPARATION

16. GAS MEMBRANE SEPARATION DEVICE

For more details pls contact Inoco sales team!
