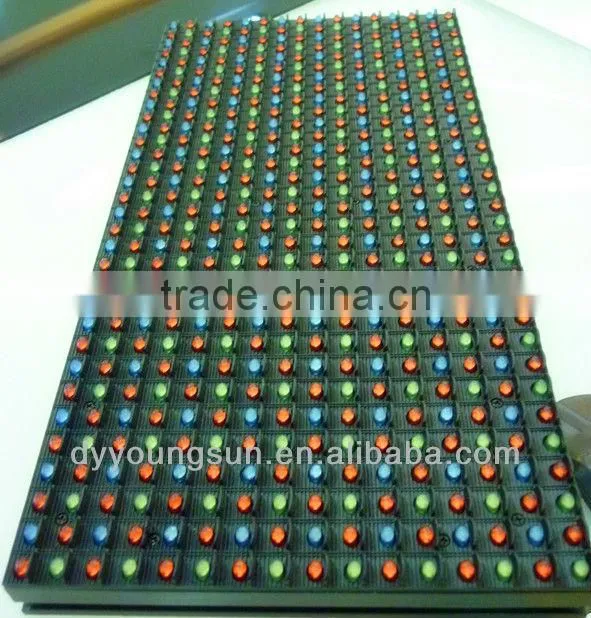

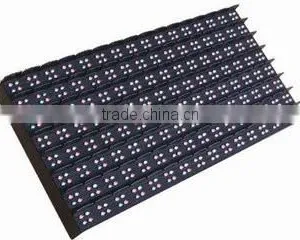

Good Price Outdoor Led Advertising Screen of P20 2R1G1B

US$ 10.16 - 10.98 MOQ: 1 Piece

Key Specifications

Model Number:

DY-P20

Emitting Color:

Tri-Color(Red-Blue-Green)

Place of Origin:

Guangdong, China

Dongguan Deying Photoelectric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Model Number DY-P20

Emitting Color Tri-Color(Red-Blue-Green)

Place of Origin Guangdong, China

Brand Name DY

Certification CE

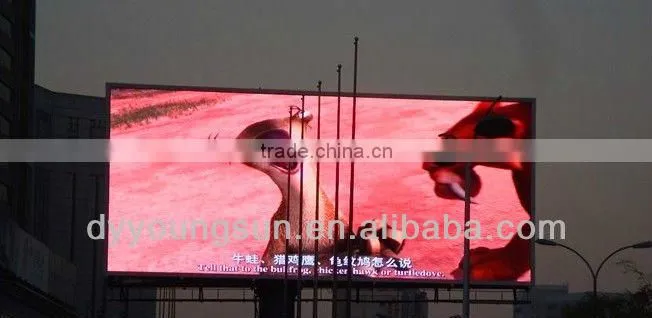

Good price outdoor led advertising screen of P20 2R1G1B

Technical Parameters

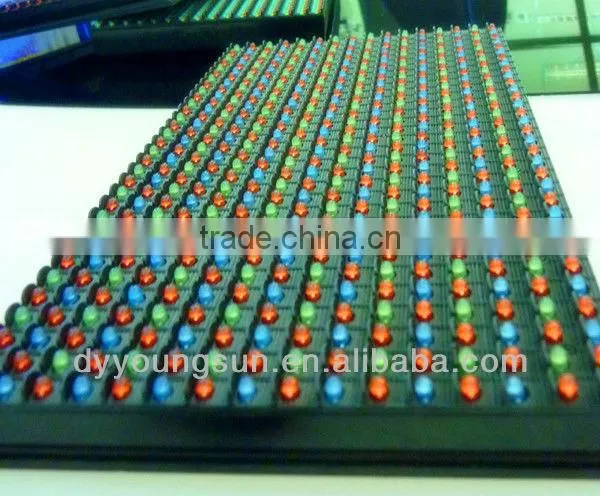

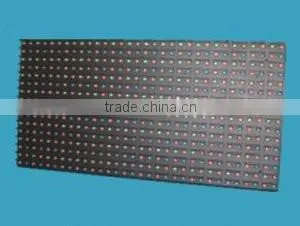

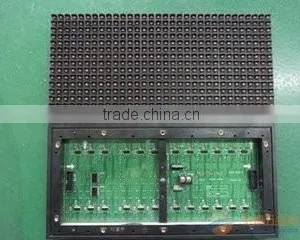

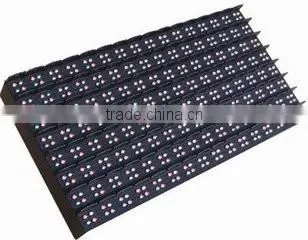

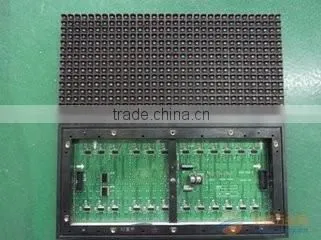

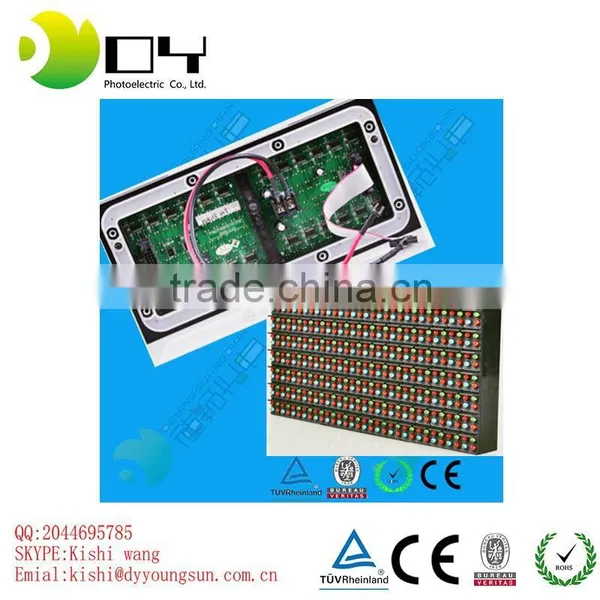

1. Module

Item No.	DY-P20
Working Environment	Outdoor
Pixel Pitch	20mm
Module Size	160X320mm
Physical Density	2500dots/sqm

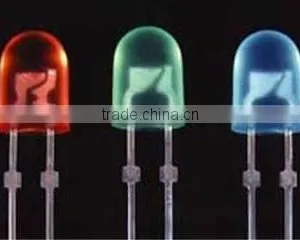

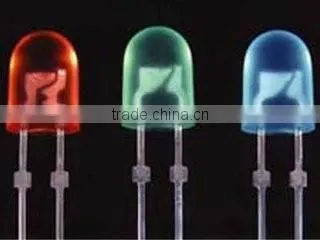

LED Encapsulation	DIP546
Module Resolution	8x16
Module Power	45W
Optimal Viewing Angle	≥20meters
Max Power Consumption/sqm	750W

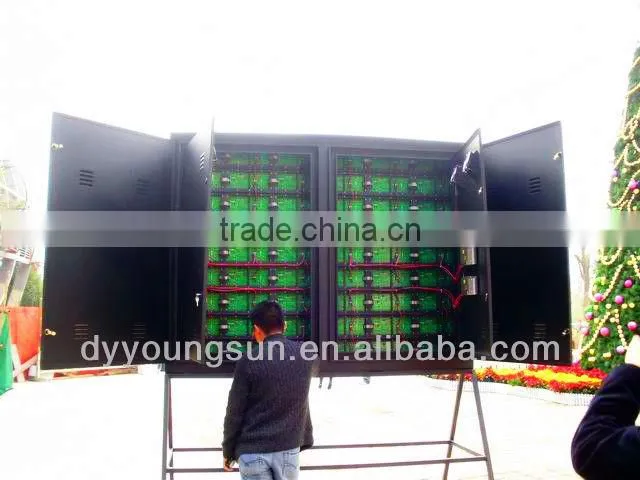

Cabinet Size	1280X960mm
Cabinet Resolution	64X48
Cabinet Weight	72KGS
Driving Mode	1/4 Scan Constant Current
Frame Frequency	60Hz/S
Refresh Ration	600Hz/s
Brightness of White Balance	7000 nits
Ambient Temp	-30 ~50°C
IP Rate	Front:IP65, Rear:IP43
Working Voltage	AC 110~220V±10%
Grey Scale	16.7million (synchronized)
Brightness Adjustness Method	256 Levels of each color(manual), 8 levels of each color (automatic)
Input Signal	RF,S-Video, RGB,RGBHV,YUV,YC&Composition.
Control System	PC TV non-linear editting card + DVI Display Card + main controller card + optic fiber transmission (optional)
MTBF	>5000Hrs
Life Span	>100000Hrs
Blind Spot Rate	<0.0001
