Help CenterSolid and Hollow Brick Making Machine for Red&clay Shale Fly Ash Materials
Related Products
-
JZ Series Brick Machine 2013 (clay Brick Making Machine)US$ 6,868 - 21,500MOQ: 1 Set -
We Are Here! Brick Machine FamilyUS$ 17,918 - 188,141MOQ: 1 Set
-
Clay Brick Making Machine(JKY\JKB Series)US$ 26,828 - 118,238MOQ: 1 Set
-
Vacuum Extruder (clay Brick Making Machine )US$ 51,660 - 188,141MOQ: 1 Set
-
Vacuum Extruder ( Hot Selling Vacuum Extruder in 2013 )US$ 21,100 - 214,900MOQ: 1 Set
Specifications
1.High quality steel,simple and compact structure,reasonable design2.Easy maintenance,lower energy consumption,high efficiency
Product introduce

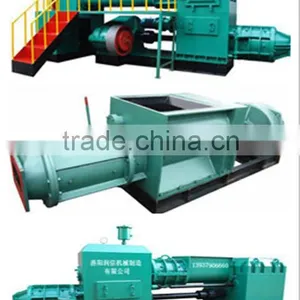

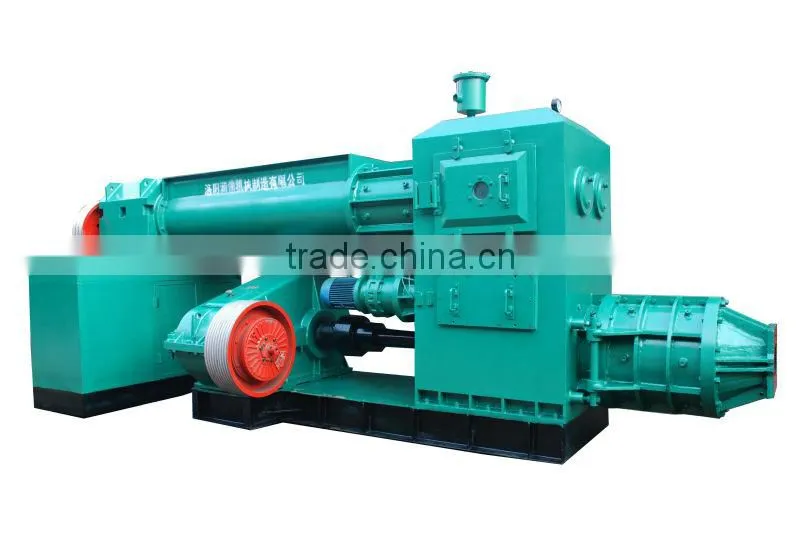

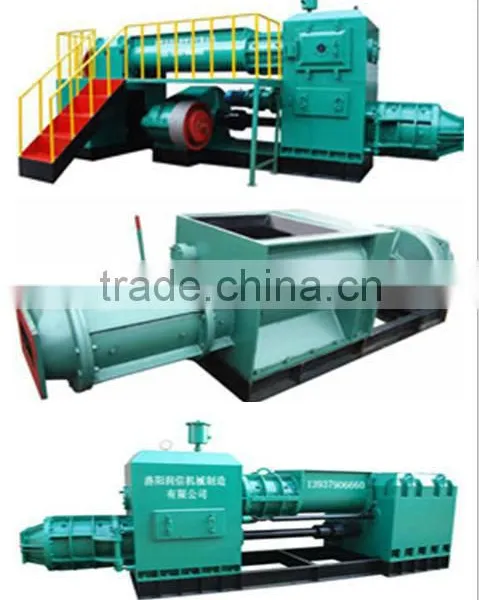

The JKY model,JKB model,JKR model are advanced twin-stagevacuum Brick Presses which draw lessons from the developed domestic, abroad experiences and design to make .They are mainly made of high quality steel with features of reasonable structure, sturdy and durability. And they have strong applicability, high efficiency, easy maintenance but lower energy consumption.
Materials used

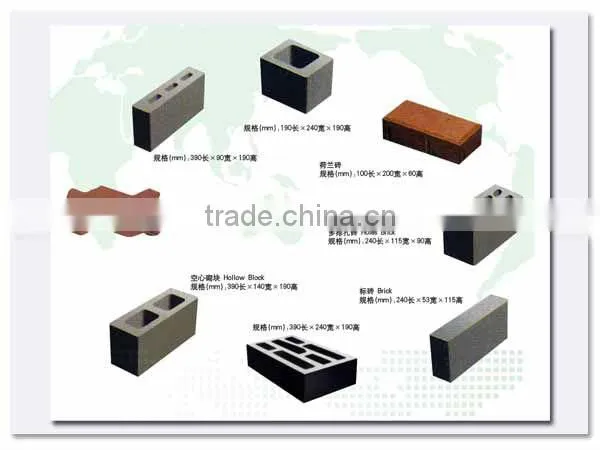

They are applicable for the production of high-rate hollow bricks with the materials of coal gangue, shale, high-volume fly-ash, urban construction waste, gangue waste, inferior soil.
Service between business
Along the business we have the professional engineer to service for you.Before business,we will make a configuration to you adopt to your actual situation.For example,the soil situation,the moisture of the local soil ,space for your factory,energy you using to fire brick and so on.After sale,we will supply technical support in the whole life of machine.
Producing line.
Product technical data
|
JKY60/60-3.8 |
JKY55/55-3.8 |
JKY50/50-3.8 |
JKB55/55-3.0 |
JKB50/50-3.0 |
JKR45/45-2.0 |
JKR40/40-2.0 |
JKR35/35-1.5 |
||||
Production capacity (standard brick packs/h) |
13000-15000 |
11000-13000 |
10000-12000 |
12000-14000 |
11000-13000 |
12000-14000 |
9000-12000 |
8000-11000 |
||||
Reamer diameter (mm) |
600 |
550 |
500 |
550 |
500 |
450 |
400 |
350 |
||||
Extruding pressure(MPA) |
3.8 |
3.8 |
3.8 |
3.0 |
3.0 |
2.0 |
2.0 |
1.0-2.0 |
||||
Forming liquid water content (%) |
14~16 |
14~16 |
14~16 |
16~18 |
16~18 |
18~22 |
18~22 |
18~22 |
||||
Vacuum (MPA) |
≤-0.092 |
≤-0.092 |
≤-0.092 |
≤-0.092 |
≤-0.092 |
≤-0.092 |
≤-0.092 |
≤-0.092 |
||||
Power (KW) |
75/200 |
75/160 |
55/132 |
55/132 |
55/110 |
45/90 |
45/75 |
37/55 |
Product quality certification
