Specifications
low cost air pressure sensor1 professional manufacturer
2 quick shipment
3 CE certification

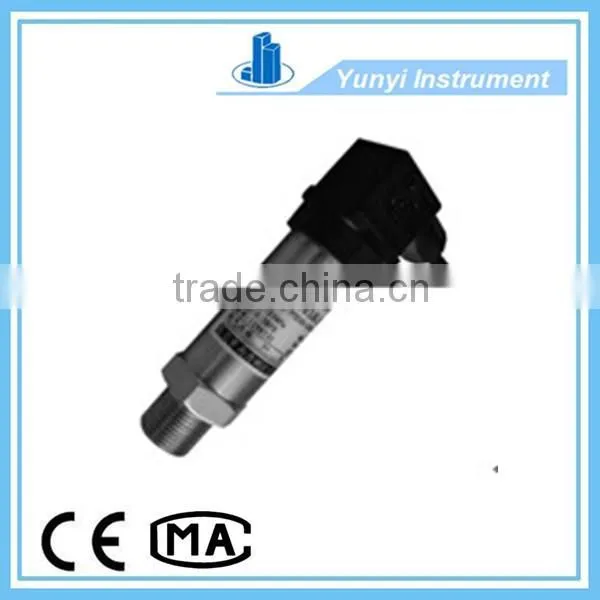

low cost air pressure sensor
Description:
Integral component of stainless steel, elastomer original imported high-precision strain gauge and advanced technology, with high sensitivity, stable performance, good impact resistance. 316 stainless steel welded closed, the pressure sensor LED display comes with three and a half, while the output analog signals to the back-end control mechanism to pressure signal sampling, compact, compact, good moisture resistance and excellent media compatibility.
Technical indicators:
1Range: -0.1 ~ 0 ~ 1 ~ 150 (MPa)
2Comprehensive Accuracy: 0.25% FS, 0.5% FS, 1.0% FS
3Output signal: 4 ~ 20mA (two wire), 0 ~ 5V, 1 ~ 5V, 0 ~ 10V (three-wire)
4Site display: LED three half 0000 - 1999
5Supply voltage: 24DCV (9 ~ 36DCV)
6Medium temperature: -20 ~ 85 ~ 150 °C
7Ambient temperature: room temperature (-20 ~ 85 °C)
8Load Resistance: Current Output: Maximum 800Ω; Voltage output: more than 50KΩ
9Insulation resistance: more than 2000MΩ (100VDC)
10Sealing Rating: IP65
11Long-term stability: 0.1% FS / Year
12Vibration: Mechanical vibration frequency within 20Hz ~ 1000Hz, output changes less than 0.1% FS
13Electrical connection: Hirschmann connector
14Threaded connection: M20 × 1.5, etc., other threads can be designed according to customer requirements
15Dimensions: M20 × Φ26.5 × 175
Measuring media: Weak corrosive liquid; weak corrosive gases.

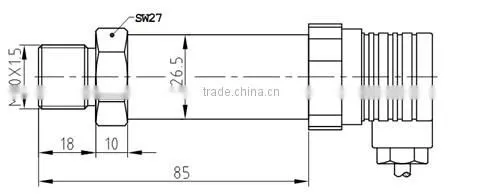

Product Dimensions:
About Us:
Xi'an Yunyi Instrument Co., Ltd. is a professional manufacturer that engaged in the fields of pressure measurement instrument, the chief engineer Mr Tian has more than 30 years on this area, he is one of the engineers who introduced the Rosemount technology. We specializing in developing high precision pressure transmitter and pressure gauges. And we also develop temperature transmitter, level transmitter, densitometer etc. They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
