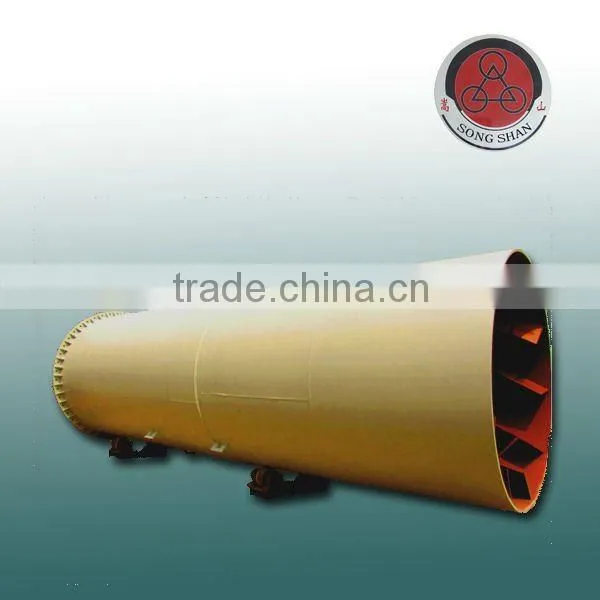

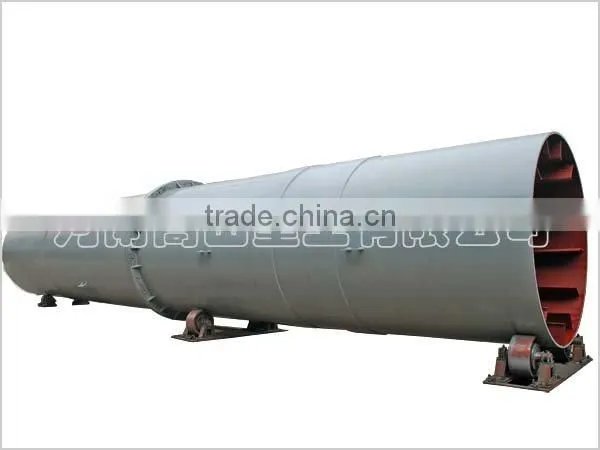

1.Rotary dryer description
Rotary Dryer is mainly used for materials with certain humidity or granularities in the field of beneficiation,building materials,metallurgy,etc. It has been widely used due to its great adaptability towards various raw materials,simple structure and reliability.Beneficiation rotary dryer is widely used in building materials, mineral dressing, metallurgy, chemical industry and cement industry, which is widely used to dry the stuff such as limestone, coal powder, slag and clay.Dry materials with certain humidity and granularity in mineral dressing, metallurgy, cement industry, chemical industry, etc.
2.Working principle of rotary dryer
Its principle of operation: the raw material plate which is arranged reasonably with changeable angles in order, throws moisture materials into the rotary cylinder. Then water will be separated from the materials by hot air-flow and changed into vapour to be discharged into the atmosphere. Then the materials would be dried.
3. Technical Parameter:
Model |
Size of cylinder |
rotate speed (r/min) |
Power (kw) |
Weight (kg) |
||
Diameter(mm) |
Length(mm) |
angle of inclination(%) |
||||
HG1012.00 |
1000 |
12000 |
5 |
6.2 |
7.5 |
13236 |
HG1212.00 |
1200 |
12000 |
5 |
5.99 |
11 |
15756 |
HG1512.00 |
1500 |
12000 |
5 |
4.02 |
15 |
17430 |
HG1814.00 |
1800 |
14000 |
5 |
4.59 |
18.5 |
27263 |
HG2014.00 |
2000 |
14000 |
5 |
4.59 |
18.5 |
31688 |
HG2214.00 |
2200 |
14000 |
5 |
4.59 |
22 |
37431 |
HG2414.00 |
2400 |
14000 |
5 |
3.6 |
30 |
46197 |
HG2818.00 |
2800 |
18000 |
5 |
3.12 |
45 |
89332 |
HG3020.00 |
3000 |
20000 |
5 |
3.67 |
55 |
95505 |
HG3222.00 |
3200 |
22000 |
5 |
3.4 |
75 |
141627 |
HG3624.00 |
3600 |
24000 |
5 |
3.1 |
110 |
188627 |
JHG1214.00 |
1200 |
14000 |
5 |
5.99 |
11 |
17382 |
JHG1816.00 |
1800 |
16000 |
5 |
5.48 |
22 |
39587 |
JHG2016.00 |
2000 |
16000 |
5 |
4.59 |
30 |
61912 |
JHG2227.00 |
2200 |
27000 |
5 |
4.58 |
37 |
79263 |
JHG2418.00 |
2400 |
18000 |
5 |
3.12 |
37 |
66735 |
Please don’t hesitate to inform us:
1.What’s kind of your raw material? And the ore TEST REPORT?
2. Now your raw stone size?
3. What’s the capacity ? (T/H)
4. What’s the final ore concentrate grade request?
5. Others?
If possible,please send us some ore sample, we will do a test for you.
Before sales service:
Provide the program design and technological flow design; choose the most suitable equipment for customer;
design and manufacture products according to customer's demands; provide training of operational technicians
for customer.
Sales service:
Finish the equipment inspection with you; assist you in drawing out the construction scheme and detailed flow.
After sales service:
Send technicians to installation site for the guidance, equipment adjustment and training.
