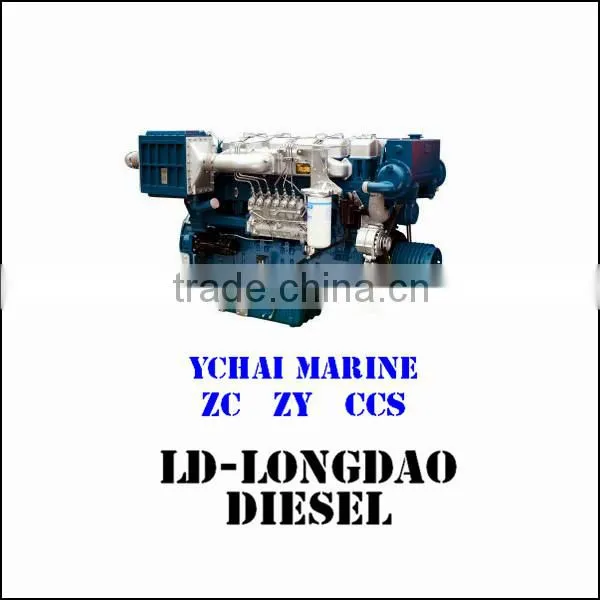

CCS Certificate Cargo Fishing Boat Marine Engine 450HP
a) Well perform in 20000 hours reliability test and the most demanding requirements on
temperature compact.
b) Our world-class foundry and machining factory guarantee the excellent quality and reliability.
c) Alloy cast iron engine block, forged steel crankshaft and high-strength alloy connecting rod
increase strength.
d) The improvement of piston cooling system reduces the piston temperature and oil consumption
e) Water cooling exhaust pipe reduces engine room temperature
Model |
YC6T330C |
YC6T375C |
YC6T300C |
YC6T410C |
YC6T450C |
YC6T350C |
||||||||
Type |
Vertical, in-line, water-cooled, four stroke |
|||||||||||||
Intake way |
Turbo charging& inter-cooled |
|||||||||||||
Cylinders - Bore × Stroke(mm) |
6-145×165 |
|||||||||||||
Displacement(L) |
16.35 |
|||||||||||||
Compression ratio |
15.5:1 |
|||||||||||||
Prime Power (kW(Ps)/r/min) |
242(330)/1500 |
275(375)/1500 |
220(300)/1200 |
300(410)/1500 |
330(450)/1500 |
257(350)/1200 |
||||||||
Standby Power (kW(Ps)/r/min) |
266.2(360)/1548 |
302.5(415)/1548 |
242(330)/1239 |
330(450)/1548 |
363(495)/1548 |
282(380)/1239 |
||||||||
Min fuel consumption(g/kW•h) |
195 |
|||||||||||||
Specific oil consumption(g/kW•h) |
≤1.0 |
|||||||||||||
Engine oil capacity(L) |
52 |
|||||||||||||
Crankshaft rotation direction |
(see from power output end) Anticlockwise |
|||||||||||||
Starting way |
Electrical |
|||||||||||||
Net weight(kg) |
1980 |
|||||||||||||
Overall dimensions (LxWxH) (mm) |
1880×1000×1860 |
|||||||||||||
Model |
YC6T390C |
YC6T420C |
YC6T480C |
YC6T510C |
YC6T540C |
|||||||||
Type |
Vertical, in-line, water-cooled, four stroke |
|||||||||||||
Intake way |
Turbo charging& inter-cooled |
|||||||||||||
Cylinders - Bore × Stroke(mm) |
6-145×165 |
|||||||||||||
Displacement(L) |
16.35 |
|||||||||||||
Compression ratio |
15.5:1 |
|||||||||||||
Prime Power (kW(Ps)/r/min) |
287(390)/1800 |
308(420)/1800 |
352(480)/1800 |
375(510)/1800 |
396(540)/1800 |
|||||||||
Standby Power (kW(Ps)/r/min) |
315(429)/1858 |
338(462)/1858 |
387(528)/858 |
412(561)/1858 |
435(594)/1858 |
|||||||||
Min fuel consumption(g/kW•h) |
195 |
|||||||||||||
Specific oil consumption(g/kW•h) |
≤1.0 |
|||||||||||||
Engine oil capacity(L) |
52 |
|||||||||||||
Crankshaft rotation direction |
(see from power output end) Anticlockwise |
|||||||||||||
Starting way |
Electrical |
|||||||||||||
Net weight(kg) |
1980 |
|||||||||||||
Overall dimensions (LxWxH) (mm) |
1880×1000×1860 |
|||||||||||||
