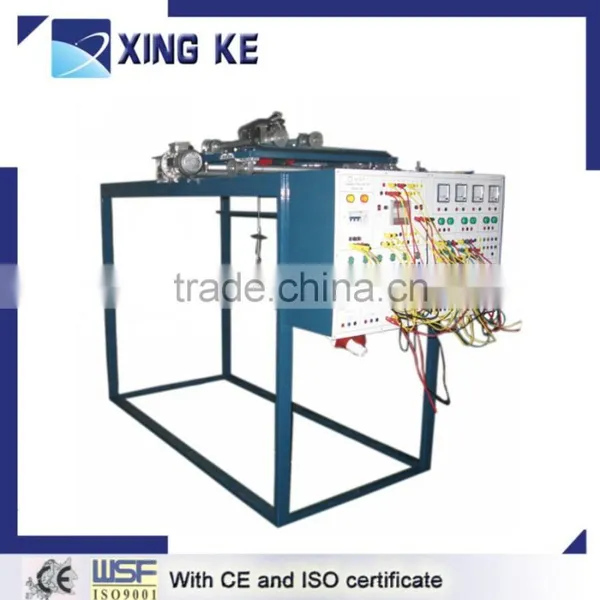

XK-OCT1 Overhead Crane With PLC Training Equipment

XK-OCT1 Overhead Crane With PLC Training Equipment thumbnail-1
XK-OCT1 Overhead Crane With PLC Training Equipment photo-1
US$ 100 - 8,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
XingKe
Model Number:
XK-OCT1
Contact Supplier Request Quote Chat Now
Shandong Xingke Intelligent Technology Co., Ltd.
Gold Verified Supplier
6Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name XingKe
Model Number XK-OCT1

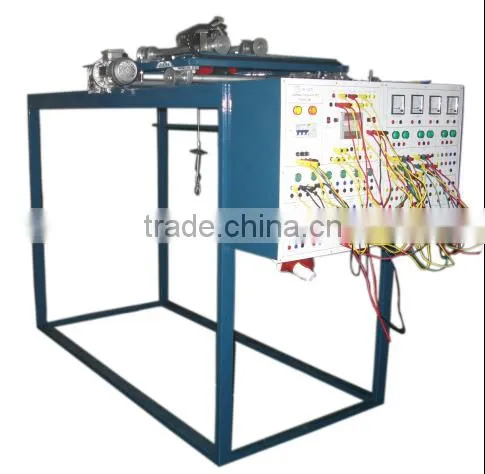

XK-OCT1 Overhead Crane with PLC Training Equipment

          XK-OCT1 Overhead Crane with PLC Training Equipment



1.Product overview

   XK-OCT1 overhead crane training device consults function of actual 20/5T type overhead travelling crane and is designed by narrowed fixed size proportion. It is mainly divided into three parts as mechanical structure, electrical structure and metal structure. Mechanical part: consists of cart running mechanism, trolley running mechanism and hoisting mechanism. It contains: motor,

electric hoist, reducer, wheel gear, transmission shaft and cartwheel, etc..Metal structure: mainly consists of bridge(girder,

end girder, cart track, trolley track), large car frame, trolley frame and control box. Electrical structure: consists of electrical equipment and electrical circuit. It contains: power plant of overhead crane and control system of starting, speed regulation,

reversing and stopping of each mechanism.

The operation to the electrical part of the device ,can implement various kinds of movement control of 20/5T type overhead travelling crane, It contains: lifting hook’s hoisting and descending, left and right movement of cart, fore and aft movement of trolley, electrical limit protection of cart movement, electrical limit protection of trolley movement ,ultimate limit protection of cart movement, ultimate limit protection of trolley movement and ultimate limit protection of lifting hook’s hoisting. The device is equipped with AB PLC, can be used for carrying out the automatic operation control of the crane.

XK-OCT1 overhead crane training device organically connects the machine’s electrical part and mechanical part together and the movement of the overhead crane has being all showed up and thus make the teaching and learning more lively. The device is fit for training and evaluating which related to machine’s electrical part in primary, intermediate and advanced skill testing of the maintenance electrician and it is also suits to programmable controllers’control training of electrical automation and mechatronics related majors.

2. Main technical parameters

  2.1.Power supply: three-phase four-wire(380V±10%50Hz)

  2.2Working environment:

        Temperature:-10°C~+40°C,relatively humidity<85%(25°C),height<4000m

  2.3.Device volume:<1000VA

  2.4.leakage protection action current:≤30mA;Leakage protection action time:≤0.1s

  2.5.Size of control pannel:1000×600mm

  2.6.Devie dimension:2400×1000×2000mm

  2.7.Cart route:1320mm

  2.8.Trolley route:432mm

  2.9.Three-phase asynchronous motor(drive cart):voltage:380v,power:180w,rotate speed:1400r/m, reduction ration:1:60

  2.10.Electric hoist:voltage:220v,rated lifting weight:220KG,length of rope:12m

Power:510w

  2.11. Three-phase deceleration motor(drive trolley):voltage:380v,power:120w

   rotate speed:1500r/m, reduction ration:1:300

3. Training project

  3.1. Familiar with the structure and principle of common low-voltage instruments

  3.2.Understand the actual action of the overhead crane by watching the overhead crane’s movement

  3.3. Connecting training of three-phase motor’s positive and negative rotary running control

  3.4. Connecting training of single-phase motor’s(electric hoist) positive and negative rotary running control

  3.5. Circuit designing and connecting training of electrical control self-locking and inter-locking

  3.6.AB PLC programming training
