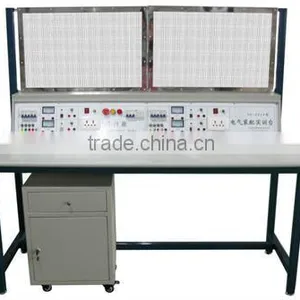

XK-SX5A Electrical Wiring and Assembly Technology Trainer (Double Station),Didactic Equipment for School Science Lab thumbnail-1

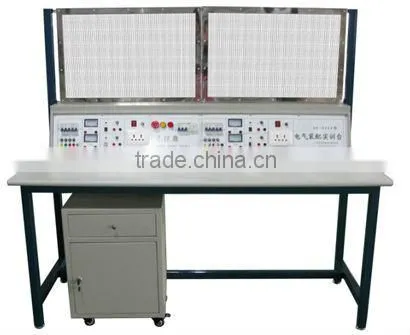

XK-SX5A Electrical Wiring and Assembly Technology Trainer (Double Station),Didactic Equipment for School Science Lab photo-1
US$ 100 - 4,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
XINGKE
Model Number:
XK-SX5A
Contact Supplier Request Quote Chat Now
Shandong Xingke Intelligent Technology Co., Ltd.
Gold Verified Supplier
6Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name XINGKE
Model Number XK-SX5A

Specifications

1.wiring and assembly trainer
2.didactic equipment
3.school science lab equipment
4.ISO,CE and OEM factory

          XK-SX5A Electrical Wiring and Assembly Technology Trainer (Double station),Didactic Equipment for School Science Lab



1. Product Introduction

XK-SX5A Electrical Wiring and Assembly Technology Trainer (Double station),Didactic Equipment for School Science Lab  mainly completes the control circuit training of lighting circuit and three-phase asynchronous motor. XK-SX5A mainly composed by training desk and mesh board. Training bench offers AC power source, DC power source; Power source part offers protection circuit of short circuit, over current, leakage, safety and reliable.

Training bench adopts the steel structure, bench main structure is made by steel pipe spraying plastics structure, desktop is made of high density board which is fire prevention, waterproof and wear-resistant;

XK-SX5A is double working stations, supply two pieces of electrician training mesh boards, two sets of standard power source, so can allow two students working at same time. The power sources are independent, students finish the components displacement and installation as the training requirement, the wiring trainings are completely finished by students.

2. Experiment Bench Technology Parameter:

2.1 Product Size: 1530mm × 700mm × 1700mm

2.2 Power Supply: AC380V±10%, 50Hz, three phase four wires system

2.3 Three phase power supply main switch with leakage protection IΔn≤30mA, time≤0.1S

2.4 With emergency stop button etc. power source indication light, power supply indication

3. Signal Source Technology Parameter

3.1 Three phase, single phase output with auto air switch, capacity 10A

3.2 +24V DC voltage source output, with switch and short circuit protection

3.3 AC 24V voltage source, with switch and short circuit protection

4. Accessory for training bench

4.1 Three phase asynchronous motor: 1 set

4.2 Experiment English manual: 1 piece

4.3 Relay contact components, include: fuse with seat, contactor, intermediate relay ,time relay, thermal relay, buttons,

indication lights, trunking, guide rail, flexible wires, light switch, incandescent light bulb seat, incandescent light bulb etc

5. Experiment Project

5.1 Three-phase asynchronous motor directly start control

5.2 Three-phase asynchronous motor contactor inching control circuit

5.3 Three-phase asynchronous motor contactor self-locking control circuit

5.4 Three-phase asynchronous motor contactor inching and self-locking control circuit

5.5 Three-phase asynchronous motor button interlocking forward & reversal control circuit

5.6 Three-phase asynchronous motor contactor interlocking forward & reversal control circuit

5.7 Three-phase asynchronous motor button contactor double interlocking forward and reversal control circuit

5.8 Manual sequence control of three-phase asynchronous motor

5.9 Automatic sequence control of three-phase asynchronous motor

5.10 Three-phase asynchronous motor multi-sites control

5.11 Three-phase asynchronous motor star-delta starting manual control circuit

5.12 Three-phase asynchronous motor star-delta starting Automatic control circuit

5.13 Single button control motor start-stop experiment

5.14 Three-phase motor reversal connection braking experiment

5.15 Motor timing operation control experiment

5.16 Installation of the incandescent lamp

5.17 Two switches control one lamp

5.18 Single button control the two lights to bright successively

5.19 Time relay control two lights to bright circulation

5.20 Three lights bright circulation
