Specifications
-Electronic Training Kit-Digital Logic/Analog Training board
-electronic technology lab training box
-vocational school

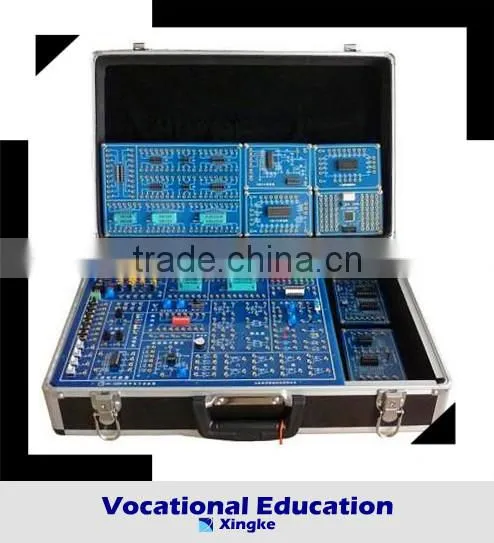

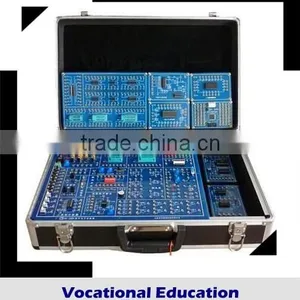

Electronic Lab Trainer, Teaching Aid,
Digital Electronic Training Kit (module type)
1. Product description:
Modular digital electronics experiment box constitutes with mother board and expansion board, expansion board is fixed by four copper cylinders, convenient to plug-in mother board to experiment, mother board can plug-in four expansion board to operate experiments. Experiment box’s mother board integrated power supply, signal source, logic lever swtich, display circuit, breadboard, discrete components, basic gate circuit, commonly used trigger and etc.; expansion board covers most experiments in digital electronic class, can according requirements match different configurations.
2.Technical parameters:
1)Outside size: 485mm*320mm*190mm;
2)Power supply: Single phase AC220;
2)Power ≤12W;
3)Experiment power supply;
DC+12V,1A;
DC-12V,0.5A;
DC+5V,0.5A;
DC1.25~10V,0.5A.
4)Working conditions: temperature -10°C~+40°C relative humidity <80%(25°C)...
3.Experiment box:
1)Research of semiconductor diode. Audion swtich’s characters
2)Discrete components logic gate circui
3)TTL integration logic gate’s logical functions and parameter testing
4)CMOS intergration logic gate’s logic functions and parameter testing
5)TTL collector open circuit gate and three state output’s apply
6)Combinational logic circuit
7)Decoder and its application
8)Numetic comparison
9)Trigger and its application
10)Counter and its application
11)Sequential logic circuit’s design and application
12)Pulse signal producing circuit
13)Pulse delay and wave shaping circuit
14)555 time basic circuit and its application
15)Arithmetic logic unit
16) DAC circuit
17)analog-digital conversion
18)RAM experiment
19)ROM experiment
20)CPLD programming experiment...
