1. Product structure

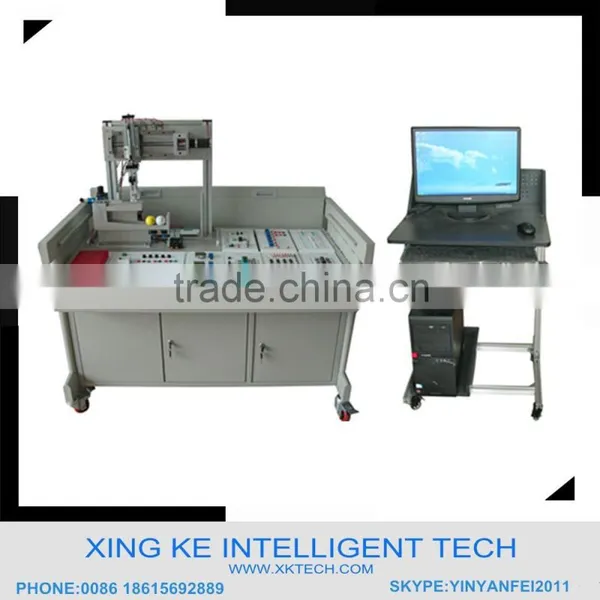

This device is practical training bench and training module, module adopts standard structure, high interchangeability; module contents could be chosen according input output or data conversion functions, so can convenient choose needed module. Each module have two wiring ways, one is electron wired way, 8 BIT data bus also can connect by Dupont Line winding connection. Entire connection process is convenient and efficient. To components with interference properties, all insulate by photoelectricity isolation device to make sure system safety and stability. Connection between module is flexible, could deepen knowledge the principle of singlechip, could finish I/O practical training, A/D training, D/A training, LED LCD dot matrix module and etc.
2. Technical qualification
2.1 Input power supply: single-phase AC 220V±10%(50Hz
2.2 Output power supply: DC±12V±5%/1A
DC±5V±5%/1A
DC 24V±5%/1.5A
2.3 Temperature: -10~40 °C; environment humidity: ≤90%(25°C)
2.4 Overall dimension: about 1225mm×690mm×820mm(L×W×H)
2.5 Unit power dissipation: ≤0.5 kW
2.6.Safety precautions: ground protection, earth leakage protection, security government standard. Electric supply adopts high voltage
3. Equipments composition
1 Mainframe module
2, Power module
3. Simulator module
4. Display module
5. Delay module
6. Instruct module
7 ADC/DAC modules
8. AC/DC motor control module
9. Stepper motor control
10. Sensor adapter module (4 ways sensor port)
11. Extended module
12. Temperature sensor module
13. Logic material handling equipment
4. Training project
1. Marquee experiment
2. Independent button input training
3. Matrix keyboard interface training
4. Photoelectricity isolation input/output training
5. Metal detection training
6. Relay isolation control experiment
7. Static state nixie tube display experiment
8. Dynamic nixie tube display experiment
9. Buzzer perform experiment
10. 8255 chip expand IO port experiment
11. LED display module control training
12. AD transition experiment
13. DA transition experiment
14. LM35 temperature sensor collect experiment
15. IIC bus IC card storage experiment
16. EEPROM chip 24 serials storage experiment
17. External interruption photoelectronic counting control motor training
18. Timer interrupt control motor training
19. Open loop stepping motor control motor training
20. Closed loop AC/DC motor system experiment
21. Closed loop stepping motor system experiment
22. Thermostatic chamber control experiment
23. PS keyboard communication experiment
24. RS232 communication experiment
Logic materials handling device
1. Pneumatic electromagnetic valve control experiment
2. Pneumatic action and material detective experiment
3. Electric arm control experiment
4. Single ball circulate transport training
5. Double ball circulate transport training
6. Logic judge transport training
