Specifications
1.educational training equipment2.sensor training model
3.sensor AP teaching

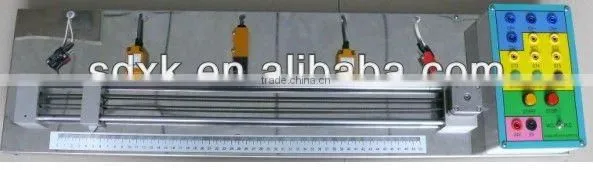

Educational Training Equipment,Sensor Application Training Model (dc motor, include scm )
1product overview:
device consist of dc 12 V stepper motor, stepping motor drive, through the synchronous belt drive the car
(using the slider instead )back-forth movement.
2.main parameters:
Ø size :500 mm x 260 mm x 120 mm ,
Ø power supplies: DC12V <2A
3.main composition:
consist of stepper motor and drives , single-chip microcomputer control board, synchronous belt, ruler, sports slider block, testing switch, belt pulley,
the Rod Linear Motion and other components
4.main functions:
close to switch application practice, the photoelectric switch application practice, the Hall switch
application practice, step motor control training, the car-forth movement control training.
5.annex:
cross wiring, commonly used tools, software disc, the product specification.
6.Training Projects
1. Understanding and application of stepper motor and drive experiments
2. Understanding and application of variety of sensors experiments
3. Using PLC / MCU to realize stepper motor speed control experiments
4.Using PLC / MCU to realize stepper motor precise positioning control experiments
5.Using PLC / MCU to realize trolley (the slider) automatically come and go control experiments
