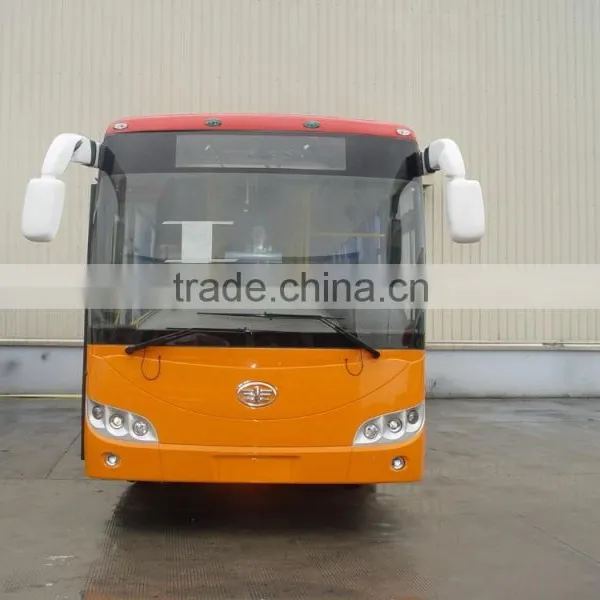

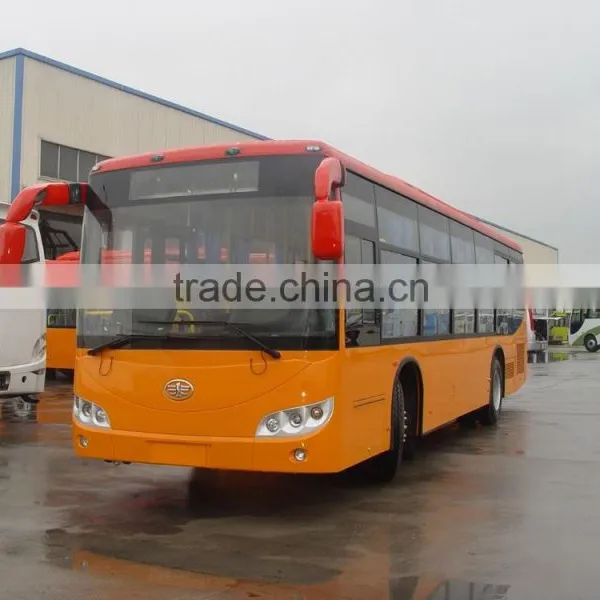

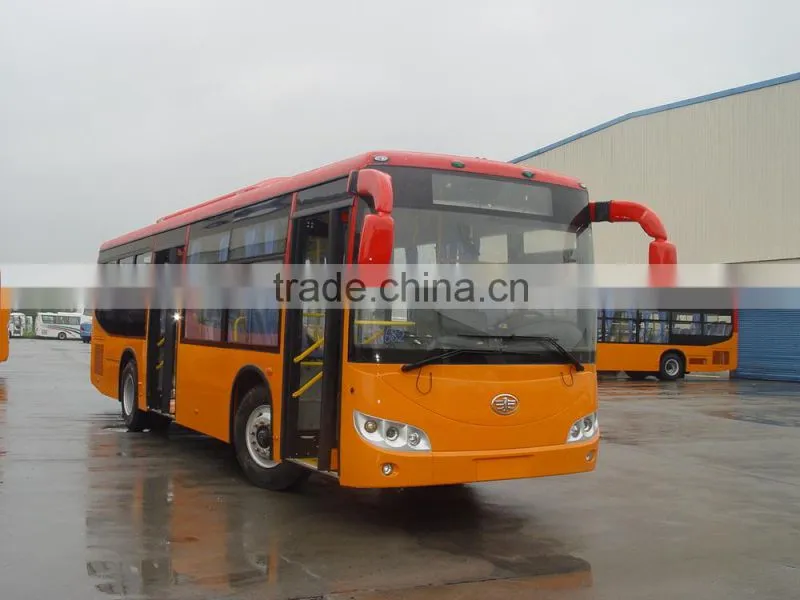

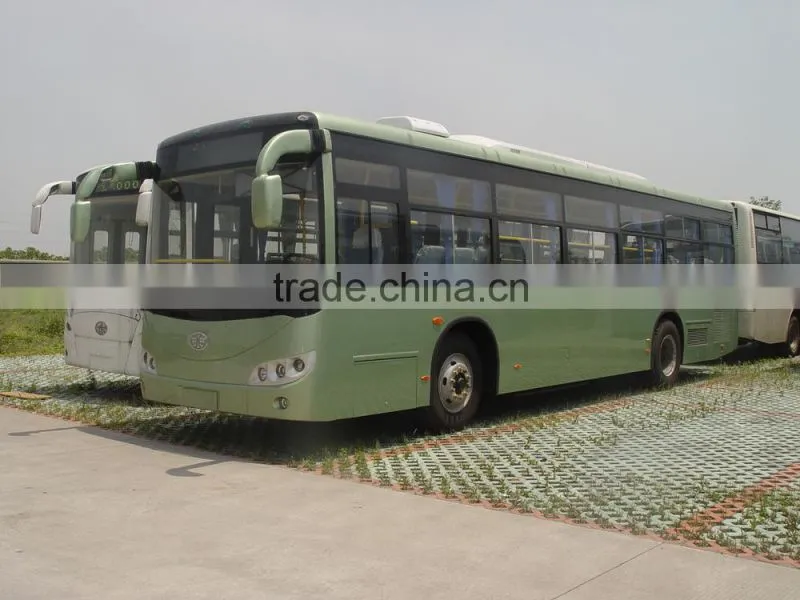

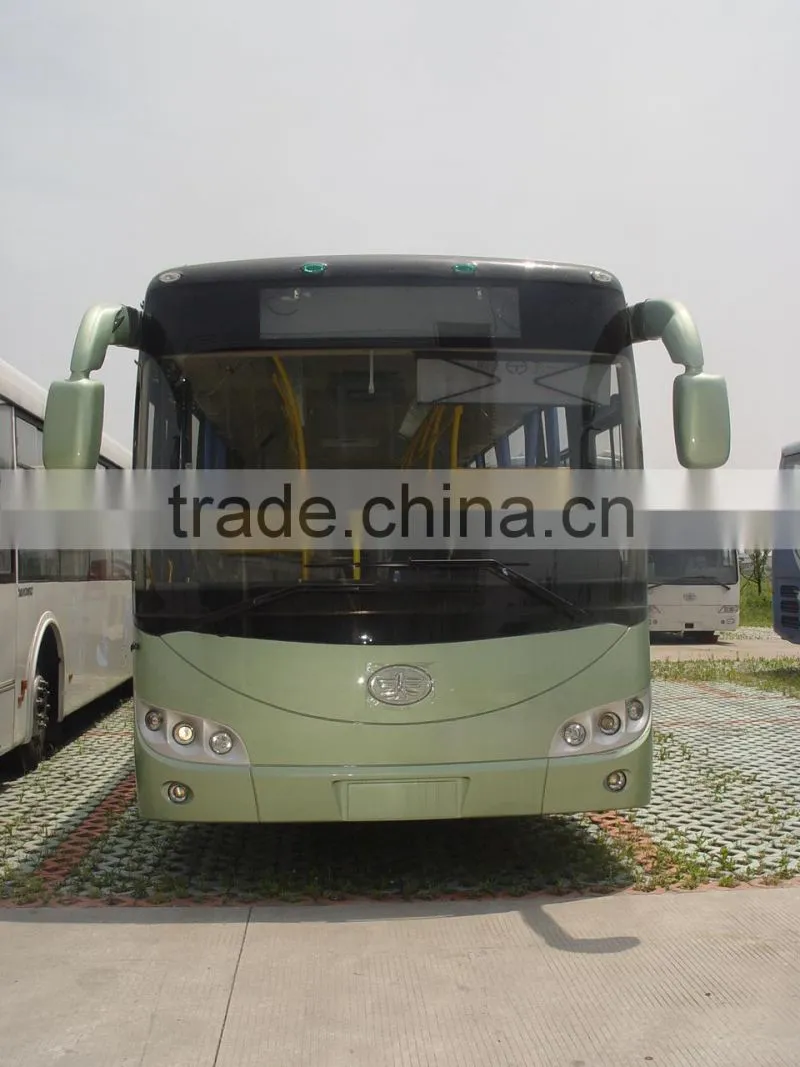

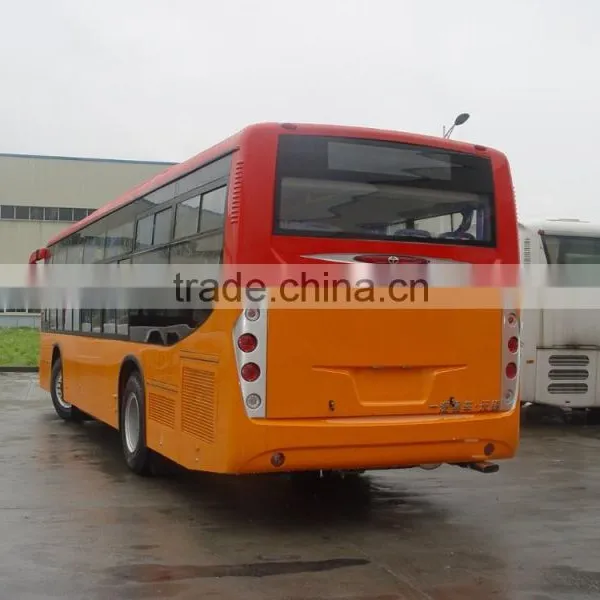

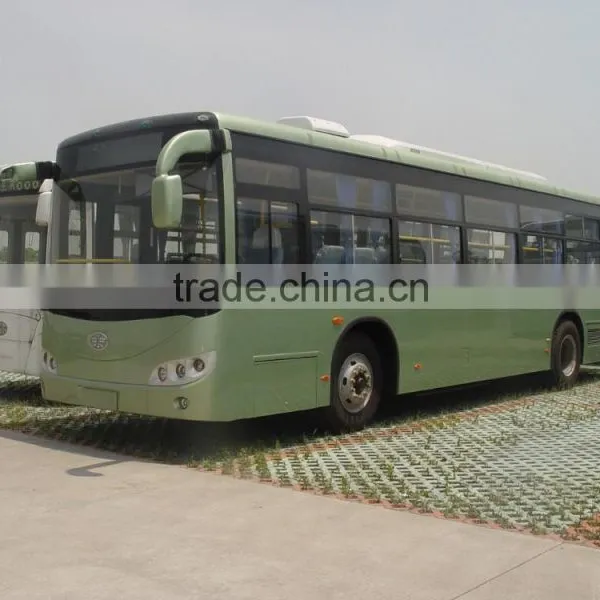

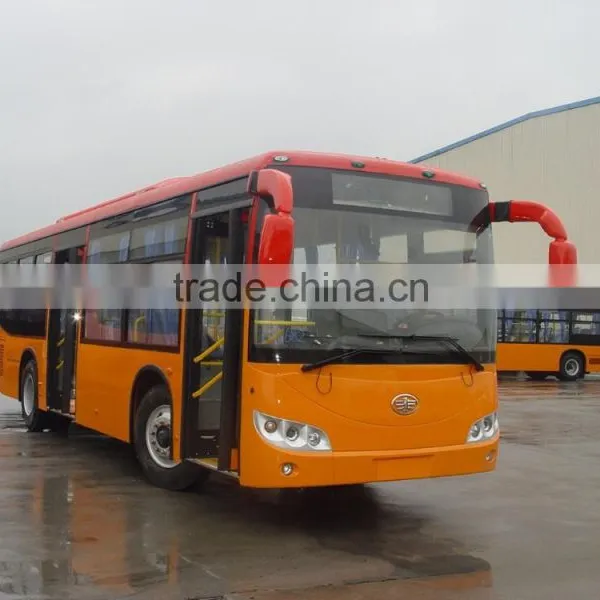

Manual Transsion Diesel Fuel 10m Euro 3 City Bus

Name: Manual Transsion Diesel Fuel 10m Euro 3 City Bus
Brand: HUAXIN
SKU: 109272071

US$ 36,500 - 70,000 MOQ: 1 Unit

Key Specifications

Seats:

21 - 40

Emission Standard:

Euro 3

Transmission Type:

Manual

Wuxi Huace Automobile Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Seats 21 - 40

Emission Standard Euro 3

Transmission Type Manual

Max Speed 71 - 90 km/h

Steering Position LHD

Fuel Type Diesel

Dimensions (L x W x H) (mm) 10495*2400*3100

Place of Origin Jiangsu, China

Brand Name HUAXIN

Model Number HM6102

Name: Manual transsion Diesel Fuel Euro 3 10m City buses for sale

Specifications
Model			HM6102
DIMENSIONS & WEIGHTS
Overall dimension (mm)		Length	10495
		Width	2440
		Height	3100
Wheelbase (mm)			5000
Thread (mm)		Front/rear	2020/1860
Gross vehicle weight (kg)			15500

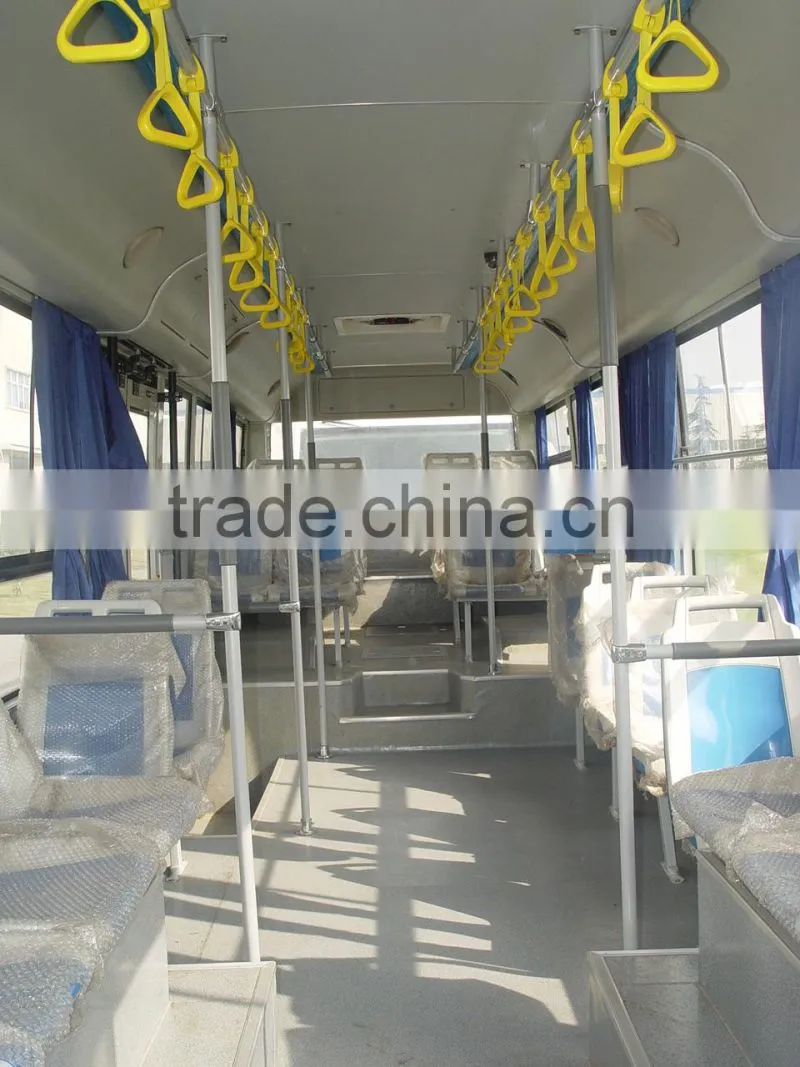

Seating capacity (persons)			25-36/75
ENGINE
Model			CA6DF3-24E3
Type			6-cylinder, in line, water-cooled, direct injection, diesel, turbocharged, inter-cooling
Displacement (cc)			7127
Max. Power (hp/rpm)			255/2300
Max. Torque (N-m/rpm)			935/1400
Fuel tank (liter)			200
DRIVE TRAIN
Clutch			Hydraulic, Single plate, φ420mm
Gearbox			5 speed manual , QJ805
Max. gradeability (%)			25
CHASSIS
Frame			Ladder shaped, ‘] ’ section
Suspension, front/rear			Leaf springs
Shock absorber, front/rear			Double action shock absorbers
Steering			Recirculating-ball,power steering
Brake	Type		Air brake
	Front/rear		Drums
Power steering			With
Tires			10.00-20 16PR, Without spare tire
FOB SHANGHAI
