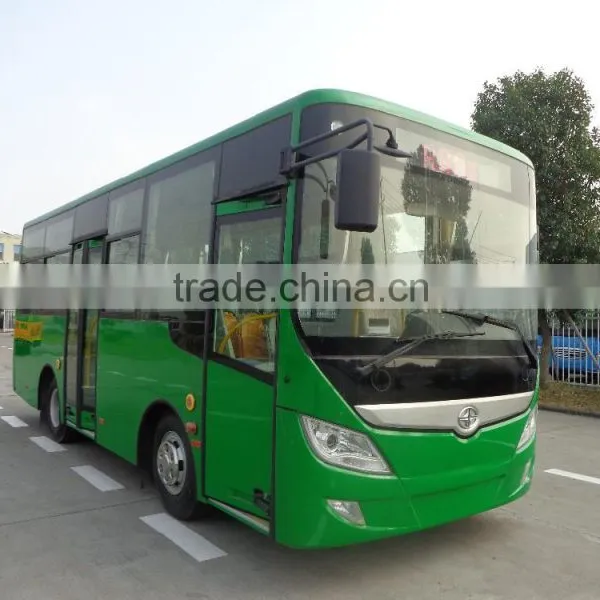

7.6m Diesel 27-31 Seats Rear Positioned Engine City Bus

Name: 7.6m Diesel 27-31 Seats Rear Positioned Engine City Bus
Brand: HUAXIN
SKU: 109272113

US$ 22,000 - 35,000 MOQ: 2 Units

Key Specifications

Seats:

21 - 40

Emission Standard:

Euro 3

Transmission Type:

Manual

Wuxi Huace Automobile Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Seats 21 - 40

Emission Standard Euro 3

Transmission Type Manual

Max Speed 71 - 90 km/h

Steering Position LHD

Fuel Type Diesel

Dimensions (L x W x H) (mm) 7640*2380*3000/3150

Place of Origin Jiangsu, China

Brand Name HUAXIN

Model Number HM6760

Name: 7.6m HM6760 27-31 seats city bus dimensions for sale

Specifications
Model			HM6760
DIMENSIONS & WEIGHTS
Overall dimension (mm)		Length	7640
		Width	2380
		Height	3000/3150
Wheelbase (mm)			3500
Thread (mm)		Front/rear	1950/1680
Curb vehicle weight (kg)			5050
Gross vehicle weight (kg)			9000
Seating capacity (persons)			27 (double doors)/31 (single door)
ENGINE
Model			FAW brand engine CA4DF3-14E3F (Euro III)
Type			4-cylinder, in line, water-cooled, direct injection, diesel, turbocharged, inter-cooling
Displacement (cc)			4750
Max. Power (hp/rpm)			140/2500
Max. Torque (N-m/rpm)			4901300-1500
Fuel tank (liter)			90
DRIVE TRAIN
Clutch			Hydraulic, Single plate, dry type diaphragm spring
Gearbox			5 speed manual
Max. gradeability (%)			30
CHASSIS
Frame			Ladder shaped, ‘] ’ section
Suspension, front/rear			Leaf springs
Shock absorber, front/rear			Double action shock absorbers
Steering			Recirculating-ball
Brake	Type		Air brake
	Front/rear		Drums
Power steering			With
Tires			7.50-20
FOB SHANGHAI
