NAIS relay Panasonic temperature controller PID Controller AKT4111100
NAIS temperature Common Features
Multi-input: Versatile thermocouple, RTD, DC Current, DC Voltage
Control modes: PID, on/off control, Anti-Reset-Windup (ARW)
Control output: Relay, non-contact voltage output
(for SSR drive, DC current output)
Accuracy: ± 0.2% span
Simple operation
Heater-burn-out alarm available
Alarm output with 9 different operation modes
RS485 ASCII/Modbus communication available
Supply voltage: 24V AC/DC or 100 to 240V AC
Compliant with UL, CSA standards and CE marking
Output Methods:
Output method Characteristics
Relay contact output is used for switching up to
3A 250V AC (resistive load) in applications
in which the on-off frequency is low.
Voltage output for SSR drive This voltage output is used for driving the SSR .
Since the SSR is a semiconductor relay, contact life is long.
This type is used in applications in which
the on-off frequency is high. Up to 40mA 12V DC can be switched.
DC current output: This current output is used to control a power regulator.
Smooth and accurate control is possible
because phase control corresponds to the current output.
NAIS Temperature Controller KT4
• 1/16 DIN size temperature controller
• Size 48 x 48 x 95mm (WxHxD)
• Panel-mounted type
• IP66 waterproof (frontside if panel mounted)
• 2nd optional alarm output
• Heating and cooling control with 2nd optional
control output (non-contact voltage output)
Multi-input:
A Thermocouples K, J, R, S, B, E, T, N, PL-II, C(W/Re5-26)
A RTD Pt100, JPt100, 3-conductor system
A DC current 0/4 - 20mA
A DC Voltage 0 to 1V, 0 to 5V, 1 to 5V, 0 to 10V

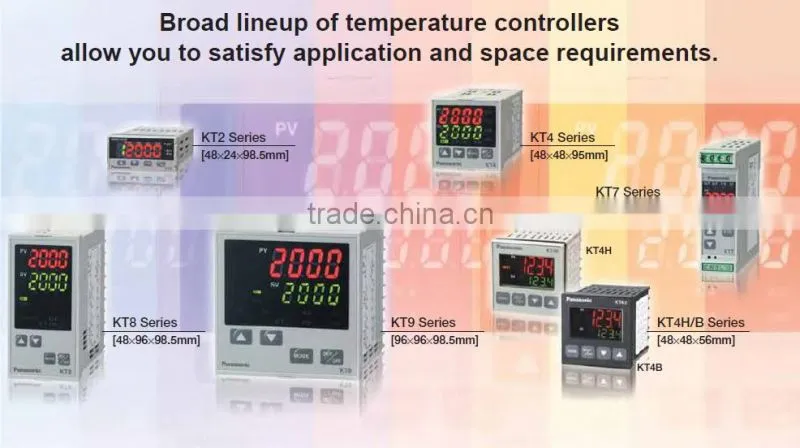

KT2 ; KT4;KT4H; KT8; KT9; KT7

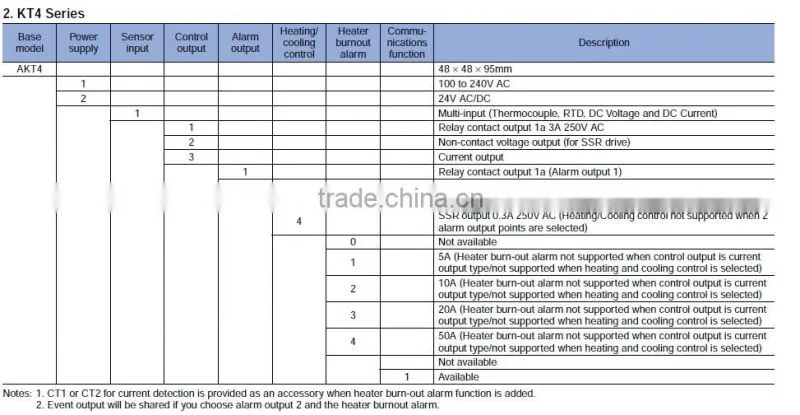

Panasonic temperature controller KT4H in stock:
AKT4111100; AKT4111200; AKT4112100;
AKT4112140; AKT4113100; AKT4211100
AKT4211140; AKT4212100; AKT4212140
AKT41111001; AKT42111001
