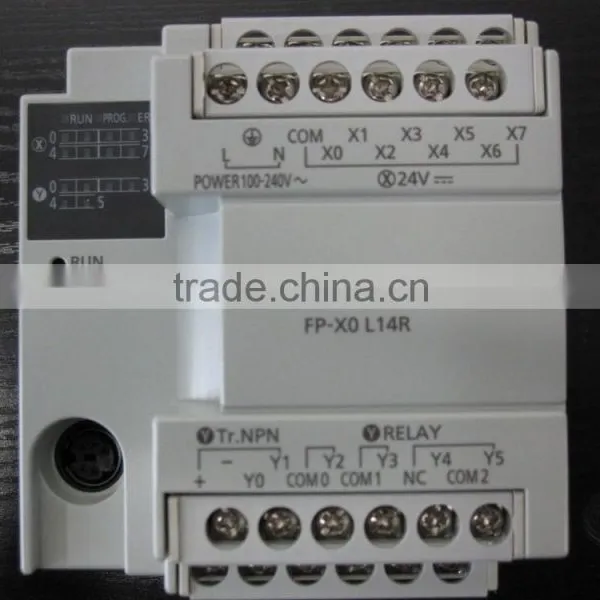

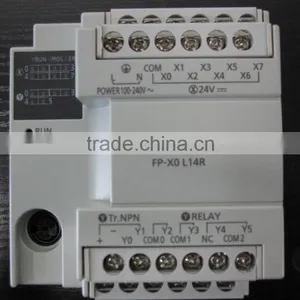

PANASONIC PLC CONTROL UNIT FP-X0 L14R Panasonic Electronics AFPX0L14R
FP-X0L14R CONTROL UNIT
Panasonic Electronics distributor china
| modle | FPX0L14R |
| Brand | Panasonic |
| I/O point | DC input 8 points, Ry output 4 points, Tr putput 2 points |
| Supply | 100-240VAC |
| Program capacity | 2.5K steps |
| comment memory | Available (Built-in memory) |
| Oprtation Speed | 0.08μs |
| Response time | 0.2ms or less |
Performance
Super-high Processing Speed
Program Memory: 2.5 k steps
The Maximum Number of I/O Points
One control unit can be connected with up to 3 expansion units.
Therefore, the maximum number can reach 150 points.
In addition, if the expansion FP0 adaptor is used,
Network
Maximum 2-channel Communication Port
One RS232C programming port is equipped on the body.
Modbus-RTU
Non-program communication with the devices (such as the temperature controller and the inverter etc.)
using global universal industry standard Modbus-RTU (binary)
can be realized simply.
Computer Link
Non-program communication with the devices (such as the display, image processor,
temperature controller and wattmeter etc.) using Panasonic open protocol "MEWTOCOL" can be realized simply.
Universal Serial Communication
It can generate or send the corresponding commands according to the communication protocol
used by the pairing device. In addition, it can also receive the flow data,
such as the data from the measuring instrument, bar code reader and RF-ID etc.
Line Up
3 units max. can be added.
E16X, E16T, E16P upgraded to Ver.3 or later can be connected (The number of connected units is limited.)
56 Kinds of Combinations (of I/O number)
14 to 150 points (FP0R expansion units excluded)
Positioning / Function
Built-in 2-axis Pulse Output Function
Power supply: 100 to 240 V AC
24 V DC input, 8 points
0.5 A/5 to 24 V DC transistor output, 2 points
2 A relay output, 4 points
Panasonic AFPX0L14R
FP-X0 relay output L14R
AFPXOL14R; FPXO-LI4R; FPXO-L14R
AFPX-E14P; AFPX-E14P;
AFPX0L14R; AFPXOL14;
AFPX0L14R, AFPX0L14R-F,AFPX0L14
AFPX0LI4R, AFPX0LI4R-F, AFPXOL14R-F,
AFPXOL14R; AFPX0LI4; AFPXOLI4R;
AFPXOL6OR, AFPXOLI4R, AFPXOLI4R-F,
FP-X0 L14R; FP-X0L14R;
FP-XO L14R; FP-XOL14R;
Standard Carton Box for export
