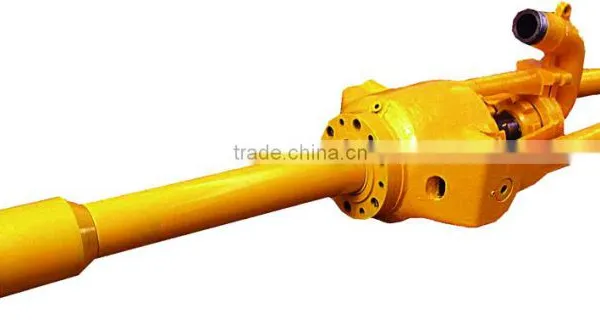

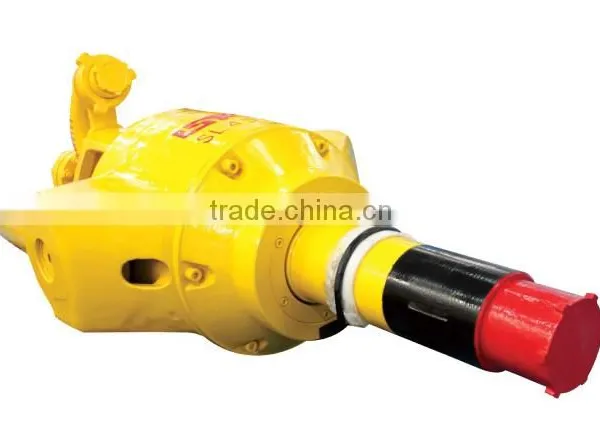

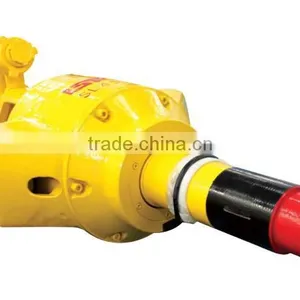

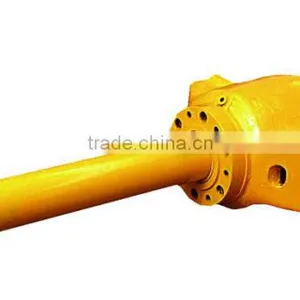

swivel for well drilling
Specifications
1) oilfield equipment water swivel
2) API SPEC 8A certificate
3) Fast delivery with good quality
4) 1 year warranty
top quality oilfield equipment SL water swivel for drilling rig according to API SPEC 8A
Products specification
1.With standrad bails and double pin alloy steel sub .
2.The wash pipe and the packing assembly are cartridge rype and can be replaced on the floor without disconnecting the rotary hose and/or gooseneck.
3.The goosenenk is provided with an outlet for wire line logging.
4.With standard gooseneck joints.Threads are in compliance with API Std 5B.
5.The swivels conform to API Spec.8A/8C.
Model |
SL135 |
SL225 |
SL450/SL450D |
SL450H |
SL675 |
|
Max.Static load rating KN |
1350 |
2250 |
4500 |
6750 |
||
Max.Speed r/min |
300 |
300 |
300 |
300 |
||
Max.Working pressure Mpa(psi) |
35(5000) |
35(5000) |
35(5000) |
52(7500) |
52(7500) |
|
Clearance Between Bail and gooseneck mm(in) |
495(191/2) |
540(211/4) |
549(215/8) |
600(233/5) |
640(251/5) |
|
Dia.of stem mm(in) |
64(21/2) |
75(3) |
75(3) |
101.4(4) |
||
|
Coupling thread |
API To stem |
41/2" REG LH |
65/8" REG LH |
75/8" REG LH |
75/8" REG LH |
85/8" REG LH |
|
API To Kelly |
65/8" REG LH |
65/8" REG LH |
65/8" REG LH |
65/8" REG LH |
65/8" REG LH |
|
Overall dimension(L×W×H) |
2505×758×840 |
2880×925×1026 |
3015×1096×1035 |
3208×1096×1035 |
3685×1404×1265 |
|
|
The above-mentioned swivels have spinners(dual-purpose)and no spinners. Din Model means low temperature. Hin Model means higt pressure. | ||||||
Beijing Ocean Renda Petroleum Equipment Co.,Ltd engaged in Petroleum Equipment already 10 years. We provide the Petroleum Equipment ,qualifield parts and service about the Petroleum Equipment. Our products get the API certificates. At present, our main market is in South America. Our company have established four overseas company in United States, Colombia , Mexico and Dubai.
1. What does Ocean Renda do?
Beijing Ocean Renda Petroleum Equipment Co.,Ltd has been engaged in research, design, manufacturing and assembly of land oil drilling rig and equipments for oil exploration and development since 2006. Ocean Renda is a leading one in this field in China.
2. What does Ocean Renda offer?
Beijing Ocean Renda Petroleum Equipment Co.,Ltd offers kinds of equipments for oilfield. We are one professional company in oil industry and our business covers oil field service, drilling rig/workover and its spare parts supply, equipment maintenace, and chemicals supply.
3.Can I expect a quality products?
All the production and processing are strictly according to ISO 9001:2008 and API standard. At the same time, mature production technology ensuring the quality satisfy international request. We also welcome the third party inspection, such as BV, SGS and TUV.
