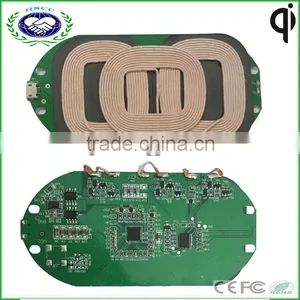

3 Coils Wireless Charger Pcba High Quality Customized Pcba for Furniture ,car
US$ 3 - 50
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hubei, China
Brand Name:
ODM
Model Number:
PCB Assembly
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Custom Wireless Charger Pcba Widely Using High Quality Electronic PcbaUS$ 3 - 50MOQ: 1000 Pieces -
20w 36w High Power Wireless Charging Solution Wireless Charger Receiver PcbaUS$ 3 - 50MOQ: 1000 Pieces
-
Shenzhen Factory ce Fcc Rohs Certificated Wireless Charger Pcba Accept CustomUS$ 3 - 50MOQ: 1000 Pieces
-
1 Coil TI Solution Wireless Charger Pcba Customized qi Wireless Charger Model for FurnitureUS$ 1.5 - 10MOQ: 1000 Pieces
-
Electric Type and Mobile Phone Use qi and Powermat Standard Wireless Charger for Samsung Galaxy s6 s7US$ 18.20 - 18.20MOQ: 1000 Pieces
Place of Origin
Hubei, China
Brand Name
ODM
Model Number
PCB Assembly
Base Material
FR-4 Epoxy Resin
Copper Thickness
1oz
Board Thickness
1.0mm
Min. Hole Size
0.20mm
Min. Line Width
3mi
Min. Line Spacing
3 Mil (0.075 Mm)
Surface Finishing
HASL

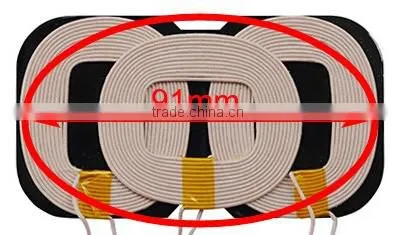

Three coil wireless charger A6 program
A6 wireless charging program is a three-wireless charging coil architecture with efficient wireless charging solution.
A6 can uses 5V-12V supply voltage, output current reaches 800mA-1000mA . Its main features are: wide charging range, high charging efficiency, stable charging current. It can be mainly used in vehicle charging, industrial equipment charging, and other high-grade electronics wireless charging.
Because of the A6 charging design of the wide range power supply, when it works, it need simultaneously drive the three coils, so the charge efficiency also brings greater heat. A6 programs usually detects the high temperature thermostat automatic cutting off the power to stop working. Compared to the solution A11, A6 has a high charging efficiency and a large charging area, but also it will increase the product’s material and processing costs. Higher prices limit the spread and use of A6 programs. It is mainly used in high-end consumer electronics products customized wireless charging module, or industrial wireless charging devices.
Technical specification:
Input:DC5V-12V
Custom reading:
Input:DC5V-12V
Power:5W-10W
Output:800-1000mA
Charging distance:2-10mm
Charging efficiency:73-78%
Working life:≥ 8,000 hrs
Charging program:TI/Sunpluse/IDT/Huawei
Frequency:100-200Khz

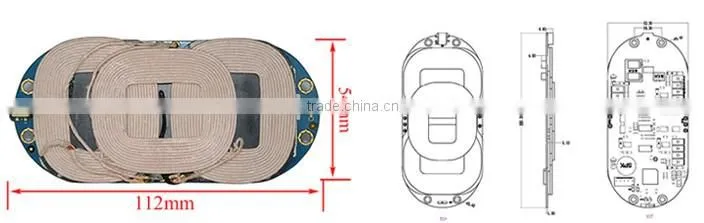

Custom PCB size:62*83*2mm (Depend on your needs)
Charging time:2-4 hours (according battery capacity)
Custom reading:
1. We are welcome you to customize the charging module , before the working we need to have a full comunication for the details ,if you have other requirements pls contact us any time.
2. About the comunication we need to know is the zise about the PCB+Coil , the charging power and current you needs ,More better we could have a sample or the Stp/2D Map data . The most ferfect information will make the perfect custom module .
3. The charging program we can do :TI (high quality) , Suplus/IDT (middle quality) , huawei (China made ) , they are all compatible QI standard wireless charging .
4. Before we start the project , we need to charge the 100% payment for the custom fee , the service include the custom module and later module improvements .
5. A normal custom cycle is 15-20days , Project started--Schematic design work--PCB Proofing and debugging--PCBA function testing, During this time we will let you know all the project going .
6. leading the advanced technology, producing quality product and serving customers heart and soul. We promise to provide you the best quality products and the most sincere services wholeheartedly.
Advantages:
1. competitive price
2. Small order acceptable, more quantity your order, more discount will be offered.
3.Good service, fast delivery, and we are worth being trusted.
4. We can guarantee you will be satisfied with our products.
Shipment:
1.Mass Production: 15-20 days after everything confirmed(based on the order quantity).
2.Usually we delivery by courier, sea or air available, according to your requirement.
Payment:
1.T/T payment or western union big order can accept L/C at sight.
2.Price term: FOB Ningbo/Shanghai, CIF your pointer port.
3.30% T/T advance and balance 70% before shipping payment.
