Specifications
1.Insulation material:Epoxy resin2.24kV,1250-3150A, 24/65/125kV
3.ISO 9001:2008 and IEC 60137Ed.6.0
4.Payment:L/C or T/T
1.Summary
The use of epoxy resin automatic pressure gel craft that APG technology manufacturing, product appearance, mechanical, electrical performance.
Selection of high-toughness resin production, excellent mechanical properties. And selection of low-formula system reactivity, slow curing, low-stress products to maximize the mechanical properties of products.
Silica add activity to further improve the mechanical properties of epoxy resin, but also to ensure that the insulation work in the humid environment of long-term to maintain a good electrical insulation properties.
Add organic pigment, the product color bright, does not reduce the insulation performance.
2.Technical Parameter
Rated current: 2,000 to 2,500A
Power frequency withstand voltage: 65kV/1 minute
Partial discharge: 26.4kV
Lighting impulse voltage: 125kV
Creepage distance: greater than 480mm

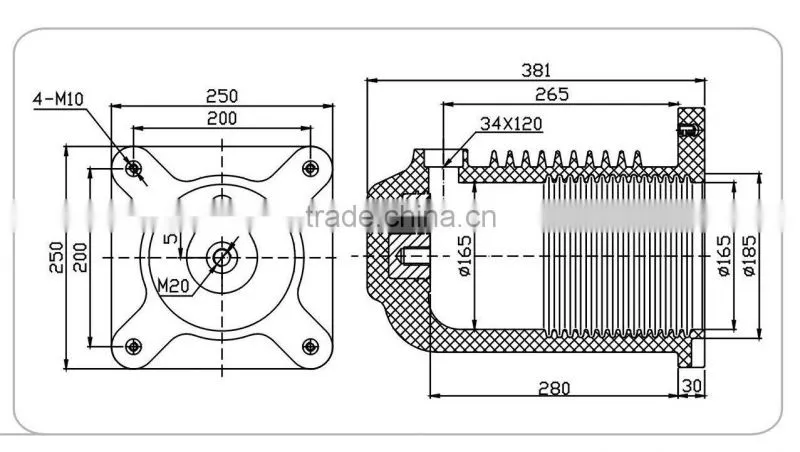

3.Overall Dimensions:
