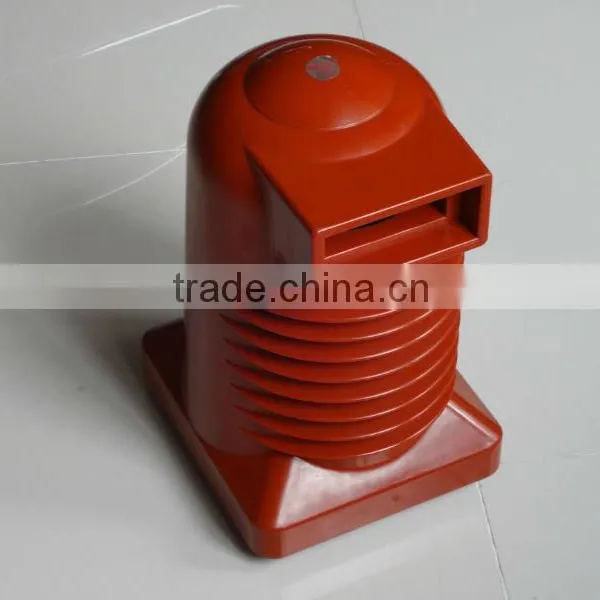

10kV Isolation Contact Spout Bushings
US$ 20 - 25
MOQ: 3 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Shuguang Electric
Model Number:
CHZ10-303
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
3150A Bushing InsulatorNegotiableMOQ: 3 Pieces -
12kV Composite Polymer Insulator BushingNegotiableMOQ: 3 Pieces
-
24kV Epoxy Resin Switchgear Contact BoxUS$ 15 - 20MOQ: 100 Pieces
-
24kV Epoxy Resin Switchgear Contact BoxUS$ 15 - 25MOQ: 10 Pieces
-
24kV Isolation Contact Spout BushingUS$ 30 - 40MOQ: 10 Pieces
Place of Origin
Zhejiang, China
Brand Name
Shuguang Electric
Model Number
CHZ10-303
Type
Insulator
Material
Other, Epoxy Resin
Application
Other, High Voltage, 12kV Switchgear
Rated Voltage
12kV
Tensile Strength
6000N
Specifications
Power frequency withstand voltage: 65kV/1minLighting impulse voltage: 125kV
Creepage distance:240mm
Type Test Report
1.The use of epoxy resin automatic pressure gel craft that APG technology manufacturing, product appearance, mechanical, electrical performance.
2.Selection of high-toughness resin production, excellent mechanical properties. And selection of low-formula system reactivity, slow curing, low-stress products to maximize the mechanical properties of products.
3.Silica add activity to further improve the mechanical properties of epoxy resin, but also to ensure that the insulation work in the humid environment of long-term to maintain a good electrical insulation properties.
4.Add organic pigment, the product color bright, does not reduce the insulation performance.
