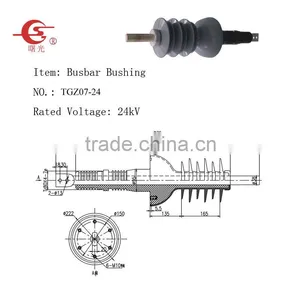

Wall Bushing for Indoor and Outdoor Application
US$ 1 - 100
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Shuguang
Model Number:
TGZ08-24
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI&NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
40.5kV TGZ2-B-40.5 Indoor Shielding Bushing InsulatorNegotiableMOQ: 10 Pieces -
12kV TGZ31-12 Bushing Insulator Cast Epoxy InsulatorUS$ 1 - 100MOQ: 1000 Pieces
-
Bushing Insulator for MV Switchgear Especially for 12kV Metering UnitUS$ 1 - 100MOQ: 100 Pieces
-
12kV TGZ18-12 Busbar Bushing Cast Epoxy InsulatorUS$ 1 - 100MOQ: 100 Pieces
-
12kV Epoxy Resin Wall Bushing InsulatorNegotiableMOQ: 3 Pieces
Place of Origin
Zhejiang, China
Brand Name
Shuguang
Model Number
TGZ08-24
Type
Insulator
Material
Composite Polymer
Application
High Voltage
Rated Voltage
24 kV
Wall Bushing
Bushings are available from 24 kV through 245 kV in the most common current ratings
For indoor/indoor-indoor/outdoor-outdoor/outdoor use
Internal dry arc distance: 335mm
External dry arc distancce: 355mm
Internal creepage: 415mm
External creepage: 870mm
Material: Bisphenol A resin and silicone rubber composite
Protect cap: Aliminum
Insert EO5(M10*1.5): Brass
Intert(M10) torque point: 30KN
Exposed copper is tin plated to 15 microns
All unspecified tolerance as per GB/T1084-m GB/T1184-k
