Specifications

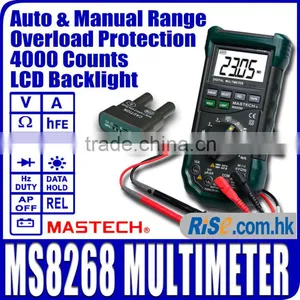

MS8268 Auto-range Multimeter with 4000 CountsBrief Description
This Professional Auto-range Digital Multimeter (MS8268) is manufactured by MASTECH which is one of the largest and most well-known manufacturers of high quality electronic measuring instruments. It has multi-functions to measure and test various parameters including DC and AC voltage, DC and AC current, resistance, capacitance, frequency, duty circle, transistor, diode and continuity test.
This multimeter is a high performance and accuracy instrument with large 3 3/4 digits backlight LCD and 4000 counts. It has a special ergonomic feature misconnection alarm system with sound and light alarms against misconnection of test leads. You can see red lights at the corrected terminals. Other important features are overload protection, data holding, relative value measuring, auto / manual range switching, auto power off and low battery indication. Back-stand is also included for convenient operation.
This multimeter is ideal for use on production lines, testing laboratories, factories, radio-technology, R&D, maintenance and repairing work.
Features

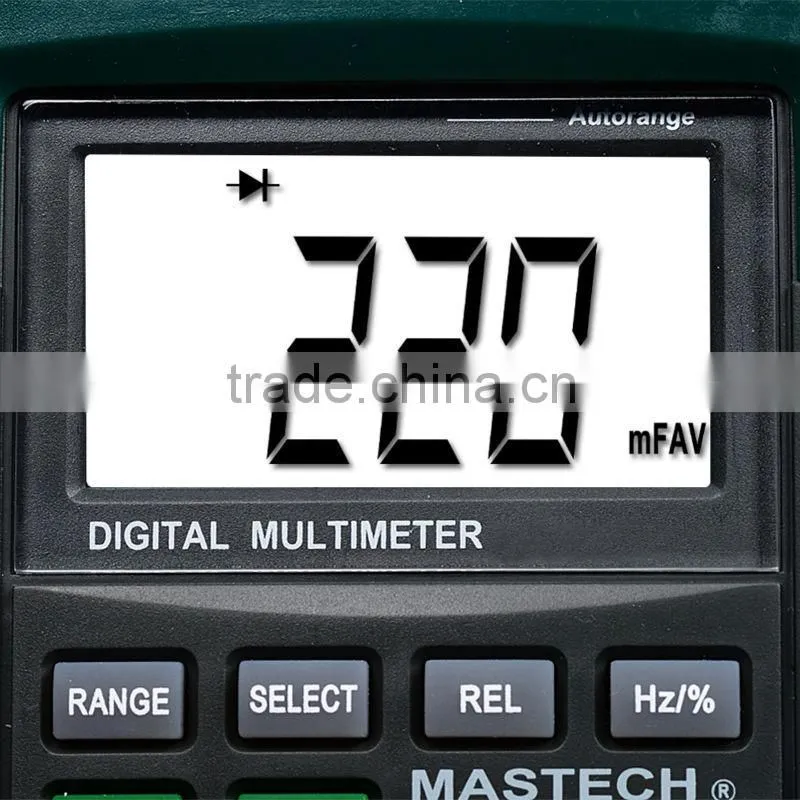

- Display: 3 3/4 digits large LCD with 4000 counts
- LCD with backlight
- Misconnection alarm system
- Red lights to show the correct terminals
- Full overload protection
- Audible warning for over-range
- Data holding
- Manual & auto ranges
- Relative measurement
- "Sleep mode", auto power off & low battery indication
- Unit symbol display

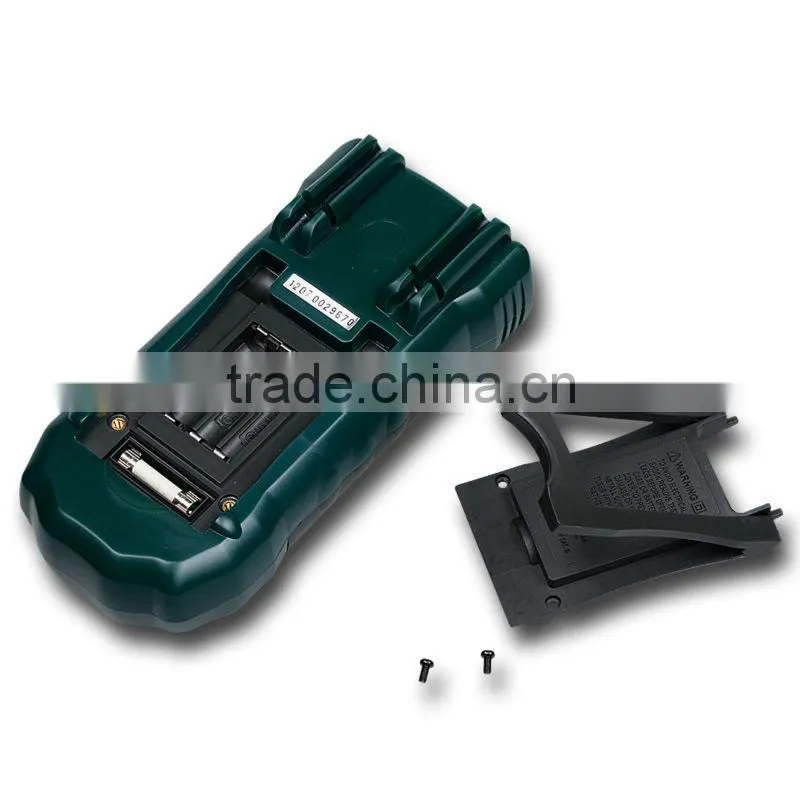

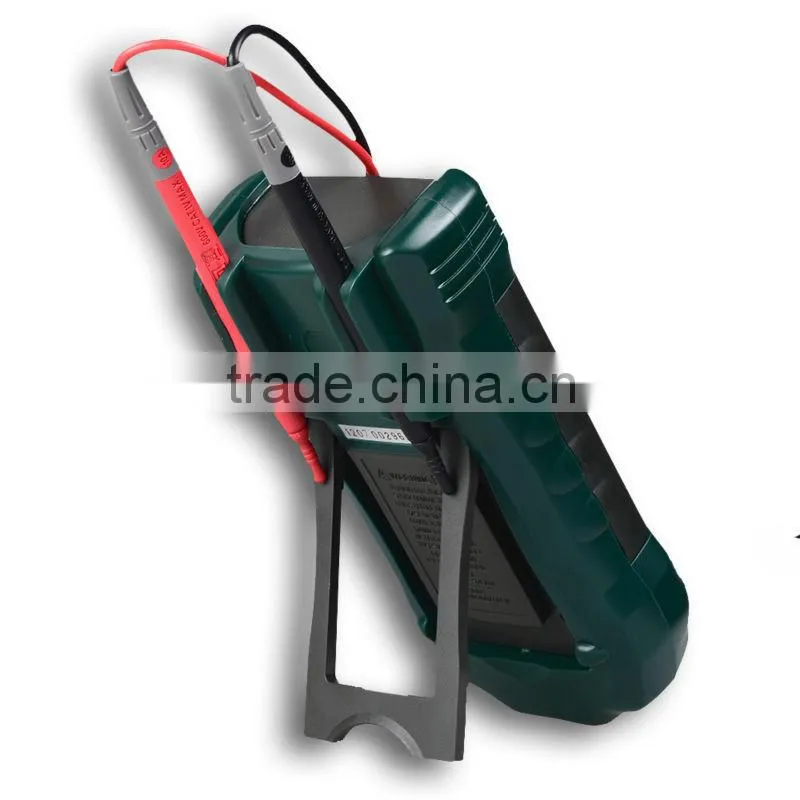

- Back-stand included
Specifications
- Display: 3 3/4 digits LCD with 4000 counts
- Sampling Rate: approx. 3 times / second
- Test Leads: 1KV 10A
- Safety Standards: IEC1010-1, CAT. III 600V & CAT. II 1000V
- Operating Temperature: 0 ~ 40°C (32 ~ 104 °F)
- Operating Humidity: below 80% RH, <10°C non-condensing
- Storage Temperature: -10 ~ 60 °C (14 ~ 140 °F)
- Storage Humidity: below 80% RH
- Power: 3 x 1.5V AAA batteries (included)
- Dimensions: 195 mm x 92 mm x 55mm (7.68' x 3.62' x 2.17' inch)
- Weight: Approx.380g (including battery) (13.40oz)

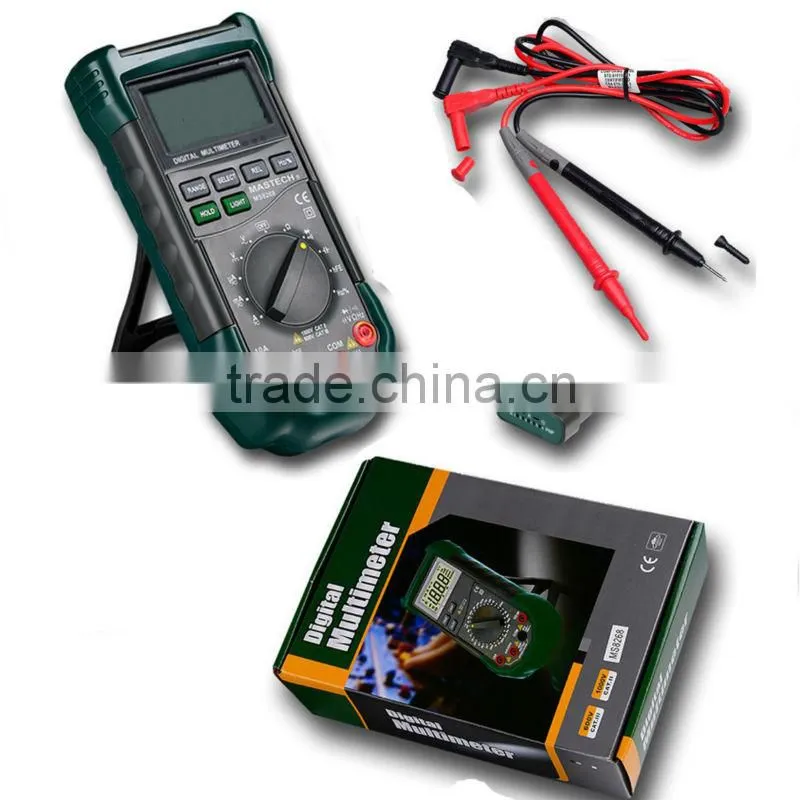

One Set Included
- 1 x Digital Multimeter
- 2 x Test Lead
- 1 x Special Multifunction Socket
- 1 x Instruction Manual
- 3 x 1.5 V AAA Batteries
- Standard Factory Package
