Specifications

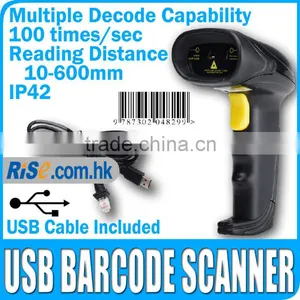

USB Laser Barcode Scanner (100 times/sec)Brief Description
This barcode scanner makes use of laser technology to read linear barcodes accurately and transmits data to PC instantly via the most commonly used USB interface. You just simply plug and play and you don’t need to install any software or driver. It is highly compatible and can be integrated into your various existing systems immediately. It has highly sensitive and efficient scanning rate of 100 times/secand long scanning distance of 10-600mmto make your daily work even more efficient and convenient.
This barcode scanner offers high-performance decode capability including cross 25 yards, 25 yards industries, coda bar, EAN-8, EAN-13, UPC-A, UPC-E, EAN/UCC-128 etc.Other important features are includingbeeper sound adjustment, ergonomic design with IP42 protection, manual & automatic continuous scanning modes. You can setup easily by scanning the setup barcodes in manual.
This USB barcode scanner is very commonly used in inventory management, warehousing, logistics, asset tracking and management to ensure high accuracy and efficiency. It also can be used in libraries, offices and government departments.
Features
- Highly sensitive and efficient scanning rate 100 times/sec
- Long reading distance 10-600mm
- Multiple Interfaces Supported: PS2/KB, RS-232, USB 2.0 (Only USB Cable Included)
- Plug & play; no software and driver required
- Easy setup by scanning setup barcodes
- Multiple Decode Capability: UPC-A, UPC-E, EAN-13, EAN-8, ISBN/ISSN, 39 yards, coda bar, cross 25 yards, 25 yards industries, Matrix 25 yards, 128 yards, 93 Code, 11 yards, MSI/PIESSEY, UK/ PLESSEY, UCC/EAN128 code
- Manual & Automatic continuous scanning modes
- Bright 650nm laser aiming dot
- Beeper with adjustable volume
- Ergonomic design
- IP42 protection
- Low power consumption
Specifications
Light Source |
650nm visible laser diode |
BER |
1/5,000,000 |
Decode Capability |
UPC-A, UPC-E, EAN-13, EAN-8, ISBN/ISSN, 39 yards, coda bar, cross 25 yards, 25 yards industries, Matrix 25 yards, 128 yards, 93 Code, 11 yards, MSI/PIESSEY, UK/ PLESSEY, UCC/EAN128 code |
Interfaces Supported |
PS/2 keyboard, RS-232 serial port; standard interface USB 2.0 (only USB cable included) |
Trigger Mode |
Manual & automatic continuous scanning |
Detecting Distance |
25cm; 20cm; 5cm |
Scanning Distance |
10-600mm with elevation angle 60° & inclination angle 45° |
Scanning Delay |
2 sec/time |
Scanning Rate |
100 times/sec |
Transmission Rate |
RS232 baud rate 2400-38400 |
Minimum Element Width |
0.1mm/ 4mils |
ScanningWidth |
60mm at 30cm, 98mm at 100mm |
Depth of Field |
2~9cm (0.1mm bar width); 3~50cm (0.3mm bar width) |
Operating Temperature: |
-20ºC ~ 50ºC (-4 ~ 122ºF) |
Storage Temperature: |
-20ºC ~ 60ºC (-4 ~ 140ºF) |
Operating Humidity: |
0 ~ 95% |
Operating Humidity: |
5% ~ 95% |
Shock Resistance: |
Pass 1.5m(4.92ft) free fall test |
Waterproof and Dustproof |
IEC529 IP42 |
EMI |
EN8001par1 |
Laser Safety: |
Standard Class 2 |
Input Voltage |
DC 5V±5% |
Operating Current |
50mA (operating mode); 30mA (standby mode); 100mA (maximum peak) |
Quiescent Current |
20mA |
Scanner Size |
145mm × 65mm × 105mm |
Material |
ABS+PVC+PC |
Language |
English, German, French |
One Set Included
- 1 x Barcode Scanner
- 1 x USB Cable
- 1 x Instruction Manual
- Standard Factory Package
