Home > Chemicals > Paint & Coating > Building Coating > Epoxy Dipping Immersion Resin, Trickle Varnish

Epoxy Dipping Immersion Resin, Trickle Varnish

Name: Epoxy Dipping Immersion Resin, Trickle Varnish
Brand: Rota
SKU: 109944989

Epoxy Dipping Immersion Resin, Trickle Varnish thumbnail-1

Epoxy Dipping Immersion Resin, Trickle Varnish photo-1

US$ 4.65 - 7.85 MOQ: 100 Kilograms

Key Specifications

Get Latest Price

Main Raw Material:

Epoxy

Usage:

Appliance Paint, Electrical Insulating Varnish

Application Method:

Other, trickle/ drip

Contact Supplier Request Quote Chat Now

Jiaxing Rota-Ropa Insulating Material Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Main Raw Material Epoxy

Usage Appliance Paint, Electrical Insulating Varnish

Application Method Other, trickle/ drip

Brand Name Rota

Model Number R-1132-D3

Introduction

R-1132-D3 dipping immersion resin is a two-component varnish composed of epoxy resin, curing agent and styrene etc., the proportion of component A and B is 1/1 by weight. R-1132-D3 with the thermal class of B.

Features

Easy to use, good manufactruability, high mechanical strength, excellent electrical performance.

Applications

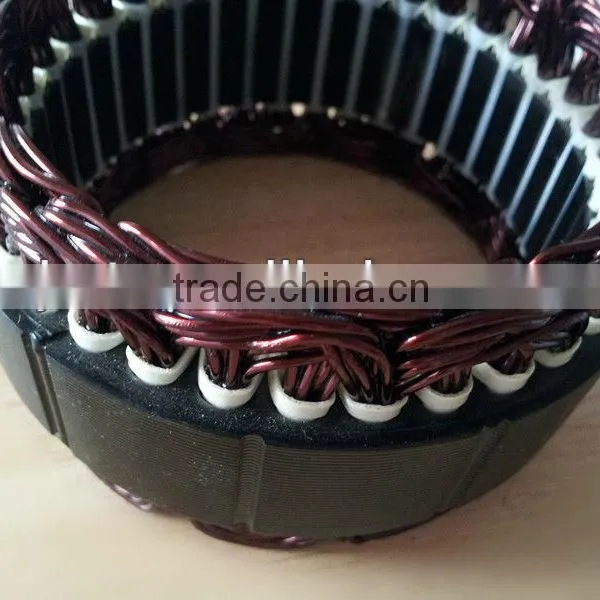

It is suitable for trickle and insulating treatment of electric tool motors and small and special electric machine rotors.

Qualification (as the Q/R 101-2010 company standard)

No.	Test Item	Test Method	Unit	Value
1	Appearance	Test Tube	-	Yellow brown transparent liquid
2	Viscosity	23±1°C, 4# Cup	s	30-80
3	Gel time	130±2°C	min	≥ 4
4	Dielectric strength	Normalcy	MV/m	≥20
4	Dielectric strength	After immersion in water	MV/m	≥20
5	Volume Resistivity	Normalcy	Ω·m	≥1×10¹³
5	Volume Resistivity	After immersion in water	Ω·m	≥1×10¹²
6	Pot life	23°C, no gel	h	≥48

Established in 1992, Rota Group is one of the most professional manufacturers of impregnating varnish, mica tape, potting resin and embedding resin in China. Most products have been approved by ISO9001, 14000, UL, TUV, FDA, RoHS and REACH, widely used in high-voltage motors, wires and cables, household appliances, industrial pumps, and metallurgy equipments etc. We win the trust of the majority of well-known manufactures, like BOSCH, BLACK & DECKER, Fujitsu, Shibaura, REGAL, Siemens, EPCOS, N.P.V. and so on.

Professional quality, creating value for customers. Rota Group lead in the aspects of industry scale, product technology and innovation capacity, we will provide quality products and professional services for you. Welcome you!
