Introduction
R-1038 resin is a modified varnish based on 1032 Melamine-Alkyd Impregnating varnish. It is made from amino resin, alkyd resin, drier and solvent. It presents in single-component form and with thermal class B. R-1038 complies with the RoHS environmental requirements.
Features
Low cost, good insulation performance, oil and arc resistance, fast fry, shining film.
Applications

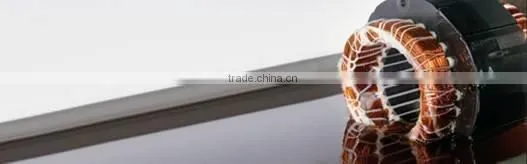

It is widely used and suitable for immersion of small and medium type motor winding, transformer, ballast and other apparatus coil. It’s not suitable for hermetic motor.
Qualification (as the Q/R 101-2010 company standard)
No. |
Test Item |
Test Method |
Unit |
Value |
1 |
Appearance |
Test Tube |
- |

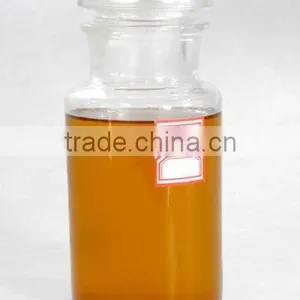

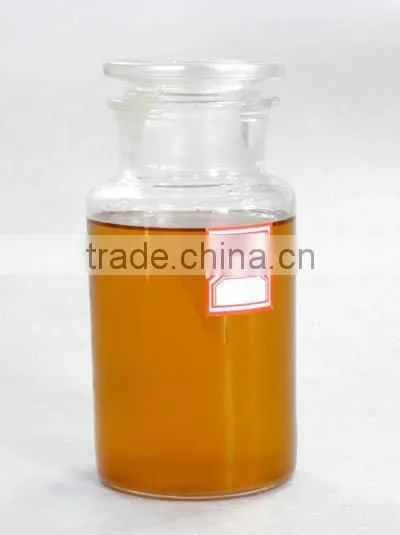

Reddish brown uniform liquid, no mechanical admixture |
2 |
Viscosity |
4#cup, 23±1°C |
s |
20-60 |
3 |
Solid content |
105±2°C,2h |
% |
40-50 |
4 |
Drying time |
105±2°C |
min |
≤30 |
5 |
Reaction of resin on enamel wire |
Hardness |
H |
≥1 |
6 |
Flexibility |
150±2°C,30h |
- |
No crack |
7 |
Curing in thick layer |
|
- |
No worse than S1U1I4,2, |
8 |
Power Frequency Electric Strength |
Normalcy |
MV/m |
≥70 |
After immersion in water |
≥60 |
|||
9 |
Volume Resistivity |
Normalcy |
Ω·m |
≥1×1012 |
After immersion in water |
≥1×1011 |
|||
Thermal state |
≥1×107 |
Established in 1992, Rota Group is one of the most professional manufacturers of impregnating varnish, mica tape, potting resin and embedding resin in China. Most products have been approved by ISO9001, 14000, UL, TUV, FDA, RoHS and REACH, widely used in high-voltage motors, wires and cables, household appliances, industrial pumps, and metallurgy equipments etc. We win the trust of the majority of well-known manufactures, like BOSCH, BLACK & DECKER, Fujitsu, Shibaura, REGAL, Siemens, EPCOS, N.P.V. and so on.
Professional quality, creating value for customers. Rota Group lead in the aspects of industry scale, product technology and innovation capacity, we will provide quality products and professional services for you. Welcome you!
