Help CenterEdible Oil Filtering Filtration Machine
Related Products
-
Mixing,mixed Oil FilterUS$ 1,050 - 1,350MOQ: 1 Set -
Bag Type Oil Filter MachineUS$ 850 - 1,210MOQ: 1 Set
-
Vertical Leaf Oil Filter MachineUS$ 1,250 - 3,500MOQ: 1 Set
-
Horizontal Leaf Oil Filter MachineUS$ 6,500 - 12,500MOQ: 1 Set
-
Hongyang Patent Horizontal Mixed Oil Filter in Vegetable Oil Extraction PlantUS$ 35,000 - 158,000MOQ: 1 Set

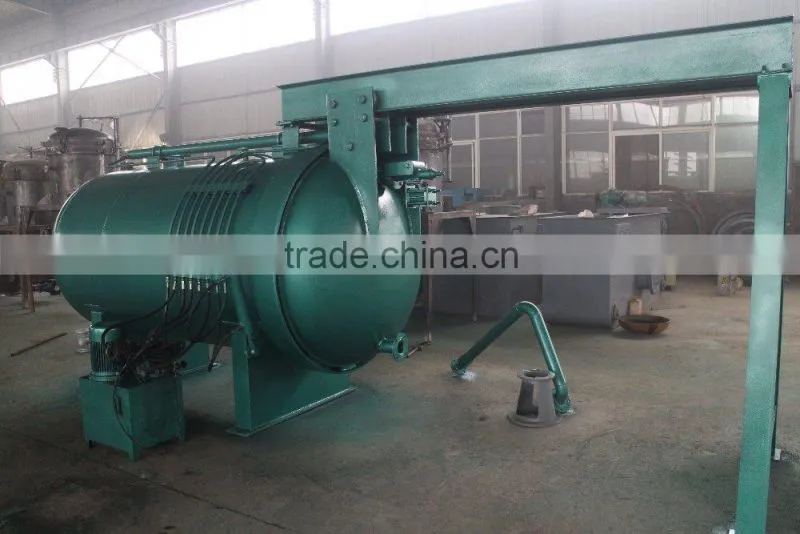

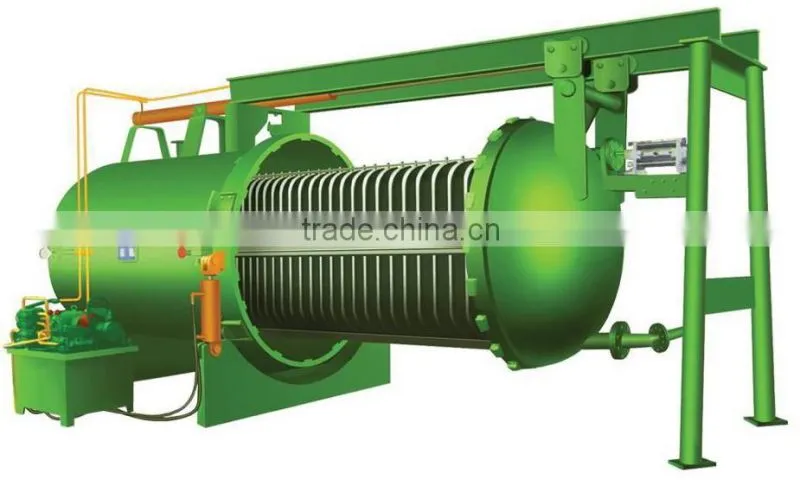

Horizontal Leaf Filter
Horizontal leaf filter is a kind of high efficiency,energy saving,airtight filtering precision clarification device
automatically.
It is widely used in chemical, petroleum, food, pharmaceutical and other industries.WYL type filter is in the
absorption of similar products at home and abroad on the basis of the production of modified: leaf net adopts
special stainless steel mesh, long service life,high precision.Leaf net scallop,big filter area,the velocity faster.
Improved the oil inlet direction to make cake forming fast, short cycle time. Automatic hydraulic system,
convenient and quick
Characteristics
(1) completely sealed filtration, no leakage, no environmental pollution
(2) the mesh plate automatic pull structure, convenient for observation and slag removal
(3) double filter, the filter has big filter area, capacity of large amount of slag
(4) vibration slag discharge, reduce the labor intensity
(5) the hydraulic control, to realize the automatic operation
(6) the device can make the large capacity, large areas of filtering system
Typical application
Dry cake, half dry cake and clarify the filtrate recycling.Chemical industry: sulphur, aluminum sulfate,
complex compound, plastic, dye intermediates, bleaching liquid, lubricating oil additives, polyethylene.
Food industry: sugar juice, grease, dewaxing, decoloring, skim.
Technical Parameter
Area System(m2) |
Diameter System |
working pressure |
working temperature(℃) |
dealing capacity(T/h.m2) |
|
5,10,15,20,25,30,35,40,45, |
900,1200,1400,1500, |
0.4 |
150 |
greaseresindrink |
0.20.70.8 |
50,60,70,80,90, |
1600,1700,1800, |
||||
100,120,140,160, |
2000 |
||||
180,200 |
|
||||
