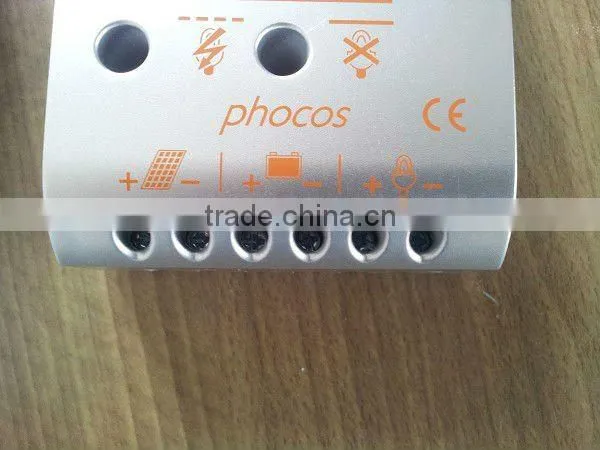

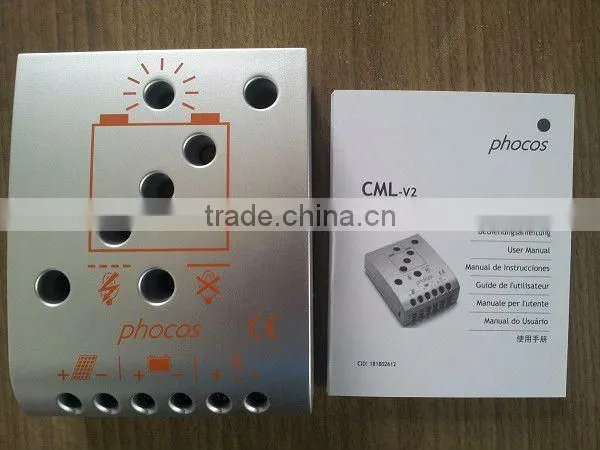

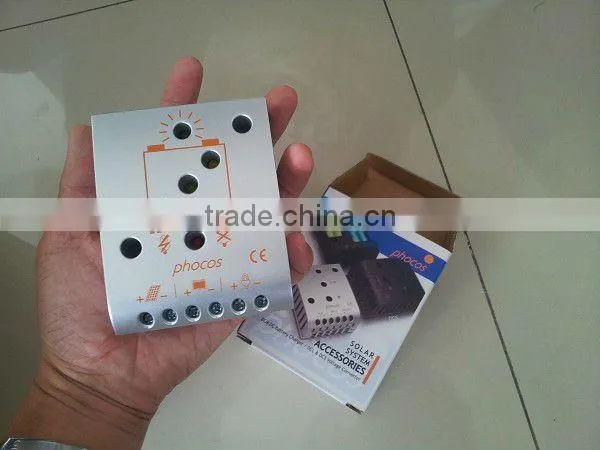

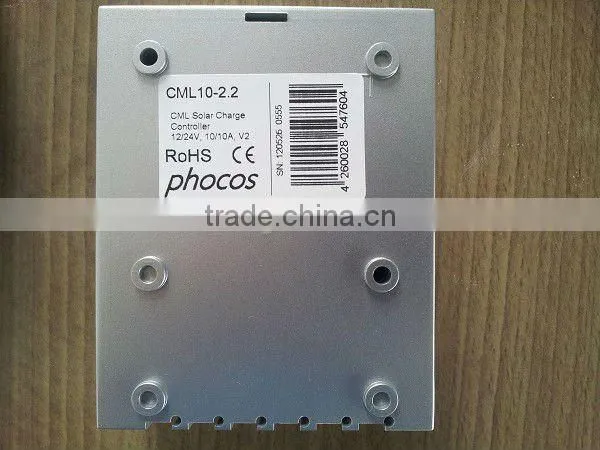

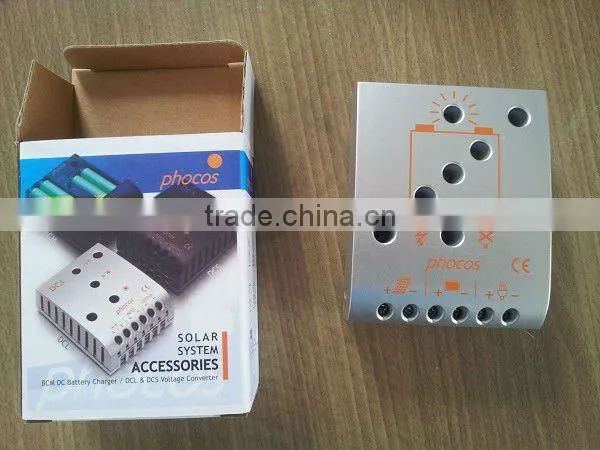

Phocos CML Solar Charge Controller

Name: Phocos CML Solar Charge Controller
Brand: Phocos
SKU: 110443207

US$ 20 - 60 MOQ: 50 Pieces

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

Phocos

Model Number:

CML

Qingdao Commercial Energy Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name Phocos

Model Number CML

Application Solar System Controller

Rated Voltage 12V

Maximum Current 5/8/10/15/20A

Specifications

Phocos CML solar charge controller
12/24V automatic detection
PWM regulation
LED dispaly
Integrated temperature compensation

Phocos CML solar charge controller

Ten times compensation for one fake.

The CML series is a sophisticated solar charge controller family for low cost applications. The electronic circuit is equipped with a microcontroller that provides high- efficiency charging technology together with a number of outstanding status display, warning and safety functions. The temperature-compensated three-stage PWM charging method (boost-equalization-float) is now adjustable tosealed and vented lead-acid batteries. The new version also allows an either SOC or voltage controlled low voltage disconnect function. The battery status is clearly indicated by three LEDs.
As the first controller on the market in this price range it comes with an acoustic low voltage load disconnect pre- warning feature.

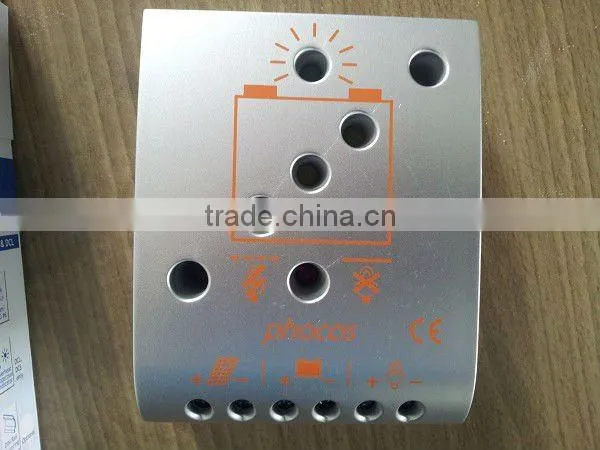

Battery State-of-Charge display with 3 LEDs
Acoustic load disconnect pre-warning
PWM-regulation (series type)
Boost, Equalize and Float charging, also for VRLA
Automatic 12/24 V detection
Integrated temperature compensation

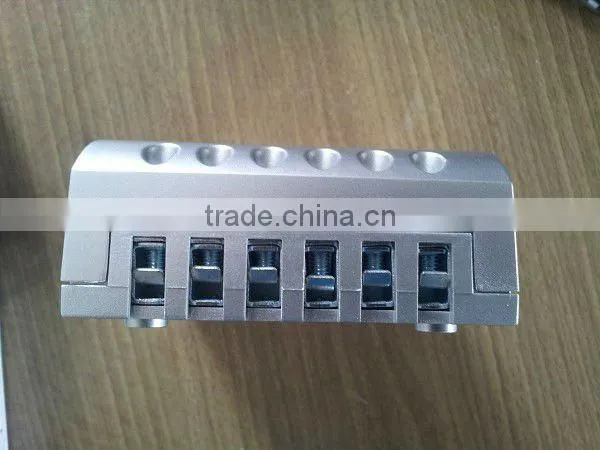

Large terminals (up to 16 mm² wire size)
SoC and voltage controlled LVD
Fully electronically protected

Phocos CML solar charge controller parameter:

Type	CML 05	CML 08	CML 10	CML 15	CML 20
System voltage	12/24 V auto recognition
Max. charge/load current	5 A	8 A	10 A	15 A	20 A
Floatcharge	13.7/27.4 V (25 °C)
Boostcharge	14.4 /28.8 V (25 °C), 2 Std. activation: battery voltage < 12.3/24.6 V
Equalization	14.8/29.6 V (25 °C), 2 Std. activation: battery voltage < 12.1/24.2 V
Deep discharge protection: State of charge dependent Voltage dependent Reconnect level	11.4 – 11.9 V / 22.8 – 23.8 V 11.0/22.0 V 12.8/25.6 V
Overvoltage protection	15.5/31.0 V
Undervoltage protection	10.5/21.0 V
Max. panel voltage (Overvoltageprotection by varistor)	30 V in 12 V system 50 V in 24 V system
Temperaturecompensation (Charge voltage)	−25 mV/K at 12V −50 mV/K at 24V
Max. self consumption	< 4 mA
Grounding	positive grounding possible
Ambienttemperature	−40 to +50 °C
Max. height	4,000 m above sea level
Batterytype	lead acid (GEL, AGM, flooded)
Wire cross section	< 16 mm2
Weight	160 g
Dimensions (W x H x D)	80 x 100 x 32 mm
Typeof protection	IP22
