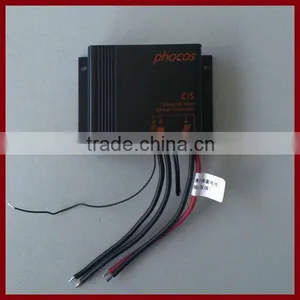

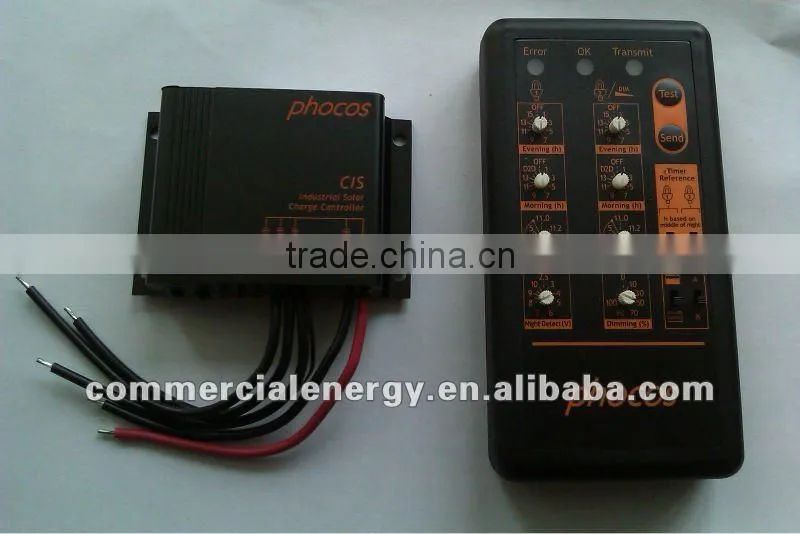

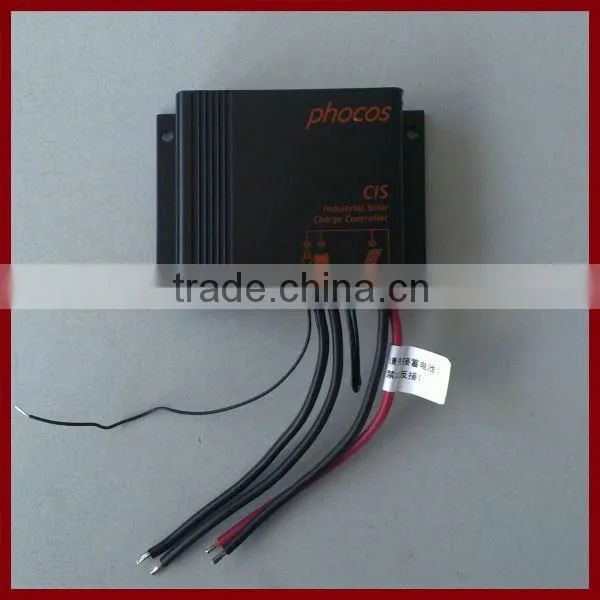

Phocos 12V 24V Solar Street Light Charge Controller

Name: Phocos 12V 24V Solar Street Light Charge Controller
Brand: Phocos Solar Charge Controller
SKU: 110443357

Negotiable MOQ: 50 Sets (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

China

Brand Name:

Phocos Solar Charge Controller

Model Number:

CIS 20

Qingdao Commercial Energy Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin China

Brand Name Phocos Solar Charge Controller

Model Number CIS 20

Application Lighting Controller

Rated Voltage 12V

Maximum Current 20 A

Specifications

Solar Street Light Charge Controller
1.Anti-corrosion
2.Low voltage disconnect
3.Flexible load timer function

12V 24V Phcos Solar Controller

Specification of CIS20 Phocos Solar Controller

Type	CIS 20 CIS -2L 20
System Voltage	12/24 V auto recognition
Max. Charge/Load Current	20 A
Float Charge	13.8/27.6 V(25°C)
Main Charge	14.4/28.8V (25°C),30 min (daily)
Boost Charge	14.4/28.8V (25°C), 2h activation:battery voltage< 12.3/24.6V
Equalization	14.4/28.8V (25°C), 2Std. activation:battery voltage< 12.1/24.2 V( at least every 30 days)
Deep Discharge Protection Cut-off Voltage Reconnect Level	11-12 V/ 22- 24 V 12.8/25.6 V
Overvoltage Protection	15.5/31.0 V
Undervoltage Protection	10.5/21 V
Max.Panel Voltage (Overvoltage Protection by Varistor)	55 V
Temperature Compensation(Charge Voltage)	-25 mV/Kat 12 V -50 mV/Kat 24 V
Max.Self Consumption	5-8 mA at 12V 6-10mA at 24V
Grounding	Positive ground possible
Ambient Temperature	-40 to 60°C
Max.Height	4,000m above sea level
Battery Type	Lead acid (GEL, AGM, flooded)
Adjustment Range:Evening/Morning Hours Night/ Day Detection	0-15 h/0- 14 h 2.5 – 10 V
Wire Length	10 cm
Dimensions(B×H×T)	82×58×20 mm
Weight	150 g
Wire Cross Section	2.5 mm²
Type of Protection	IP 68 (1.5 m,72 h)
