Specifications

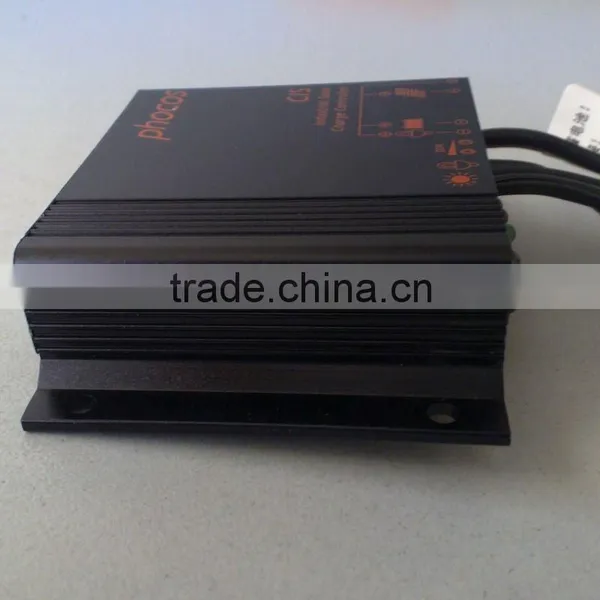

Phocos Dual Load Solar Charge Controller1.Robust Aluminum Housing
2.Expoxy Encapsulated PCB to Prevent Corrosion
Phocos Dual Load Solar Charge Controller
- Features of solar charge controller
1.Robust Aluminum Housing.
2.Expoxy Encapsulated PCB to Prevent Corrosion.
3.Compact Size.
4.Infrared Remote Control Programming Accessory.
5.Intelligent Timer Functions.
6.Widely Programmable.
7.External Temperature Sensor(Optional).
8.4 Stage Battery Charging (Main, Float, Boost, Equalization).
9.Dual load or Dimmable Load Output.
10.Automatic System Voltage Recognition(12V/2V).
CIS is an industrial-grade charge controller that is suitable for all practical PV applications. High-quality, 4-stage PWM-charging is combined with amazing features such as: low-voltage disconnect, flexible load timer functions, and a multi-LED system status display.
The CIS has no moving parts, switches or buttons. Settings such as battery type, deep discharge thresholds, timers, etc. are made quickly and easily via infrared remote control accessory.
All devices are connected to the controller by supplied lead wires rather than wire terminals. This feature eliminates the risk of damage from external influences (corrosion, dust, water, bugs, chemicals, physical shock) where components make electrical contact to the controller.
The extremely compact aluminum housing even allows for mounting CIS inside street light poles. CIS was developed in accordance with well-established Phocos standards incorporating the latest technology, highest-quality and best possible cost/performance ratio.
- Parameter of solar charge controller
Type |
CIS 05 CIS -2L 05 |
System Voltage |
12/24 V auto recognition |
Max. Charge/Load Current |
5A |
Float Charge |
13.8/27.6 V(25°C) |
Main Charge |
14.4/28.8V (25°C),30 min (daily) |
Boost Charge |
14.4/28.8V (25°C), 2h activation:battery voltage< 12.3/24.6V |
Equalization |
14.4/28.8V (25°C), 2Std. activation:battery voltage< 12.1/24.2 V( at least every 30 days) |
|
Deep Discharge Protection Cut-off Voltage Reconnect Level |
11-12 V/ 22- 24 V 12.8/25.6 V |
Overvoltage Protection |
15.5/31.0 V |
Undervoltage Protection |
10.5/21 V |
|
Max.Panel Voltage (Overvoltage Protection by Varistor) |
55 V |
Temperature Compensation(Charge Voltage) |
-25 mV/Kat 12 V -50 mV/Kat 24 V |
Max.Self Consumption |
5-8 mA at 12V 6-10mA at 24V |
Grounding |
Positive ground possible |
Ambient Temperature |
-40 to 60°C |
Max.Height |
4,000m above sea level |
Battery Type |
Lead acid (GEL, AGM, flooded) |
Adjustment Range:Evening/Morning Hours Night/ Day Detection |
0-15 h/0- 14 h 2.5 – 10 V |
Wire Length |
10 cm |
Dimensions(B×H×T) |
82×58×20 mm |
Weight |
150 g |
Wire Cross Section |
1.5 mm² |
Type of Protection |
IP 68 (1.5 m,72 h) |
- Technical Data Output:
Dimming Value:0 – 100% output power
Dimming Output Voltage:0 – 5 V (max, 1mA)
