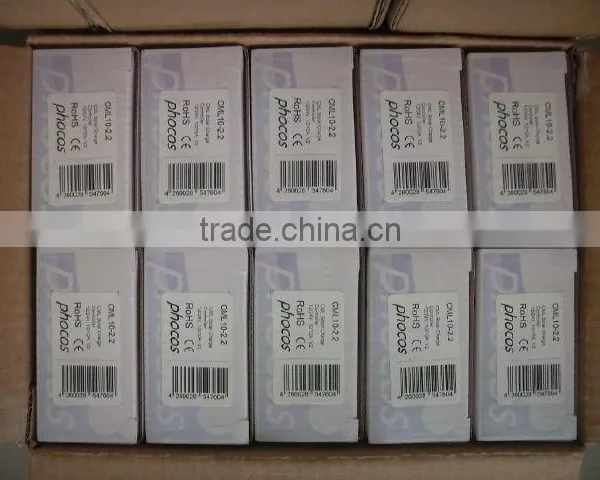

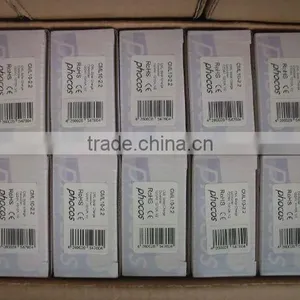

Phocos CML10 Solar Charge Controller

Name: Phocos CML10 Solar Charge Controller
Brand: Phocos
SKU: 110443497

Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

Phocos

Model Number:

CML10

Qingdao Commercial Energy Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name Phocos

Model Number CML10

Specification Normal

Application Commercial

Specifications

Solar Charge Controller
1.Brand name: Phocos
2.Battery charging with 3LEDS
3.12/24V auto detection
4.PWM-regulation

TYPE	CML 05	CML08	CML10	CML15	CML20
System voltage	12/24 V auto recognition
Max. charge/load current	5A	8A	10A	15A	20A
Float charge	13.7/27.4 V (25 °C)
Boost charge	14.4 /28.8V (25 °C), 2 Std. activation: battery voltage < 12.3/24.6 V
Equalization	14.8/29.6 V (25 °C), 2 Std. activation: battery voltage < 12.1/24.2 V
Deep discharge protection:
State of charge dependent	11.4-11.9 V/ 22.8- 23.8 V
Voltage dependent	11.0/22.0 V
Reconnect level	12.8/25.6 V
Overvoltage protection	15.5/31.0 V
Undervoltage protection	10.5/21.0 V
Max. panel voltage	30 V in 12 V system
(Overvoltage protection by varistor)	50 V in 24 V system
Temperature compensation	−25 mV/K at 12V
(Charge voltage)	−50 mV/K at 24V
Max. self consumption	< 4 mA
Grounding	positive grounding possible
Ambient temperature	−40 to +50 °C
Max. height	4,000 m above sea level
Battery type	lead acid (GEL, AGM, flooded)
Wire cross section	< 16 mm2
Weight	160 g
Dimensions (W x H x D)	80 x 100 x 32 mm
Type of protection	IP22
