Home > Metallurgy, Mineral & Energy > Solar & Renewable Energy > Solar Controller > Phocos 12V/24V CX Series (10A,20A,40A) Solar Charge Controller With LCD Display

Phocos 12V/24V CX Series (10A,20A,40A) Solar Charge Controller With LCD Display

Name: Phocos 12V/24V CX Series (10A,20A,40A) Solar Charge Controller With LCD Display
Brand: Phocos
SKU: 110443569

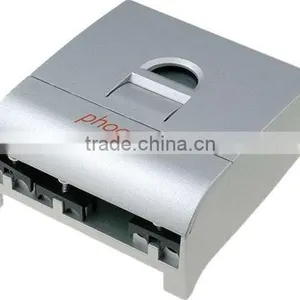

Phocos 12V/24V CX Series (10A,20A,40A) Solar Charge Controller With LCD Display thumbnail-1

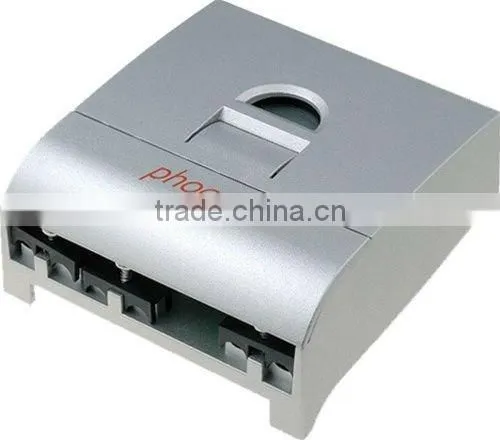

Phocos 12V/24V CX Series (10A,20A,40A) Solar Charge Controller With LCD Display photo-1

Negotiable MOQ: 50 Sets (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Shandong, China

Brand Name:

Phocos

Model Number:

CX10,20,40

Contact Supplier Request Quote Chat Now

Qingdao Commercial Energy Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shandong, China

Brand Name Phocos

Model Number CX10,20,40

Application Charger Controller

Rated Voltage Other, 12V/24V auto recognition

Maximum Current 10/20/40A

Specifications

1.LCD display
2. Load status indication
3. Full electronic protection
4.Programmable nightlight function
5.Brand: Phocos

Phocos CX (10A,20A,40A) Solar Charge Controller with LCD Display

Feature:

1.LCD display

2. Display indicates charge and discharge status

3.Load disconnect prewarning by acoustic signal

4. Load status indication

5. Choose among five load disconnect algorithms

6.Four-stage PWM charging algorithm with integrated

7.temperature compensation

8. Protected terminals (up to 16 mm2 wire size)

9. Full electronic protection

10.Programmable nightlight function

The CX series offers outstanding features in this class. In addition to sophisticated PWM charge regulation with integrated temperature compensation, the CX controllers provide substantial display, programming, and safety functions. The battery state of charge is clearly displayed by means of a bar graph, as well as energy flow from and to the battery and the load status (e.g. overload, load short circuit).

The deep discharge protection function can be set to five different modes: two voltage-controlled, two SOC-cont- rolled, or one adaptive (battery deep discharge protection). Acoustic alarms are built in and a programmable nightlight function as well. The CX-DR can optionally be used for DIN rail mounting.

Specification:

Type	CX 10	CX 20	CX 40
System voltage	12/24 V auto recognition
Max. charge/load current	10 A	20 A	40 A
Float charge	13.7/27.4 V (25 °C)
Main charge	14.4/28.8 V (25 °C), 30 min. (daily)
Boost charge	14.4/28.8 V (25 °C), 2 h Activation: battery voltage < 12.3/24.6 V
Equalization	14.8/29.6 V (25 °C), 2 h Activation: battery voltage < 12.1/24.2 V
Deep discharge protection: State-of-charge dependent Voltage dependent Adaptive Reconnect level	A: 11.4 – 11.9 V / 22.8 – 23.8 V B: 11.0 – 11.75 V / 22.0 – 23.5 V A: 11.0/22 V B: 11.5/23 V 11.0 – 12.2 V / 22.0 – 24.4 V 12.8/25.6 V
Overvoltage protection	15.5/31.0 V
Undervoltage protection	10.5/21.0 V
Max. panel voltage (Overvoltage protection by varistor)	30 V in 12 V system 50 V in 24 V system
Temperature compensation (Charge voltage)	−25 mV/K at 12 V −50 mV/K at 24 V
Own consumption	< 4 mA
Grounding	Positive grounding possible
Ambient temperature	−20 to +50 °C
Max. height	4,000 m above sea level
Battery type	Lead acid (GEL, AGM, flooded)
Wire cross section	Up to 16 mm2
Weight	168 g		179 g
Dimensions (W x H x D)	92 x 93 x 38 mm
Type of protection	IP22
