Specifications
1.rotary table blastingpetitive price
mpt delivery
4.suitable for flat pieces,bearing,gears
Qingdao Antai Heavy Industry Machinery Co., Ltd.
Founded in 2003, 10 years experience for making shot blasting machine.
A group company,having real estate, machinery and leather bags industry.
Eight experienced engineers to consider every possibility for customers.
Three of them has over 25 years knowledge of shot blasting technology.
3D software for auxiliary design. Show every design details in front of you.
Experienced technicians for production, installation, commissioning & service.
ISO 9001:2008 certified company, CE certificate will be issued soon.
All machining parts out sourced from professional CNC machining company with strict quality control procedure.
Own foundry to produce special material spare parts for our machines.

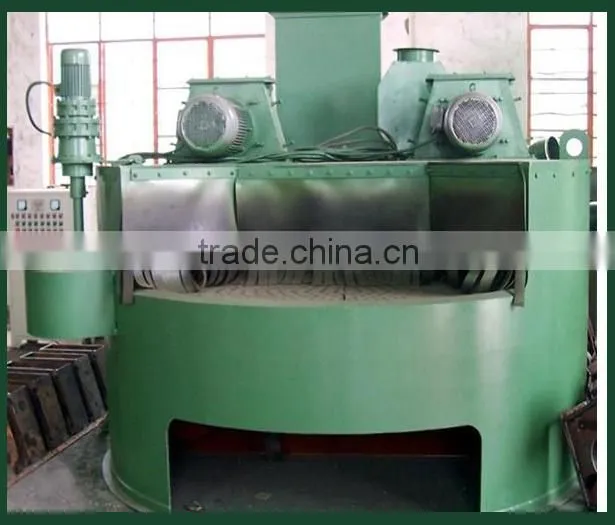

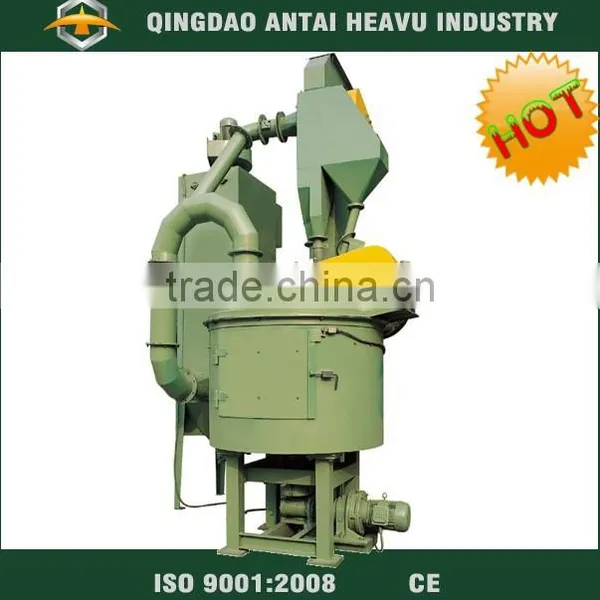

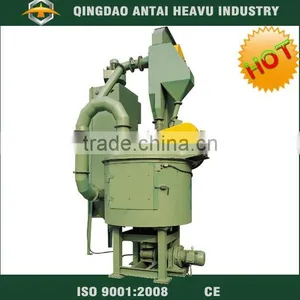

rotary table shot blasting machine :
The rotating table shot-blasting machines are the most simple, versatile and economic solution to the surface treatment needs.
General Introduction:
The rotating table shot-blasting machines are the most simple, versatile and economic solution to the surface treatment needs.

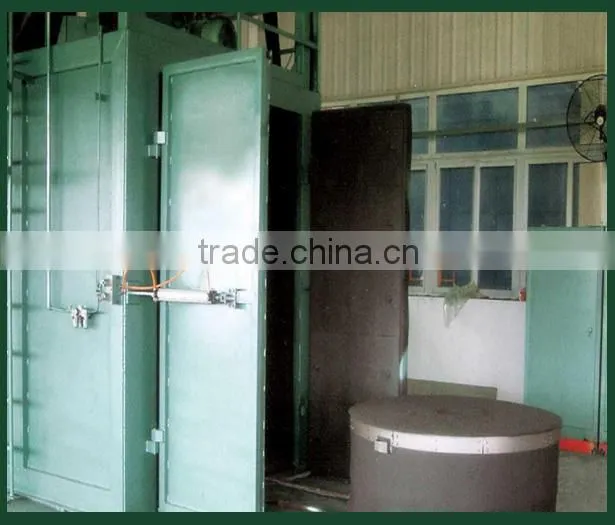

The parts are loaded on the rotating table: their lateral and top surfaces are subject to the shots thrown by the turbines.
The table diameter can vary from 500 to 2500mm, with a load capacity up to 1500 Kg.
The machine does not require a pit, and is supplied complete with a self-cleaning dry cartridges dust collector.
Cleaning of dies, and forgings, castings, welded and braised parts.
Technical Specification:
| Type | Metal part dimension |
Load (kg) |
Shot volume (kg/min) |
elevator capacity (t/h) |
Separator capacity (t/h) |
Air volume (m3/h) |
Motor power (kw) |
Outline dimension |
| Q3512 | 600x250x250 | 400 | 200 | 15 | 15 | 2400 | 17.3 | 1500x3450x3780 |
| Q3525 | 1000x500x250 | 1000 | 2x250 | 30 | 30 | 6200 | 35.2 | 2200x3500x4300 |
Other technique parameter:
| No. | Model Item |
Q765C | Q7610 | Q7620 | Q7630 | Q7640 | Q7650 | Q7660 | Q76120 | |
| 1 | Size of workpiece | mm | Φ2000 *730 |
Φ2500* 860 |
Φ2500* 1100 |
Φ3700* 980 |
Φ4000* 1120 |
Φ4850* 1280 |
Φ5000* 1280 |
Φ7000* 1500 |
| 2 | Load capacity | kg | 5000 | 10000 | 20000 | 30000 | 40000 | 50000 | 60000 | 120000 |
| 3 | Abrasive flow rate | kg/m | 2*250 | 3*250 | 4*250 | 5*250 | 6*250 | 6*250 | 7*250 | 10*250 |
| 4 | Air pressure | Mpa | 0.5-0.6 | 0.5-0.6 | 0.5-0.6 | 0.5-0.6 | 0.5-0.6 | 0.5-0.6 | 0.5-0.6 | 0.5-0.6 |
| 5 | Air consumption | M3/m | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 |
| 6 | Elevating amount | t/h | 30 | 45 | 60 | 75 | 90 | 90 | 105 | 150 |
| 7 | Separating amount | t/h | 30 | 45 | 60 | 75 | 90 | 90 | 105 | 150 |
| 8 | Ventilation capacity | M3/h | 16000 | 20000 | 25000 | 30000 | 35000 | 35000 | 40000 | 60000 |
| 9 | Power(no dust collector) | kw | 54 | 72 | 91 | 115 | 148 | 162 | 188 | 280 |
| 10 | Outline dimension |
mm | 9000* 5200* 9290 |
14900* 5500 *8100 |
16900* 6540 *10028 |
9168* 7680 *10874 |
15000* 8200 *11000 |
15800* 8600 *11960 |
16800* 8670 *11800 |
26000* 15000 *11000 |
