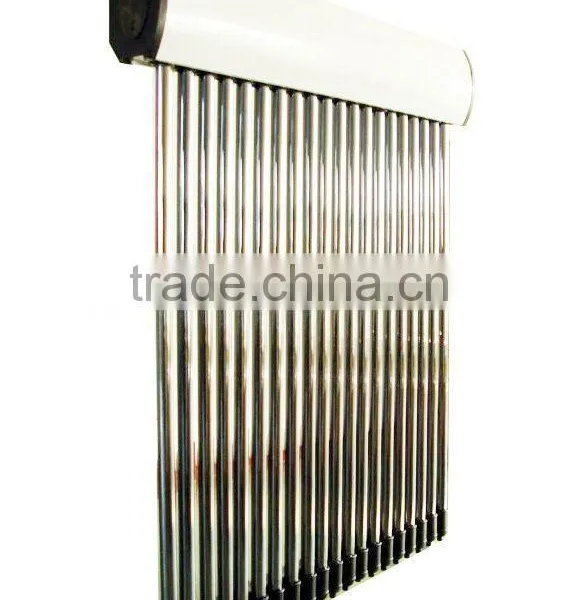

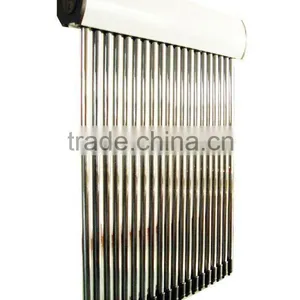

All-glass Heat Pipe Collector
Negotiable
MOQ: 100 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
GuangPu
Model Number:
58/1800-2/20,47/1500-2/20
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
All-glass Heat Pipe CollectorNegotiableMOQ: 100 Sets -
Solar CollectorUS$ 90 - 100MOQ: 10 Units
-
Double-vacuum All-glass Solar Collector HeaterUS$ 200 - 400MOQ: 5 Units
-
Double-vacuum All-glass Solar Collector HeaterUS$ 200 - 400MOQ: 5 Units
-
Solar Energy Project (double Vaccum Tube)US$ 1,800 - 2,500MOQ: 2 Tons
Place of Origin
Shandong, China
Brand Name
GuangPu
Model Number
58/1800-2/20,47/1500-2/20
Type
Vacuum Solar Collector
Application
Water Heater
Pipe Material
Glass
Specifications
All-glass heat pipe collector,Start fast, too high heat, pressure, antifreeze, unidirectional heat conduction
Outer Tank |
white pearlescent platethickness: δ=0.32mm |
Inner Tank |
aluminum alloy; preservative treatment |
Insulation |
polyurethane foaming; thickness: δ=5mm |
Dimension |
Φ47:1640/280/180mm |
Φ58:1830/280/180mm | |
Heating surface area |
Φ47 /2.46m2; Φ58/3.29m2 |
Distance between each two tubes |
80mm |
Weight |
Φ47 /10.4kg; Φ58/13.2kg |
Capacity |
Φ47 /7L; Φ58/7.25L |
NOS of evacuated tubes |
20 pieces |
Max. Working Pressure |
10 KG |
Max. stagnation temperature |
250∼280 |
Allglass collector tube | |
Material |
borosilicate glass 3.3 |
Dimension |
47/37/1.6/1500; 58/47/1.6/1800mm |
Color |
blue |
Selective absorber coating |
copper/stainless steel/aluminum |
Vacuum degree |
P≤5.0×10-3(Pa) |
