Red Diamond Solar Water Heater
US$ 200 - 300
MOQ: 100 Units
Key Specifications
Get Latest Price
Type:
Other, Evacuated Tube, Evacuated Tube
Housing Material:
Plastic
Certification:
CE
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
All-glass Solar Collector HeaterUS$ 160 - 400MOQ: 10 Pieces -
Double-vacuum All-glass Solar Collector HeaterUS$ 270 - 400MOQ: 10 Pieces
-
Full-glass Double-vacuum Shenzhou 7 Light Gathering SeriesUS$ 160 - 300MOQ: 10 Units
-
Compact Solar Water HeaterUS$ 160 - 400MOQ: 10 Pieces
-
China Patented Split Double Vacuum Heat Pipe Solar Water HeaterUS$ 160 - 400MOQ: 10 Pieces
Type
Other, Evacuated Tube, Evacuated Tube
Housing Material
Plastic
Certification
CE
Capacity
200
Place of Origin
Shandong, China
Brand Name
SHANDONG GUANGPU
Model Number
58-1800-20
Specifications

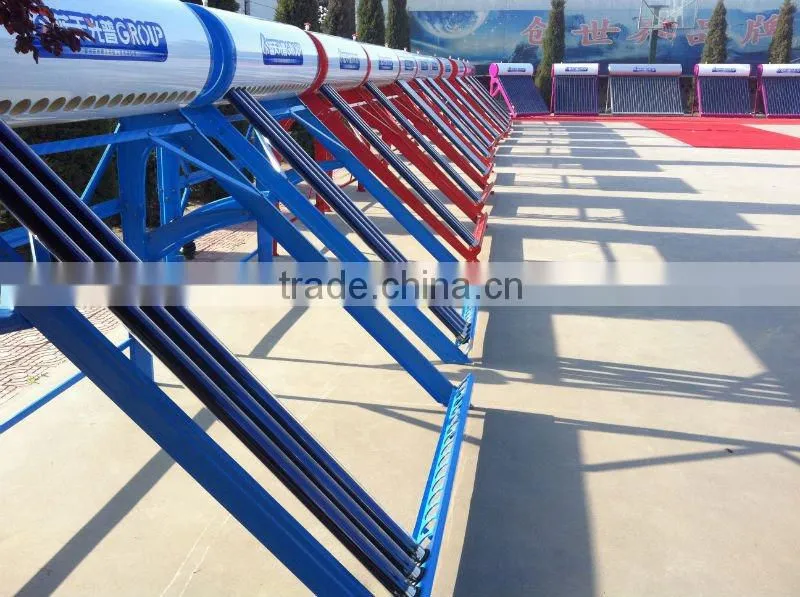

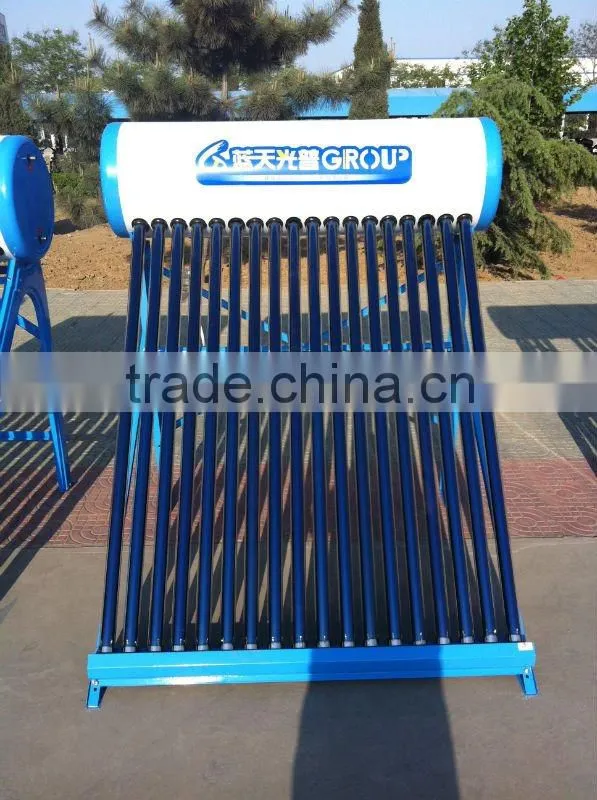

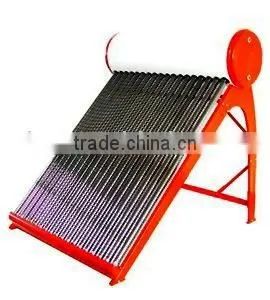

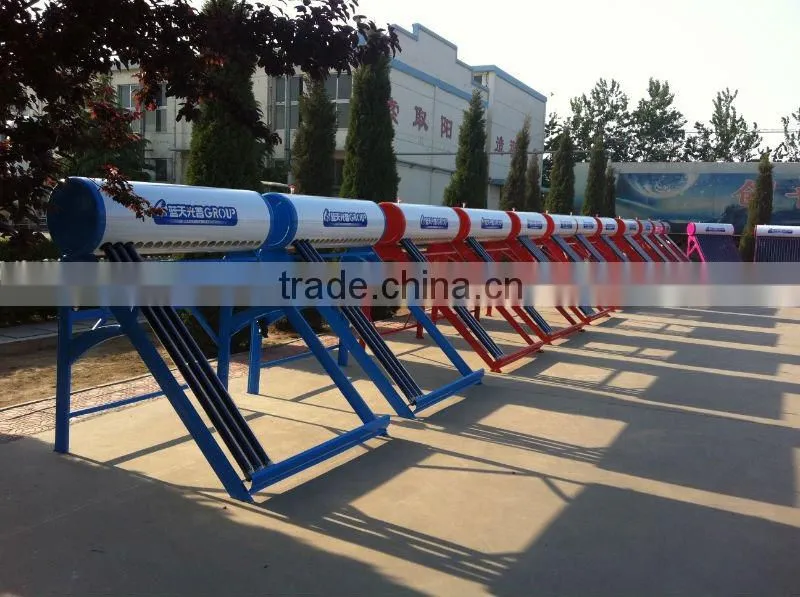

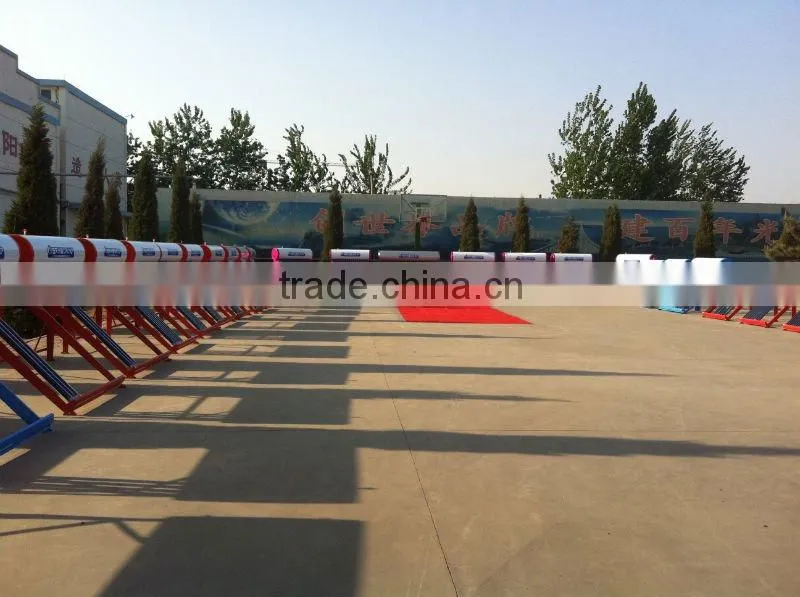

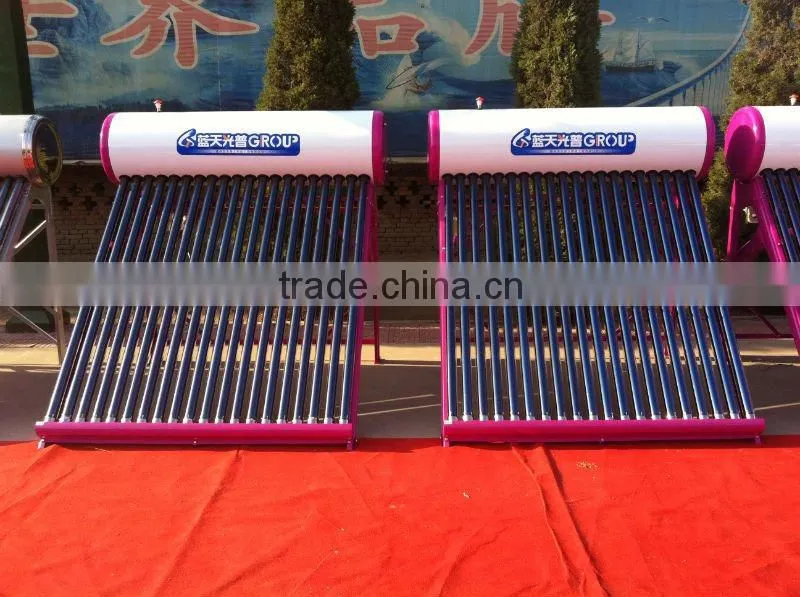

Red Diamond solar water heater
Typespecification |
TZR47/1500-16C |
TZR47/1500-18C |
TZR47/1500-20C |
TZR58/1800-16C |
TZR58/1800-18C |
TZR58/1800-20C |
Numbers of vacuum tubes |
16 |
18 |
20 |
16 |
18 |
20 |
Glass tube material |
borosilicate glass 3.3 |
|||||
Material selective absorber layer |
SS-C/Cu | Cu SS-ALN(H)/SS-ALN(L)/ALN |
|||||
|
Glass tube (ext./int./wall thickness)(mm) |
47/37/1.6 |
47/37/1.6 |
47/37/1.6 |
58/47/1.6 |
58/47/1.6 |
58/47/1.6 |
Glass tube length(mm) |
1500 |
1500 |
1500 |
1800 |
1800 |
1800 |
Distance between two tubes(mm) |
70 |
70 |
70 |
76 |
76 |
76 |
Tank Capacity |
90 |
101 |
112 |
128 |
144 |
159 |
Gross Weight(kg) |
29 |
31 |
32 |
39 |
42 |
45 |
Package Dimensions(LxWxD)(mm) |
1310x450x490 |
1450x450x490 |
1590x450x490 |
1400x490x530 |
1550x490x530 |
1700x490x530 |
QTY in20GP/40GP/40HC(sets) |
54/115/133 |
41/89/101 |
37/81/93 |
37/77/83 |
35/75/79 |
35/65/71 |
