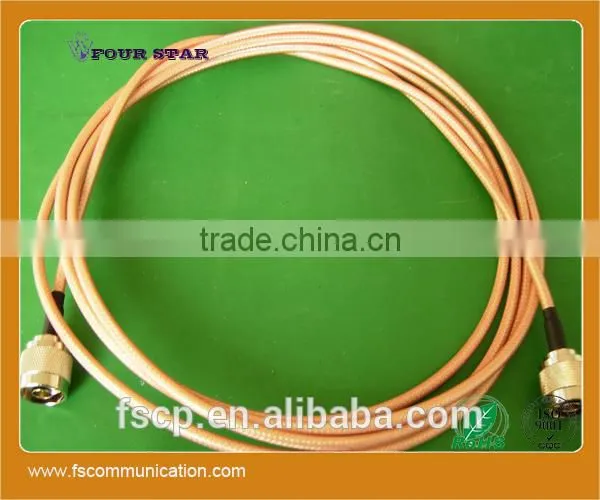

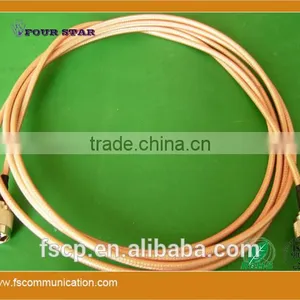

RG142 Cable Assembly With N Male Crimp Connectors
US$ 8.53 - 8.99
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Four Star
Model Number:
N-C-J142/N-C-J142-3000
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
RG142 Cable Assembly With SMA Male Right Angle Crimp to N Female Bulkhead Crimp ConnectorsUS$ 6.36 - 6.82MOQ: 100 Pieces -
RG142 Cable Assembly With BNC Male Crimp ConnectorsUS$ 3.72 - 4.19MOQ: 100 Pieces
-
1/2'' Foam Feeder Cable Assembly With 7/16 Male to 7/16 Male ConnectorUS$ 5.12 - 5.59MOQ: 100 Pieces
-
1/4'' Superflexible Cable Assembly With N Male to N Male ConnectorUS$ 4.03 - 4.81MOQ: 100 Pieces
-
1/2'' Superflexible Cable Assembly With N Male to N Male ConnectorUS$ 3.26 - 4.03MOQ: 100 Pieces
Place of Origin
Jiangsu, China
Brand Name
Four Star
Model Number
N-C-J142/N-C-J142-3000
Type
Coaxial
Number of Conductors
1
Product Description
| 3000mm RG142 Cable Assembly with N Male Crimp Connectors On Both Ends | ||
| Model No. | N-C-J142/N-C-J142-3000 | |
| Connector Type | A Side: N Connector Male Crimp for RG142 Cable | |
| B Side: N Connector Male Crimp for RG142 Cable | ||
| Cable Type(Name) | RG142 Cable | |
| Cable Length | 3000mm (Customized Length Available) | |
| Connector Interface | IEC 60169-16 | |
| Typical Frequency Range | DC-8GHz | |
| VSWR | ≤1.30@DC-6GHz | |
| Intermodulation 3rd (PIM3) | — | |
| Durability | ≥500 cycles | |
| Parts Name | Material | Plating |
| Body | Brass | Ni |
| Insulator | PTFE | — |
| Inner Conductor | Phosphor Bronze | Au |
| Coupling Nut | Brass | Ni |
| Gasket | Silicone Rubber | — |
| Ferrule | Brass | Ni |
| Operating Temperature | _45 ℃-85 ℃ | |
| Weatherproof Rate | IP67 | |
| RoHs (2002/95/EC) | Compliant by exemption | |
