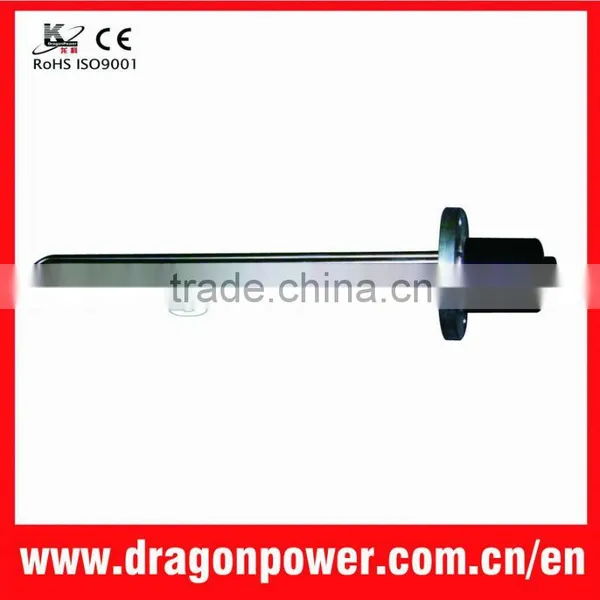

Help CenterElectric Tubular Heating Element
Related Products
-
Made to Order Manufacturer Immersion Electric Heating TubesUS$ 3 - 30MOQ: 2 Pieces -
Tubular Immersion HeatersUS$ 1.2 - 100.5MOQ: 2 Pieces
-
Water Immersion Electric Coil Heater ElementUS$ 1.2 - 10.5MOQ: 2 Pieces
-
Various Heating TubeUS$ 1.2 - 10.5MOQ: 2 Pieces
-
Tube Heater ( Suzhou Manufacturer)US$ 1.2 - 10.5MOQ: 2 Pieces
Specifications
Heating element:1. Cr20Ni80 wire
2. HIgh density heaters
3. ISO9001, CE and RoHS
4. Various types and sizes to your needs
Description:
Tubular heaters are mainly used in aerospace, petrochemical, rubber and plastics industries, and the like. It can be used to heat still or flowing air, water, oil, nitrate, alkali and other kinds of liquid. It can also be used to melt light metal or to heat metal moulds. It has advantages such as simple structure, long lifetime, high thermal efficiency, reliable and safe operation and so on.
Table:
Model |
Dimension(mm) |
Voltage(V) |
Power(W) |
Key Technical Indexes |
LK-GZ-Φ12Χ1000 |
Φ12Χ1000 |
220 |
2000 |
1.Use condition: environment temperature -20~+60°C, Relative temperature <95% 2.Leakage current:<0.5MA 3.Insulation resistance:≥5Mo 4.Ground resistance:<0.1o 5.Voltage resistance: no electric breakdown for 1 minute under 1500V 6.Temperature endurance:100-1200°C |
LK-GZ-Φ14Χ1500 |
Φ14Χ1500 |
220 |
3000 |
|
LK-GZ-Φ16Χ2000 |
Φ16Χ2000 |
220 |
4000 |
|
LK-GZ-Φ20Χ1600 |
Φ20Χ1600 |
220 |
4500 |
|
Note: Other models are available according to your specifications. Please refer to the Order Guide | ||||
Order Guide:
Please specify the following when ordering:
- Diameter (mm) of tubular heaters
- Total length of heaters when extended (mm)
- Type of leads and length
- Voltage and power density
- Content of the stamping if needed
- Order quantity
- Delivery date

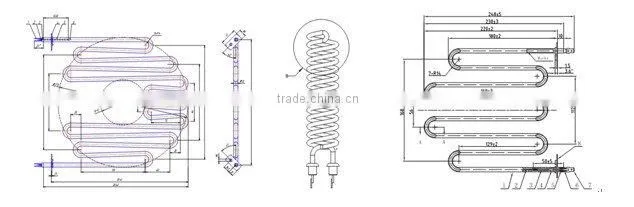

* As it is difficult to see the internal construction of tubular heaters, it’s better to provide us with the drawings/pictures
