Home > Packaging & Printing > Packing Machinery > Multi-Function Packing Machine > Pallet Packaging Machine,pallet Packing Machine

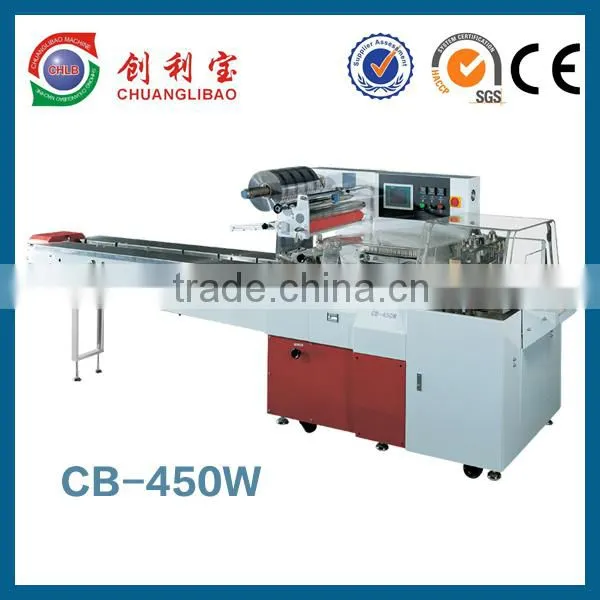

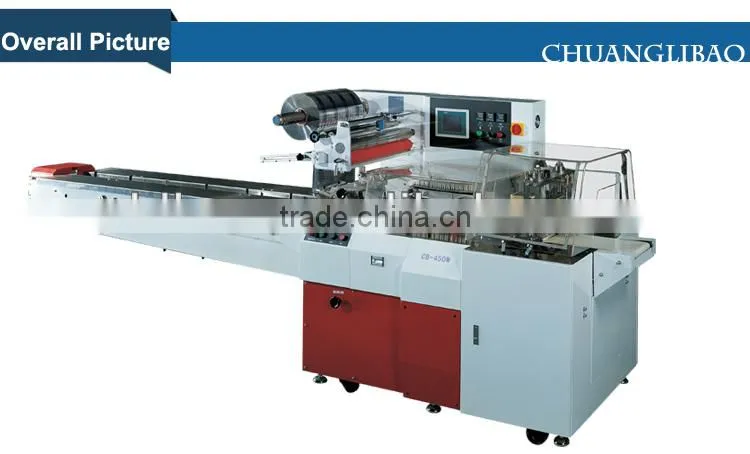

Pallet Packaging Machine,pallet Packing Machine
US$ 15,500 - 20,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
Used
Year:
2012
Application:
Chemical, Commodity, Food, Other, Medical, Textiles, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
Payment & Shipping
Payment Methods:
Port of Shipment:
FS/GZ/SZ
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Automatic Chicken Horizontal Packing Machine PriceUS$ 7,830 - 9,200MOQ: 1 Set -
Film Width 280Mm Automatic Manual Soap Wrapping MachineUS$ 6,750 - 9,500MOQ: 1 Set
-
200Bags/Min Film Width 320Mm Cookie Packaging MachineUS$ 5,000 - 6,500MOQ: 1 Set
-
Automatic Chocolate Flow Wrapper Packing MachinesUS$ 4,500 - 5,000MOQ: 1 Set
-
High Efficiency Pillow Fancy Soap Packaging MachineryUS$ 10,850 - 30,000MOQ: 1 Piece
Condition
Used
Year
2012
Application
Chemical, Commodity, Food, Other, Medical, Textiles, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
Packaging Type
Bags, Film
Packaging Material
Plastic, Wood
Automatic Grade
Automatic
Driven Type
Electric
Voltage
220V
Power
5.5KW
Place of Origin
Guangdong, China
Brand Name
chlbao
Model Number
CB-450W
Weight
960
Dimension(L*W*H)
3980*860*1580
Certification
CE,GSG,BV
After-sales Service Provided
Engineers available to service machinery overseas
pallet packaging machine,pallet packing machine
Scope of application:
Packing various kinds of regular objects like biscuit ,pies,chocolate,bread,instant noodles,moon cake,drug,daily appliances,industrial parts boxes,plats,etc.
Function description:
- Double transducer control, flexible bag length cutting, operator needn't to adjust the unloading working, saving time and saving films.
- Touchable human-machine operation, convenient and quick parameter setting.
- .Self diagnosis failure function, clear failure display.
- .High sensitivity optical electric color mark tracking AND digital input cut position which makes the sealing and cutting more accurate.
- .Separate PID control to temperature, suitable for various packing materials.
- .Rectangle type sealing device, firmer sealing, no wasting in mould sealing cutter.
- Terminal sealing device, more beautiful bag shape, improving products level.
- Stopping the machine in selected position, no sticking to the knife and no waste packing film.
- .Simple driving system, reliable working, convenient maintenance.
- .All the controls are achieved by software, convenient for function adjusting and upgrading.
Technical specification:
Model |
CB-450W |
Bag size |
L (100-450)×W (50-240)×H (10-90) mm |
Packing speed |
20-70 bag/min |
Max outer diameter |
≤Φ300 mm |
Max width of the packing film |
600mm |
Packing film thickness |
0.04-0.07mm |
Machine size |
(L) 3980×(W) 860×(H) 1580 mm |
Total power/voltage |
3.2KW/220VAC |
Gross weight |
960KG |
Optional device |
Air filling device |
Spare Parts machine:
Parts |
Tools |
||
Heat tube |
2 pcs |
Inner turret spanner |
1 set |
Solid relay |
1 pcs |
Monkey wrench |
1 set |
Knife (up & down) |
1 pairs |
Screwdriver |
1 set |
Printing ink roll |
3pcs |
Manual |
1 piece |
Package style:

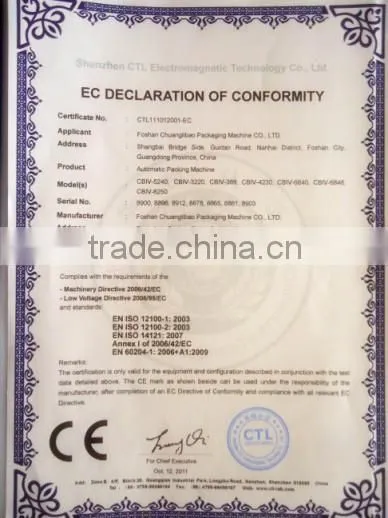

Certificated:
Pillow and vertical packing machine details:
