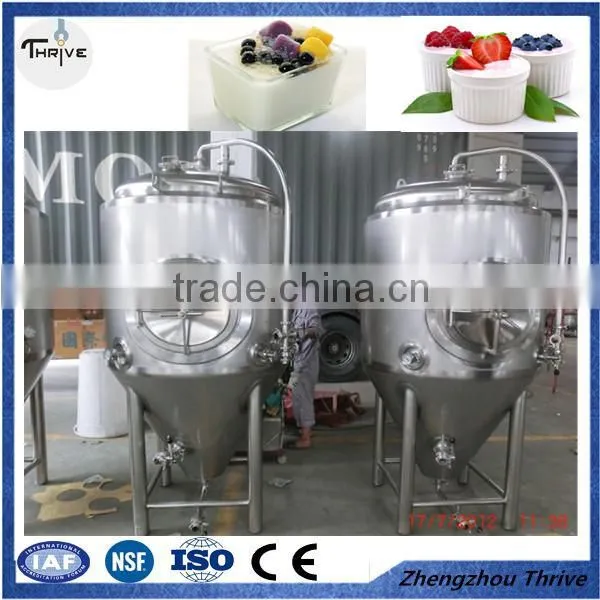

Stainless steel conical dimple jacket fermentation tanks
Descriptions of Stainless steel conical dimple jacket fermentation tanks
A: Main parts of Stainless steel conical dimple jacket fermentation tanks
1,Tank:The Stainless steel conical dimple jacket fermentation tank is mainly used to cultivate a variety of fermentation of various bacteria, sealing is good (to prevent the bacterial contamination)
2,In Stainless steel conical dimple jacket fermentation tank, there is a stirring slurry, which is used for the stirring of the fermentation process.
3,There is a sparger in the bottom of the Stainless steel conical dimple jacket fermentation tanks the air or oxygen needed for the growth of the bacteria.
4,There is a control sensor in the top of the Stainless steel conical dimple jacket fermentation tank, most commonly used is pH electrode and DO electrode. The sensor is used to monitor the changes in the DO and pH of the fermentation broth and to display and control the fermentation conditions.
B :Usage of Stainless steel conical dimple jacket fermentation tanks
1,The Stainless steel conical dimple jacket fermentation tank is widely used in dairy products, beverage, biological engineering, pharmaceutical, fine chemicals and other industries .
2,The conical dimple jacket fermentation tank is equipped with a sandwich, insulation layer, can be heated, cooling, heat preservation.
C:Classification of Stainless steel conical dimple jacket fermentation tanks
1,According to the equipment of the conical dimple jacket fermentation tank ,it can be divided into the mechanical stirring, ventilation, and the non - mechanical stirred tank.
2,According to the scope of use, the Stainless steel fermentation tank can be divided into laboratory small and medium fermentation tank, the pilot production of the fermentation tank, large-scale fermentation tank

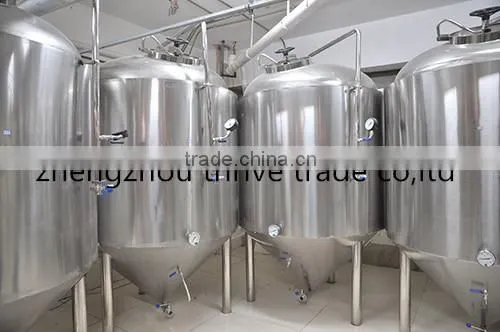

Pictures show about our factory and production process of Stainless steel conical dimple jacket fermentation tanks
Features of Stainless steel conical dimple jacket fermentation tanks
1,The Stainless steel conical dimple jacket fermentation tank is equipped with a sandwich, insulation layer, can be heated, cooling, heat preservation.
2,The Stainless steel fermentation tank and the filling head (or conical) were treated with spinning R angle processing, on the inner wall of the tank through mirror polishing treatment, no dead angle,
3,Fully enclosed design of the conical dimple jacket fermentation tank ensure material is always a pollution-free mixing, fermentation,
4,The Stainless steel conical dimple jacket fermentation tank is equipped with air breathing holes, CIP cleaning nozzles and manhole device.,
5,The Stainless steel conical dimple jacket fermentation tanks can be online CIP cleaning, SIP sterilization (121 degrees C/0.1MPa).
6, In accordance with the requirements of the health level of the design of the stainless steel fermentation tank, the structure design is very user-friendly, easy to operate. Stable transmission, low noise.
7,Suitable diameter ratio design, according to the need to customize the mixing device, energy saving, mixing and fermentation effect is good, corrosion resistance, strong productivity, easy cleaning and operation
8,Inside Stainless steel conical dimple jacket fermentation tanks ,surface is a mirror polishing treatment (roughness Ra≤0.4µ m).
The import and orifice, mirror, into the hole process hole and the inner tank welding place were the stretch flanging process arc transition, smooth and easy to clean no dead angle, ensure the reliability and stability of the production process, comply with the "GMP" and other regulatory requirements.
9, Materials of the stainless steel conical dimple jacket fermentation tanks are imported 316L, SUS304 composition.
Specifications of Stainless steel conical dimple jacket fermentation tanks
Basic and main technical data of stainless steel conical dimple fermentation tanks
Basic data:
Effective volume:200L-10000L
Processing customization :yes
Scope of application: Beverage shop equipment
Power:20KW
Raw material : 304 Stainless Steel
Condition : new
Voltage:220/380v
Technical data :
Model |
electric power
|
mounting dimensions (mm) |
Weight (kg) |
Size (mm) |
Agitator speed |
heating area(m2 ) |
Stirring power (KW) |
Operating pressure (mpa) |
300L |
20 |
1140-1140-1900 |
150 |
Φ800*600*2 |
36r/min |
1.6 |
0.55 |
0.09 |
400L |
20 |
1240-1240-1900 |
180 |
Φ900*600*2 |
36r/min |
1.6 |
0.55 |
0.09 |
500L |
20 |
1400-1400-1950 |
220 |
Φ1000*650*3 |
36r/min |
2.5 |
0.55 |
0.09 |
600L |
20 |
1400-1400-2050 |
250 |
Φ1000*750*3 |
36r/min |
2.5 |
0.55 |
0.09 |
700L |
24 |
1400-1400-2200 |
280 |
Φ1000*900*3 |
36r/min |
2.5 |
0.75 |
0.09 |
800L |
24 |
1500-1500-2150 |
320 |
Φ1100*850*3 |
36r/min |
4.0 |
0.75 |
0.09 |
900L |
24 |
1500-1500-2250 |
350 |
Φ1100*950*3 |
36r/min |
4.5 |
0.75 |
0.09 |
1000L |
24 |
1600-1600-2200 |
380 |
Φ1200*900*3 |
36r/min |
4.5 |
0.75 |
0.09 |
If you are interested in the fermenter of various milk, juice and beer and want to get further information,pleas feel free to contact me ,I will reply with you in time.
Contact person:Alisa
Tel:0086-0371-56095598
Skype: thrive003
QQ number: 514938354
Packing : The stainless steel conical dimple jacket fermentation tank is putted in strong iron sheet case or wooden case.
Delivery time : we will send the conical dimple jacket fermentation tanks within 3-15 working days after receiving the down payment.
