Specifications
screw ground source heat pump1)central air conditioner
2)heating+cooling+hot water
3)high efficiency
4)energy saving,CE&ISO
standard screw ground source heat pump
LUTE Heat pump central air conditioning system
A. LUTE brand---china famous brand
B. Adopt import advanced American technology
C. Using world famous accessories as compressor etc
D. Designed by ourselves, own tens of design patents
E. Most energy saving and lowest running charge
F. Adopting environmental protection refrigerant as R134A, R22, R407C etc
G. Advocacy the government Energy-saving and emission-reduction policy
H. Apply for kinds of buildings for cooling, heating and making hot water
I.Most Advanced Testing and Inspection System and We Promise that Each Unit will Be Tested Over 48hours to Be Proved Qualified
J. We Solemn Promise Quick After Service and Very Priced with Highest Quantity

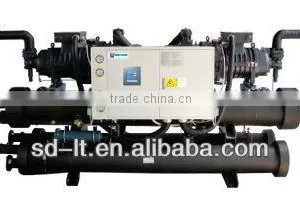

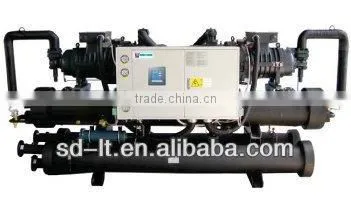

Standard Screw Ground Source Heat Pump(Model LTLHM(R))
1.Standard Screw WSHP
2.Cooling Capacity: 130-3240KW
Refrigerant Condition:Chilled water inlet temperature 12°C, outlet water temperature 7°C
Cooling water inlet temperature 18°C, outlet water temperature29°C
3.Heating Capacity: 142-2632KW
Heating Capacity:Hot water temperature inlet 40°C, outlet water temperature is 45°C
Cooling water inlet temperature 15°C, outlet water temperature 7°C
4.Wide range of application
Apply for radiant floor, radiator, fan coil units etc end form for heating and cooling and also can make clean hot water.
5.Green
The pollution-free environment-friendly refrigerant, run-time without waste discharge, heating can replace the boiler room, there is no combustion process, to avoid the smoke pollution, eliminating the need for cooling when the cooling tower, to avoid cooling noise and pollution tower mold, so that more fresh and beautiful environment.
6.Stable and reliable operation
Equipped with advanced protection units in various working condition. Piping used in all gas welding process, welding caused the elimination of oxides and impurities to improve unit cleanliness.
LUTE CENTRAL AIR CONDITIONER COMPANY WELCOME YOUR INQUIRY AND VIST
DETAIL TECHNICAL PARAMETERS AS FOLLOW TABLE
Notes:
1. Unit cooling capacity and compressor power consumption calibration conditions:
chilled water inlet temperature 12°C, outlet water temperature 7°C,
Cooling water inlet temperature 18°C, outlet water temperature is 29°C.
2. Unit heating capacity and compressor power consumption calibration conditions:
hot water temperature 40°C, outlet water temperature is 45°C
Cooling water inlet temperature 15°C, outlet water temperature 7°C.
3. When the cooling water temperature range is different from the calibrate mode, press the design performance curves to select their unit refrigeration / heat and power consumption;
4. Heat recovery can be added with requirements.
