Supper Energy Saving Geothermal Heat Pump

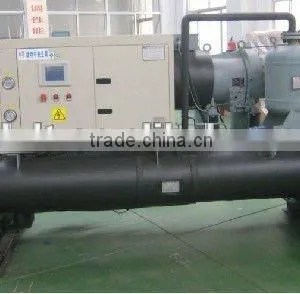

Supper Energy Saving Geothermal Heat Pump thumbnail-1

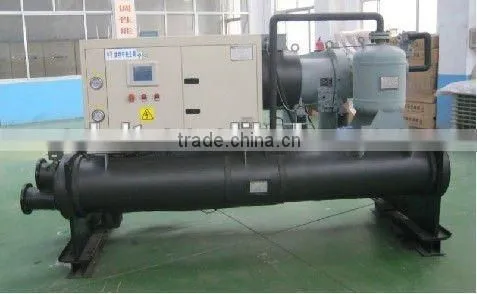

Supper Energy Saving Geothermal Heat Pump photo-1
US$ 10,000 - 200,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Air Conditioning
Place of Origin:
Shandong, China
Contact Supplier Request Quote Chat Now
Shandong Lvte Air Conditioning System Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, Air Conditioning
Place of Origin Shandong, China
Brand Name LYTTE or OEM service-geothermal heat pump, LYTTE or OEM Series
Model Number LTMLH(R)-GEOTHERMAL HEAT PUMP
Operating Voltage 380/400 VAC
Mounting Floor Standing
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Detailed Product Description
Geothermal Heat Pump
-Energy Saving, COP 6.0
-Water to Water Heat Pump
-Ground Source Heat

Supper Energy Saving Geothermal Heat Pump

Model No.: LTMLH(R)-070 TO LTMLH(R)-1000

Model Design:

1.Cooling Capacity Testing Working Condition: User Side Chilled water inlet/outlet 12°C/7°C;Source water side inlet/outlet 18°C/29°C;

2.Heating Capacity Testing Working Condition:User Side hot water inlet/outlet 40°C/45°C;Source water Side inlet/outlet 15°C/7°C;The max hot water temperature output 65°C(Refrigerant R134a).

Features:

Competitive Advantages:

Flooded evaporator with the dry evaporator make COP increased by 1.5. The latest threads and efficient heat exchange tube make heat transfer coefficient over normal heat exchange tubes of 1.3. times. It Can take ground water, surface water (rivers, lakes, sea) and soil as air conditioning heating or cooling source for the floor radiant, radiator, fan coil units and other end of the form of heating, cooling. Free living hot water if asked.

Features:

1.5: 6 tooth gear design with the world famous twin-screw compressor, small vibration, low failure rate, advanced energy control method which can achieve a paragraph or unwarranted energy regulation; injection compression, noise seal.

2.Control device using the world famous, PID regulation, completely eliminate the stuck rotor or motor overheating; high temperature and low pressure exhaust temperature monitor and control access to water, water, antifreeze, water temperature and other multi-protection, to ensure the safe operation of generating units; large-screen color touch screen, has the status display, parameter setting, energy control, fault diagnosis and control of such a multi-function, convenient man-machine dialogue.  Comes with RS485 communication port.

3.Optimal design can improve a wider range of cooling capacity. Part load performance is good. New electronic throttle device, achieve null process control. Part of the load, the double-press alternately run and longer life.

4.Application of places: hotels, restaurants, hospitals, office buildings, theaters, stadiums, residential quarters, textile, food, medicine, metallurgy, chemicals and boiler works.

Details Model Specifications:

Unit Model  LTMLH(R)- 70 85 110 150 185 220 260 310 375 440 515 615 750 885 1000
Heating Capacity(KW) 260 317 408 567 694 816 951 1134 1388 1632 1902 2268 2777 3264 3805
Cooling Capacity(KW) 247 300 387 536 657 775 900 1072 1315 1550 1800 2145 2630 3100 3600
Electrical
Parameter		 Power  3/N/PE  AC380V/220V   50HZ
Input  Cooling kW 42.6 52.1 66.8 92 112.3 130.2 151.3 184 224.6 260.4 302.6 368 449.2 520.8 605.2
Power Heating kW 58.2 71.1 91 123.3 150.4 174.4 199.1 246.6 300.8 348.8 398.2 493.2 601.6 697.6 796.4
Control System Dedicated heat pump controller,PID regulator,color touch screen
Energy Regulation % 25——100
Security Overload, high voltage, wrong Phase, water, oil, antifreeze switch, high temperature protection
Compressor Type Imports of semi-closed screw compressors(Italy Refcomp, or Germany Bizter etc.)
Quantity set 1 1 1 1 1 1 1 2 2 2 2 4 4 4 4
Refrigerants Refrigerant Environmental protection Refrigerants R134a, R410a
Charge kg 100 120 155 215 265 310 360 430 525 620 720 858 1050 1240 1440
Evaporator Type High Efficient flooded type heat exchanger
Water  Cooling m3/h 50 60 77 107 132 155 180 215 262 310 360 429 525 620 720
Flow Heating m3/h 26 32 41 57 70 82 95 114 139 165 191 228 279 329 382
Pressure Loss Kpa ≤80 ≤90
Interface Dim. DN(mm) 100 125 125 125 150 150 150 150 150 200 200 125×2 200×2 200×2 200×2
Condenser Type Efficient shell and tube heat exchanger
Water  Cooling m3/h 26.3 32 41 57 70 82 95 114 139 165 191 228 279 329 720
Flow Heating m3/h 49.5 56 77 107 132 155 180 215 262 310 360 429 525 620 382
Pressure Loss Kpa ≤80 ≤90
Interface Dim. DN(mm) 100 125 125 125 150 150 150 150 150 200 200 125×2 200×2 200×2 200×2

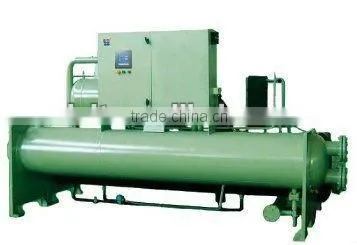

Acctual Products:

Supper Energy Saving Geothermal Heat Pump
