2 ton industrial horizontal muti-fuel steam boiler
Boiler specification
Our Advantage
l Increasing the radiation heating furnace area,reducing the size of boiler,reducing NOX emission.
l We have a multi-level sealed approach to ensure that no leakage breathing.
l The horizontal structure has adequate heating, heat transfer is full ,load changes operating is stable in boiler.

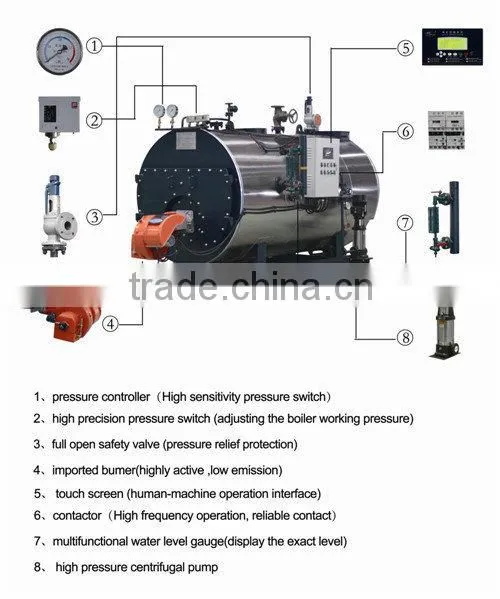

l Automatically operation, PLC is control and display the equipment operating parameters and fault alarm by sound and light.
Technical parameters
Type |
WNS2- 1.0-Y.Q |
|||
Project |
Unit |
|||
Rated evaporation |
t/h |
2 |
||
Rated working pressure |
MPa |
1.0 |
||
Saturated steam temperature |
°C |
184 |
||
Fuel consumption |
Light diesel oil |
Kg/h |
140 |
|
Natural gas |
Nm3/h |
160 |
||
Liquefied gas |
Nm3/h |
60 |
||
Pipeline gas |
Nm3/h |
340 |
||
Infall caliber |
DN |
40 |
||
Main valve caliber |
DN |
80 |
||
Safety valve caliber |
DN |
40*2 |
||
Sewage valve caliber |
DN |
50 |
||

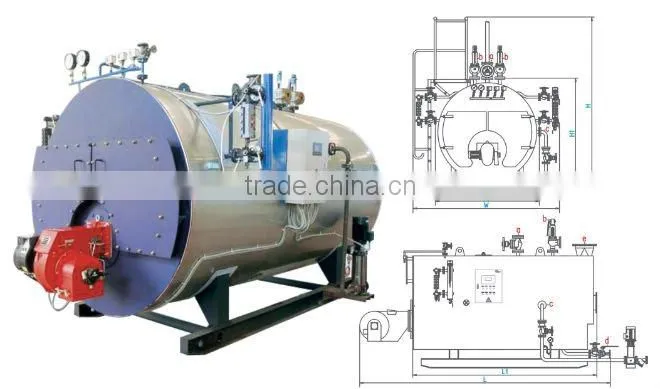

Overall size |
Length |
mm |
4800 |
|
Width |
mm |
2900 |
||
High |
mm |
3250 |
||
Weight |
kg |
7100 |
||
Certification
1.China High-tech Enterprise
2.Class B Boiler Manufacturing
3.ASME
4.IS9000:2008
5.Etc.

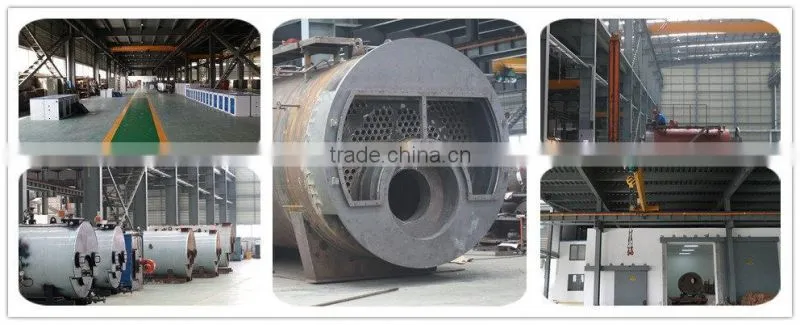

Factory
1. Wilford company is specialized in manufacturing and selling steam boiler for many years .
2.Our worker have experience to produce machines professional and skilled,so the machine workes well with high quality.
3.All parts of our machines are famous brand in China or in international,so it make sure our machine have high quality with long lifetime.
4. Our company provides 24 hours online services and technical supports for customers.
Customers
Contact information
