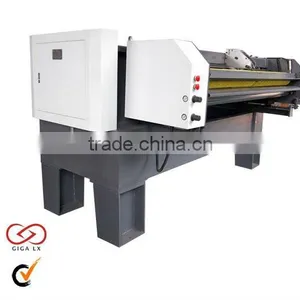

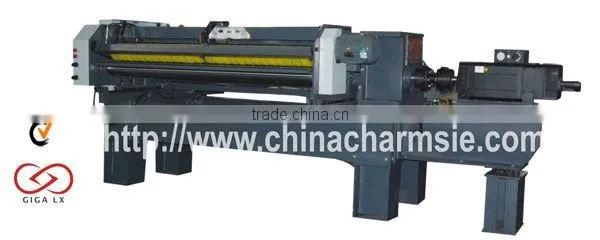

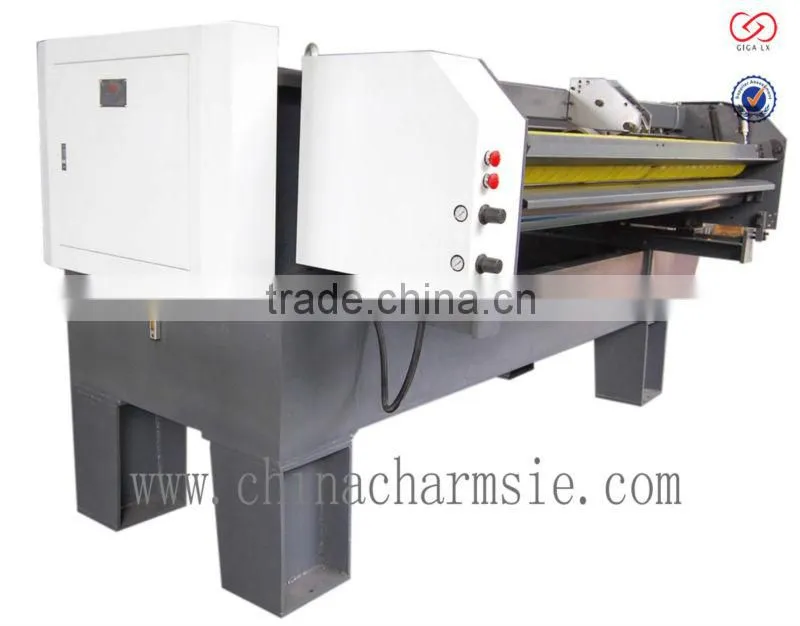

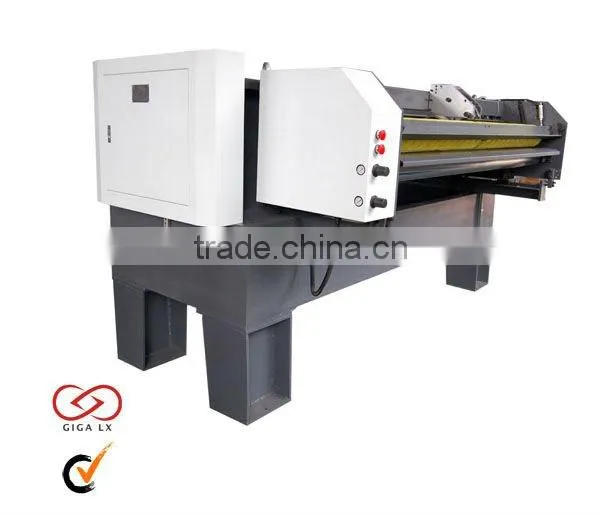

GIGA LXC NC Cutoff With Rotary Blade Corrugated Cardboard Carton Box Cutting Machine
Corrugated machine technical parameter
- Designed speed: 250 m/min Production speed 200m/min
Available max.width 2500 mm
Cutting precision (stable working) ≤+/- 1 mm
Oil pump self-circulating lubrication - The material of transmission gear: SCM21 alloy steel, quenched and processed, grinding cementite ,
- The hardness can reach HRC58-~ 60 degrees, the accuracy JIS1 grade -0 group.
- Adopt high-quality industrial computer or human-machine interface composed the host computer control system;
- AC servo motor drive, the drive adopts imported special servo drive control;
Can production management connections, change order without stopping machine automatically or manually; - Spiral knife, cutting with small force , high efficiency;
- Spiral blade made of special materials, the knife roller design is reasonable, long tool life;
- The design of mechanical structure is reasonable, nice mechanical appearance;
- Adopt sophisticated gear transmission, by forging, finishing machining and heat treatment process; small gear backlash , low noise, stable transmission;
- Corrugated cardboard machine and cardboard cutting machine and slitting machine also could be made in very good quality.
We provide loan to below business situation
1. The value of order over RMB 1 million (including 1 million).
2. Only for carton machine LX308N, LX-608CN LX707N or corrugated cardboard machine production line include LXC-180NN, LXC-220H1.8N models.
3. We accept O/A (Open account), it based on the credit level of buyer's bank credit report.
4. The details please consult with our sales department.
