Home > Electrical & Electronics > Electric Motor > DC Motor > 6v Coin Type or Column Type Small dc Vibration Motor
6v Coin Type or Column Type Small dc Vibration Motor
US$ 0.3 - 1.5
MOQ: 10000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
DONG HUI
Model Number:
RE-140S-13185-38
Payment & Shipping
Payment Methods:
Port of Shipment:
Shen zhen or Hong kong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DGA12-N30 24V dc Geared Motors for Power Door Lock Actuators From DH MotorUS$ 2.35 - 8.60MOQ: 10 Pieces -
DGA12-N30 dc Gear Motor for Power Door Lock Actuator From DH MotorUS$ 2.35 - 8.60MOQ: 10 Pieces
-
DGA12-N20 12v dc Gear Motor for Automatic Door Lock From DH MotorUS$ 2.35 - 8.60MOQ: 10 Pieces
-
3V Micro 10mm dc Gear Motor for Toy From DH MotorUS$ 1.5 - 3MOQ: 1000 Pieces
-
4.2v Small Electric dc Motor With Mini 8mm Plastic Gear MotorUS$ 6 - 12MOQ: 100 Pieces
Place of Origin
Guangdong, China
Brand Name
DONG HUI
Model Number
RE-140S-13185-38
Usage
Car, Electric Bicycle, Home Appliance, Other, Car, Electric Bicycle, Home Appliance, Toys,Electric comb, Music box
Certification
CCC, CE, ROHS, UL, VDE, Other, CCC, CE, ROHS, UL, VDE, ISO:9001:2000
Type
Micro Motor
Torque
4.5g.cm
Construction
Permanent Magnet
Commutation
Brush
Speed(RPM)
800rpm no load
Continuous Current(A)
0.05A no load
Output Power
0.16w
Voltage(V)
3
Efficiency
IE 1
Specifications
6v Coin type or column type small dc vibration motor1:Dia:21*25mm
2, CW or CCW optional
3, Tailor-made specs
Specifications
DC low cost motor for musical pocket watch (RE-140RA):
1:Dia:21*25mm
2, CW or CCW optional
3, Tailor-made specs
DC low cost motor for musical pocket watch(RE-140RA)

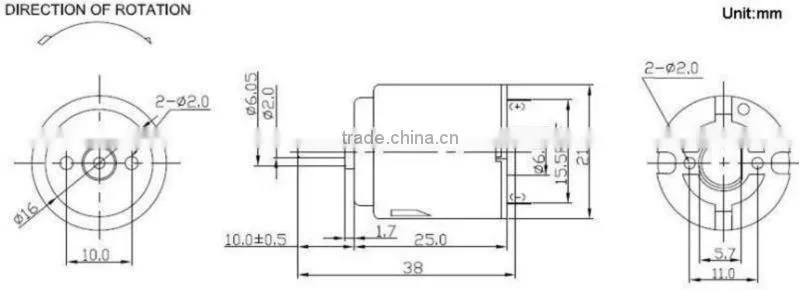

Motor Shape:Round
Outline Dimension(DxL):21x25.0mm
Model no.:RE-140S-13185-38
Working voltage: 3V
Direction of rotation: CW& CCW
Operating Temerature range: -5-50degrees
Operating Humidity: 30-95%
Rated Speed: 5000RPM
Rated Current:150mA
