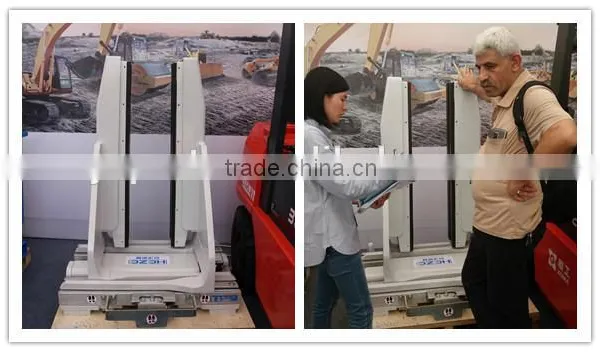

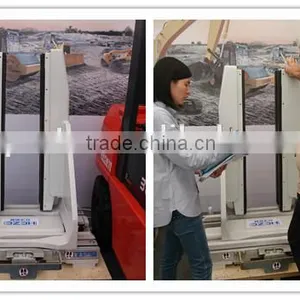

Forklift Spare Parts of Brick Clamp
1. Applications:
Forklift Concrete Block Clamp can efficiently handle various types of solid,regular cubic goods under normal temperature.Meeting the needs of industries from construction to metallurgy for damage free roll handling with maximum efficiency.
2. Features:
Proven durable T-beam arm aluminium frame construction.
Superior arm-slide bearing for extended service life.
Regenerative hydraulic valving for optional arm speed.
Durable contact pads,reliable clamping.
Excellent driver visibility.
|
Capacity/ Load Center |
Type |
Mounting Class |
Opening Range |
Arm Height |
Arm Length |
Frame Width |
Overall Height |
Vertical Center of Gravity |
Weight |
Effective Thickness |
Horizontal Center of Gravity |
| E | H | L | B | A | VCG | ET | HCG | ||||
| (kg@mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg) | (mm) | (mm) | ||
| 2700@500 | CKS30D-001A | II | 290-1610 | 128 | 1100 | 1016 | 710 | 220 | 500 | 145 | 220 |
| 2700@500 | CKS30D-002A | II | 290-1610 | 242 | 1100 | 1016 | 710 | 220 | 550 | 145 | 220 |
| 2700@500 | CKS30D-003A | II | 290-1610 | 128 | 1000 | 1016 | 710 | 220 | 490 | 145 | 211 |
| 2700@500 | CKS30D-004A | III | 290-1610 | 128 | 1100 | 1016 | 710 | 220 | 500 | 152 | 220 |
| 2700@500 | CKS30D-005A | III | 290-1610 | 242 | 1100 | 1016 | 710 | 220 | 550 | 152 | 220 |
| 2700@500 | CKS30D-006A | III | 290-1610 | 128 | 1000 | 1016 | 710 | 220 | 490 | 152 | 220 |
| 2700@500 | CKS30D-007A | III | 290-1610 | 242 | 1400 | 1016 | 710 | 220 | 650 | 152 | 250 |
3.Options
Custom opening ranges
Various material facing arm
Various mounting classes available
Slip-on arm
Load backrests
4.Packages & Delivery
5.Installation
