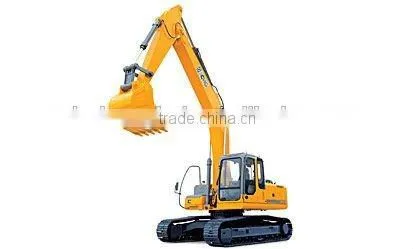

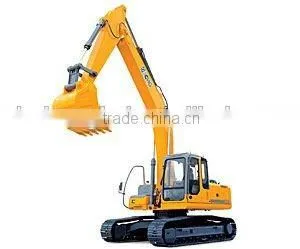

XCMG Excavator XE230C

Name: XCMG Excavator XE230C
Brand: XCMG
SKU: 112296375

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

XCMG

Model Number:

XE230C

Shandong Zhongkai Machinery & Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name XCMG

Model Number XE230C

Condition New

Moving Type Crawler Excavator

Operating Weight 23520kg

Bucket capacity 1.0 m3

Maximum Digging Height 9,670mm

Maximum Digging Depth 6,920mm

Machine Weight 23520kg

Max Digging Radius 10,270mm

Rated Speed 5.5/3.5km/h

After-sales Service Provided Engineers available to service machinery overseas

XCMG Excavator XE230C

Model			XE230C
Bucket capacity		m3	1
Standard bucket width		mm	1,260
Operation weight		kg	23,520
Dimension(in transportation)	Overall length	mm	10,160
	Overall width	mm	2,990
	Overall height	mm	3,050
	Min. clearance	mm	485
Engine	Model		CC-6BG1TRP
	Total displacement	L	6.494
	Rated output power	KW/rpm	125/2100
Digging performance	Max. digging height	mm	9,670
	Max. dumping height	mm	6,795
	Max. digging depth	mm	6,920
	Max. vertical digging depth	mm	6,165
	Max. digging radius	mm	10,270
	Boom deflection angle	°
	Min. slew radius	mm	3,870
	Min. rear slew radius	mm	2,940
	Bucket digging force	kn	163
Track type			Steel
Track width		mm	600
Travel System	Track length	mm	4,255
	Wheel base	mm	3,462
	Track gauge	mm	2,390
	Travel speed (Gear I/II)	km/h	5.5/3.5
	Gradeability	%	70
Slew speed		rpm	12.1
Bulldozing plate	Bulldozing plate width	mm
	Bulldozing plate height	mm
	Lifting distance	mm
Hydraulic pump type			Variable pump×2
Slew motor type			Piston hydraulic motor
Travel motor type			Piston hydraulic motor
Fuel tank capacity		L	400
Hydraulic oil tank capacity		L	240
