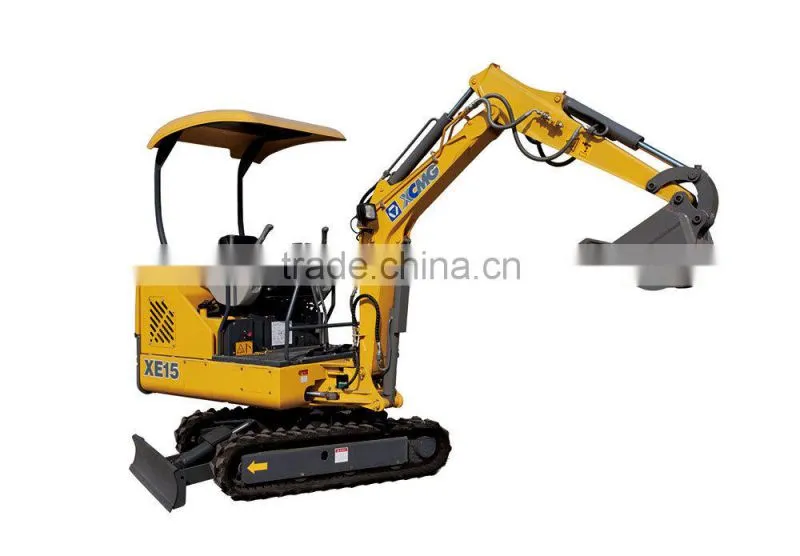

XCMG 1.6 Tons Mini Excavator XE15 for Sale

Name: XCMG 1.6 Tons Mini Excavator XE15 for Sale
Brand: XCMG
SKU: 112296603

US$ 1 - 30,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

XCMG

Model Number:

XE15

Shandong Zhongkai Machinery & Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

CHINA PORT

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name XCMG

Model Number XE15

Condition New

Moving Type Crawler Excavator

Operating Weight 1640 kgs

Bucket capacity 0.044m3

Maximum Digging Height 3605 mm

Maximum Digging Depth 2310 mm

Machine Weight 1640 kgs

Max Digging Radius 3905 mm

Rated Speed 4.4/2.4 km/h

Certification ISO

After-sales Service Provided No overseas service provided

XCMG mini excavator machine XE15

Model		unit	XE15
Operating weight		kg	1640
Standard bucket capacity		m3	0.044
Engine	Engine Model	/	3TNV82A
	Direct injection	/	√
	Four strokes	/	√
	Water cooling	/	√
	Turbo charged	/	×
	Air to air intercooler	/	×
	No. of cylinders	/	3
	Rated power/speed	kw/rpm	16.5/2200
	Max. torque/speed	N.m	86.5/1320
	Displacement	L	1.33
performance	Travel speed	km/h	4.4/2.4
	speed	r/min	11
	Max. gradeability	/	30
	Ground pressure	kPa	23.8
	Max.Bucket digging force	kN	13.9

	Max.traction force	kN	12.2
hydraulic system	Main pump	/
	Rate flow of main pump	L/min	2*19.8+14.1
	Max pressure of prime relief valve	MPa	24
	Max pressure of travel system	MPa	21
	Max pressure of swing system	MPa	18
	Max pressure of pilot system	MPa	3.3
Oil capacity	Fuel tank capacity	L	20
	Hydraulic tank capacity	L	29
	Engine lubrication	L	5.5
Overall dimension	Overall length	mm	3760
	Overall width	mm	1080
	Overall height	mm	2400
	Overall width of upperstructure	mm	1080
	Track length	mm	1578
	Overall width of undercarriage	mm	1080
	crawer width	mm	230
	Dozer black(width/height)	mm	1080×225
	Tumbler distance	mm	1217
	Crawer gauge	mm	850
	Clearance under counter weight	mm	472
	Ground clearance	mm	180
	Min.tail swing radius	mm	1190
operating range	Max. digging height	mm	3615
	Max. dumping height	mm	2480
	Max. digging depth	mm	2320
	Max. vertical wall digging depth	mm	1520
	Max. digging reach	mm	3915
	Min. swing radius	mm	1675
	Max.dozer lifting height	mm	220
	Max.dozer cutting depth	mm	240
	Angle of arm deflection	Degree	70/50
