China Crawler Excavator XCMG XE215CLL

Name: China Crawler Excavator XCMG XE215CLL
Brand: XCMG
SKU: 112296751

US$ 1 - 150,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

XCMG

Model Number:

XE215CLL

Shandong Zhongkai Machinery & Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

CHINA PORT

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name XCMG

Model Number XE215CLL

Condition New

Moving Type Crawler Excavator

Operating Weight 22350 kgs

Bucket capacity 0.5

Maximum Digging Height 13250 mm

Maximum Digging Depth 11690 mm

Machine Weight 22350 kgs

Max Digging Radius 10240 mm

Rated Speed 5.5/2.8 km/h

Certification ISO

After-sales Service Provided No overseas service provided

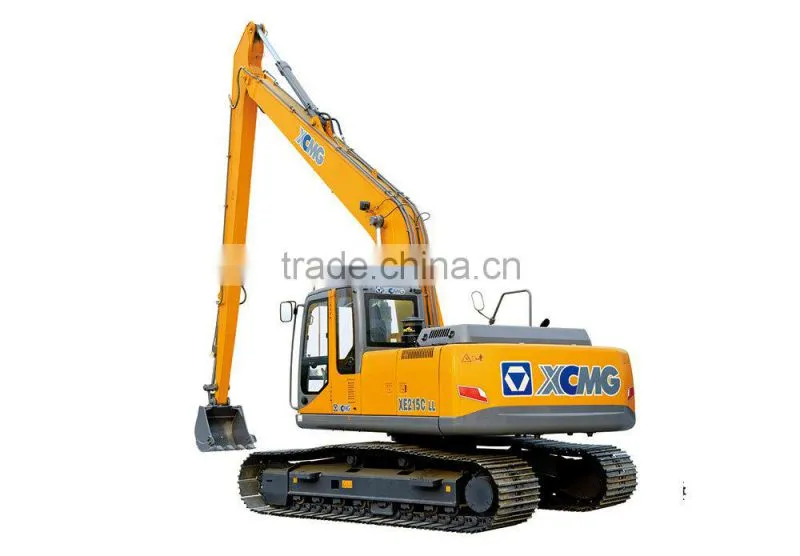

China crawler excavator XCMG XE215CLL

Model		Unit	XE215CLL
Operating weight		kg	22350
Standard bucket capacity		m³	0.5
Engine	Engine Model	/	ISUZU BB-6BG1TRP
	Direct injection	/	√
	Four strokes	/	√
	Water cooling	/	√
	Turbo charged	/	√
	Air to air intercooler	/	×
	No. of cylinders	/	6
	Rated power/speed	kw/rpm	106.5/1950
	Max. torque/speed	N.m	551/1600
	Displacement	L	6.494
The main performance	Travel speed	km/h	5.5/2.8
	Swing speed	r/min	12.2
	Max. gradeability	/	≤35
	Ground pressure	kPa	36.2
	Max.Bucket digging force	kN	78.7
	Max.arm crowd force	kN	40
	Max.traction force	kN	179
Hydraulic system	Main pump	/	2 Plunger pump
	Rate flow of main pump	L/min	2×206
	Max pressure of prime relief valve	MPa	32.3/34.3
	Max pressure of travel system	MPa	34.3
	Max pressure of swing system	MPa	28
	Max pressure of pilot system	MPa	3.9
Oil capacity	Fuel tank capacity	L	360
	Hydraulic tank capacity	L	220
	Engine lubrication	L	25
Overall dimensions	A Overall length	mm	12050
	B Overall width	mm	3190
	C Overall height	mm	3150
	D Overall width of upperstructure	mm	2710
	E Track length	mm	4255
	F Overall width of undercarriage	mm	3190
	G Crawer width	mm	800
	H Track length on ground	mm	3462
	I Crawer gauge	mm	2390
	J Clearance under counter weight	mm	1060
	K Ground clearance	mm	470
	L Min.tail swing radius	mm	2750
Working range	A Max. digging height	mm	13250
	B Max. dumping height	mm	10942
	C Max. digging depth	mm	11690
	D 8inch horizonal digging depth	mm	---
	E Max. vertical wall digging depth	mm	11200
	F Max. digging reach	mm	15394
	G Min. swing radius	mm	4835
	Angle of arm deflection	Degree
